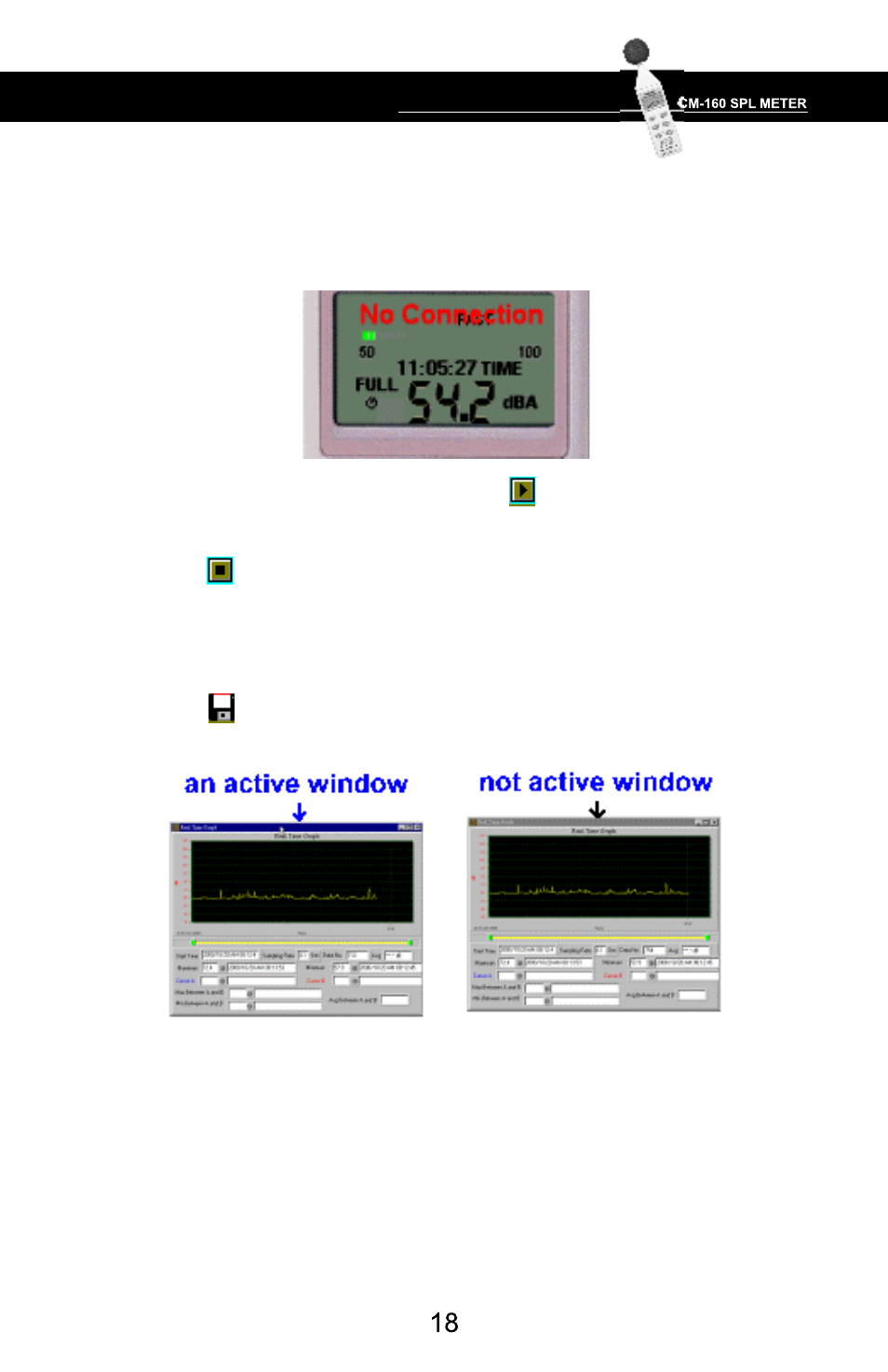

3. If the connection is successful the panel will display the same
value as the Sound Level Meter. If there is a failure to connect the
meter with the PC, the display will read "No Connection" in the
Test Link Se322 panel window.
4. When the connection is successful, click to start recording
real time data, There will be a waveform displayed in the Real
Time Graph Window.
5. Click to start recording.
(2.) How to save the recorded real time data to a file.
1. Click the graph window you want to save and the graph window
will become active. Choose File | Save the from main menu or
click from the tool bar .
2. There will be a save dialog window where the file name and type
can be specified. There are three types of files that can be
chosen: binary file (*.ghf), text file (*.txt) and EXCEL format
file (*.csv). The *.ghf file uses much less disk space to save the
data than the other two file formats, but it can only be used in Test
Link SE322. The text file can be opened by Test Link SE322 and
any other word processor program like Word, Notepad, etc. EXCEL
format file can be opened by Test Link SE322 and Microsoft
EXCEL.
