DC Signal
AC Signal Ground

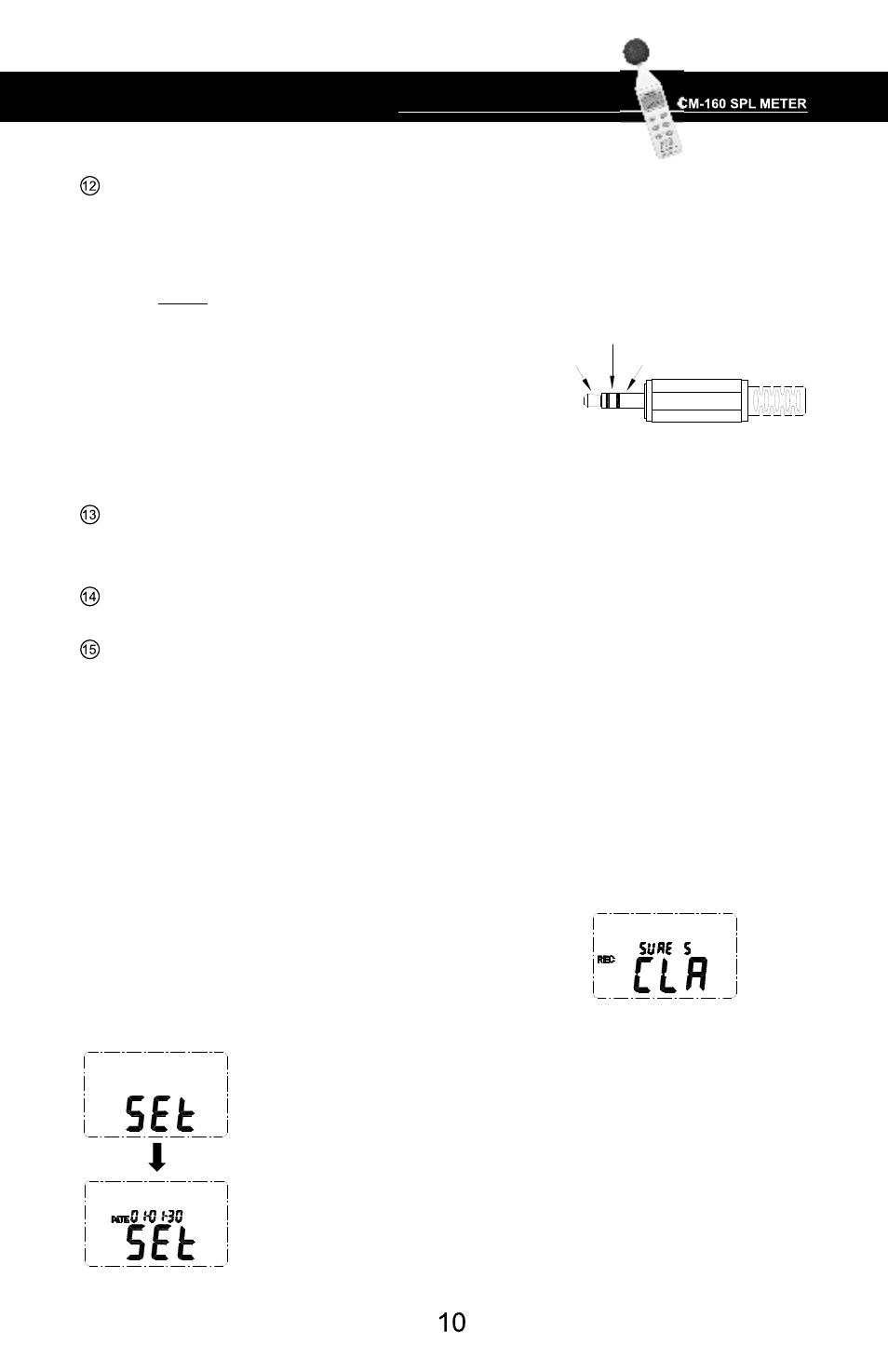

Signal output terminal
AC: 1 Vrms Corresponding to each range step.
Output impedance = 100Ω
Output signal by standard 3.5mm mini stereo jack with signal on tip.
Note: On “Auto” level range, output signal is Auto select on “Lo” or
“Med” or “Hi” level range.
DC: Output: 10mV/dB
Output impedance = 1KΩ
Output signal by standard 3.5mm mini stereo jack with signal on ring.
External DC 9V power supply terminal
For connection with AC adapter.
Tripod mounting screw.
Battery Cover
VII. DATA LOGGER CLOCK & INTERVAL SETUP
DataLogger: Ÿ
Clock Setup :
When the " REC" button is pressed, the meter will start
recording. Pressing the " REC" button again will stop
recording. If you want to clear the memory, power off the
meter. Press and hold the “
REC” button and press the
power button and hold it for at least 5 seconds. The LCD will
show " CLR" and “SURE” to clear the memory.
1: press and hold the“ A/C” button and then power up the
meter:
2: press the“
MAX/MIN”(clock) button:
3: Press " REC" p or " LEVEL" q to increase or decrease
the number. Press the “ MAX/MIN”(clock) button to
adjust the next item. The adjusting order is year Z month
Z day Z hour Z minute. Press the “ MAX/MIN” (clock)
button to finish adjusting. If you want to abort during a
setup process, press the power button to cancel.
