Advanced Configuration

~ Presets

Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760

If a preset is flagged as “On,” nothing will happen when the preset is

executed again because the system knows it has already been run. This prevents

any manual adjustments that are made during the course of the meeting (gain,

muting, etc.) from being lost.

Room combining example

In the room combining scenario depicted in Figure 4.10, there are four possible

room configurations using six presets (P1–P6). In order to change configurations

without disturbing meetings in progress, a macro must be created for each

configuration that tells the system what to do with each of the six presets.

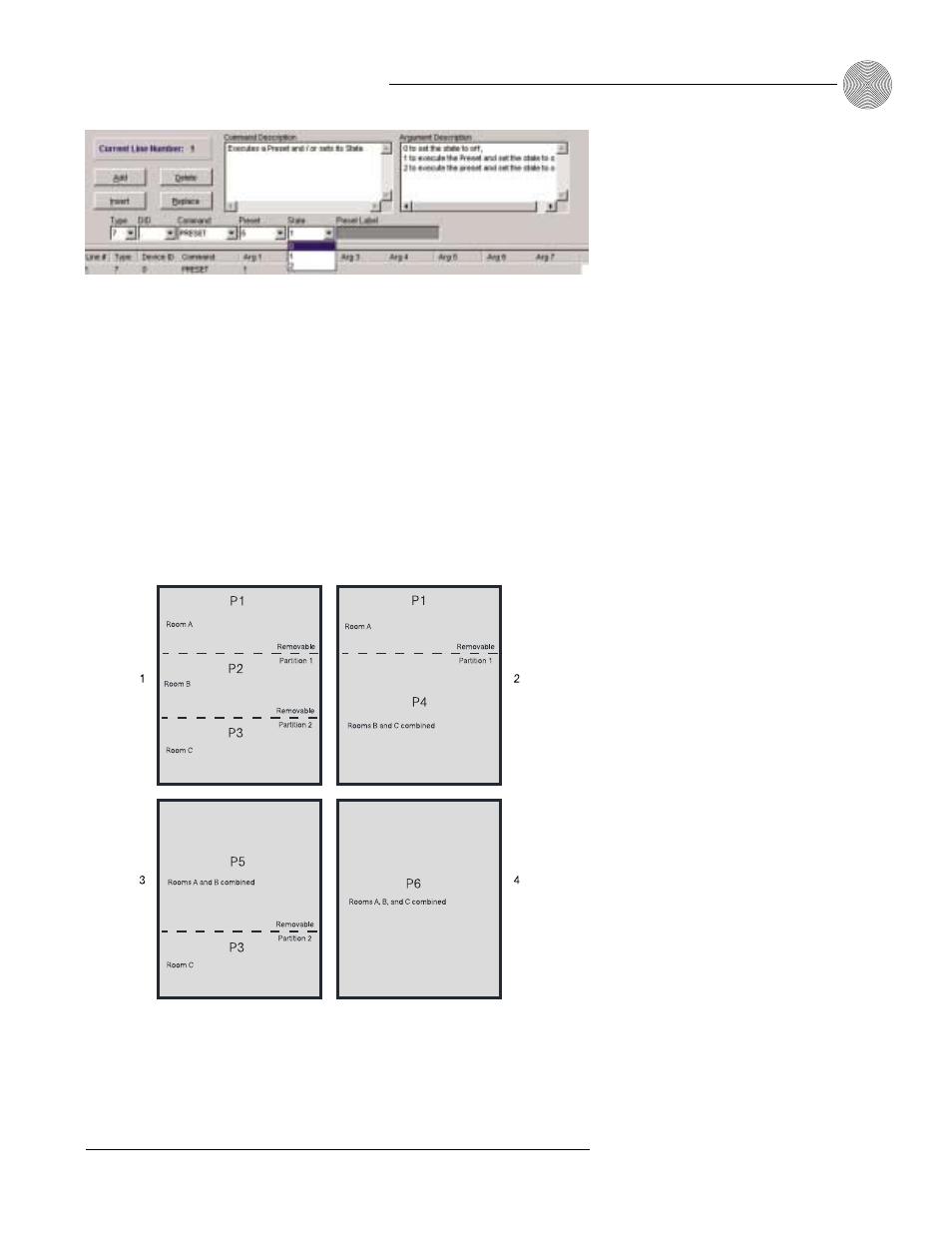

Figure 4.9. Assigning a state to a preset command in the Macro Editor

You can also create a
macro to set all preset
flags to 0 which ensures

all presets are ready to run again.

✍

Figure 4.10. Room combining diagram
