Inputs 1–8
To open the Inputs 1–8 configuration window, click the Inputs 1–8 button on the
Flow Screen. The In 1–8 button on the Matrix Screen will also open this window.
These inputs are balanced and support both mic and line levels.
To select an input channel, click a blank area in the input pane. If you click
on the input label, a secondary window will open allowing you to rename the input.
The background color for the selected input channel will be light gray. The many
configurable properties of mic inputs are defined in this section.
Mute
Mute mutes the input channel. The light on the button illuminates red when Mute is
activated. Default is Off (unmuted).
AGC/SL
AGC/SL opens the Automatic Gain Control/Speech Leveler window. If Speech
Leveler or AGC is enabled, the light on the button illuminates green. Default for both
is off.
Inputs and Outputs

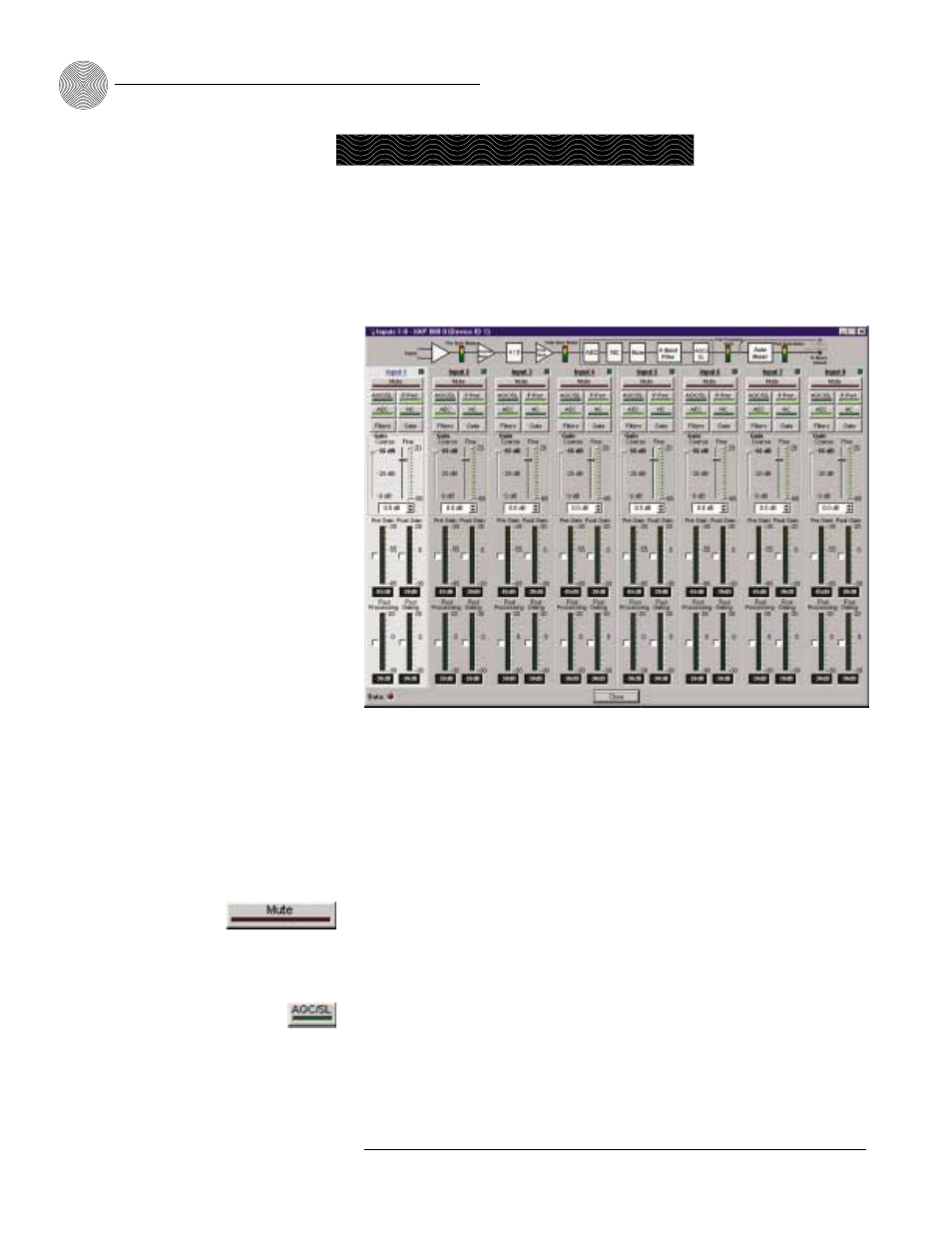

Figure 3.25. Inputs 1–8 configuration window
Inputs 1–8 accept either
microphone (-55, -25dB)
or line level (0dB) inputs. ✍
ClearOne recommends
using the XAP to mute
mics instead of using the
mute provided by some
microphones. External muting
devices limit the effectiveness of
Gentner D.E.C. To use the mute
button on a microphone, contact
ClearOne Technical Services.
✍
