49 System Configuration ~ Processing
Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760
Processing A–H
There are eight processing blocks in the XAP 800, each with filters, compressors, and
delay to provide pinpoint audio configurations. To open the Processing configuration
window, click the Processing A–H button on the Flow Screen. The To and From
Processing buttons on the Matrix Screen will also open this window.
To select a processing block, click a blank area in the Process pane. If you
click on the Process label, a secondary window will open allowing you to rename
the processing block. The background color for the selected processor will be light
gray. The configurable properties of these processors are defined in this section.
Mute
Mute mutes the processor. The light on the button illuminates red when Mute is
activated. Default is off (unmuted).
Processing

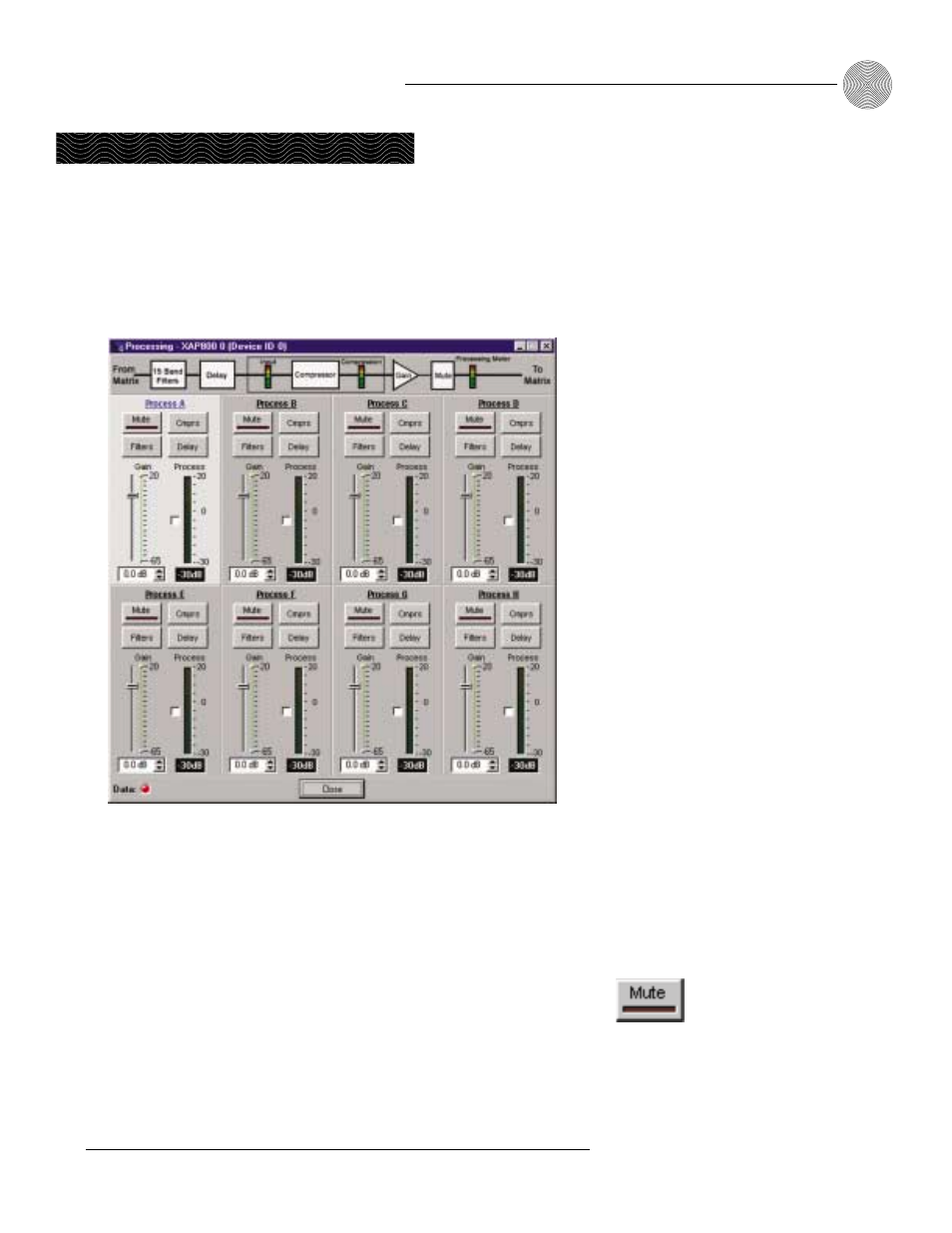

Figure 3.52. Processing window
ClearOne recommends
using the XAP to mute
mics instead of using the
mute provided by some
microphones. External muting
devices limit the effectiveness of
Gentner D.E.C. To use the mute
button on a microphone, contact
ClearOne Technical Services.
✍
