7
❏

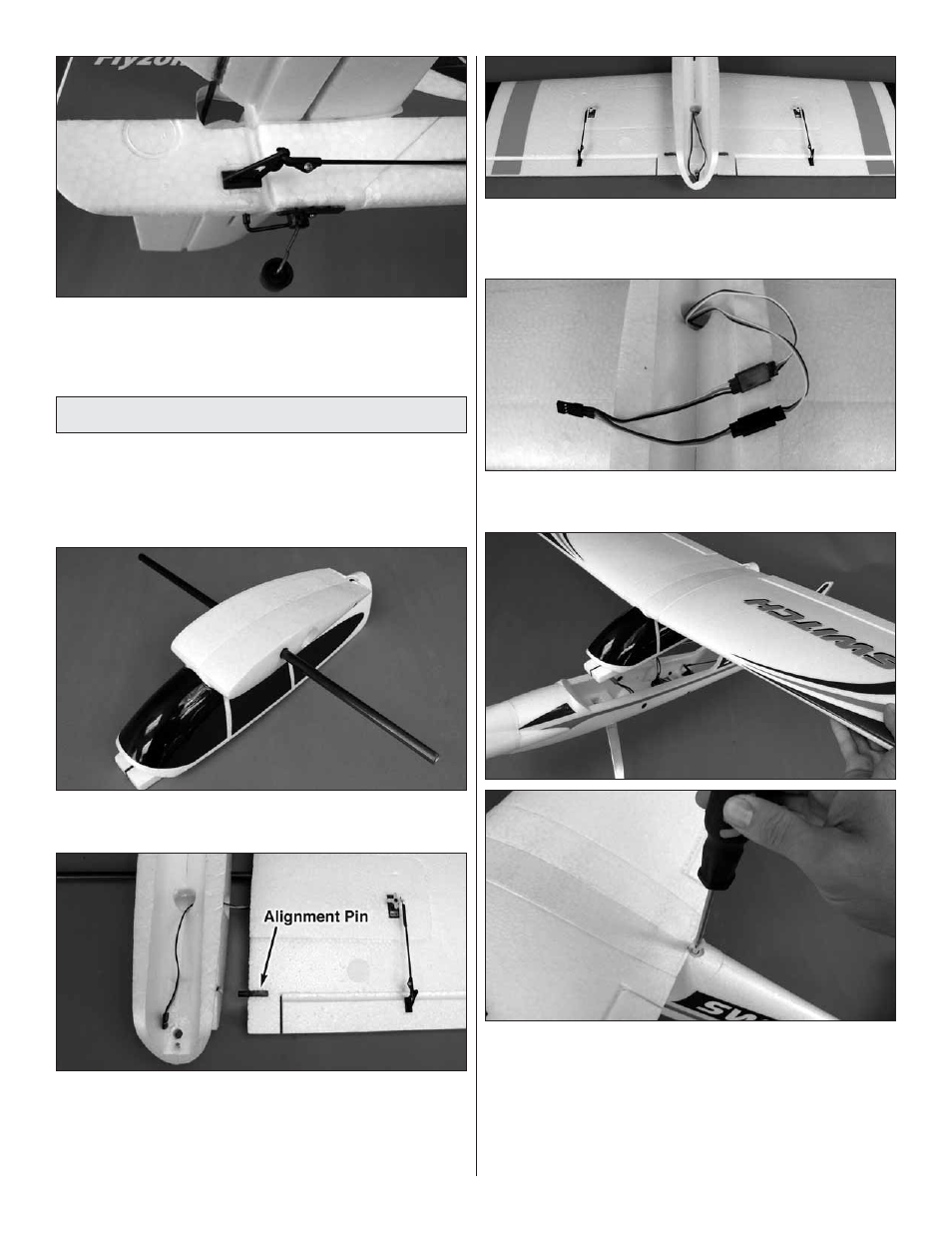

6. Insert the rudder pushrod into the adjustable clevis on
the rudder control horn and set the rudder to the neutral
position in the same manner as you did the elevators. Tighten
the screw in the adjustable clevis.
Do not over-tighten .
Setting Up the High Wing Confi guration
We recommend fl ying the Switch Trainer EP fi rst in the high
wing confi guration. The high wing position will provide some
self-recovery characteristics which will aid the beginning pilot
with straight and level fl ight. It will also make the orientation
of the airplane more visible at high altitudes.
❏
1. Slide the carbon wing joiner through the tube in the
high wing canopy hatch and center its position.
❏
2. Install one of the wing panels onto the wing joiner tube.
Feed the aileron servo lead through the hole in the center of
the canopy hatch. The alignment pin fi ts into the small tube
pre-glued in the canopy hatch. Press the joiner tube into the
wing until the magnet “clicks” into place.
❏
3. Install the other wing panel in the same manner.
Press the panels together against the hatch to ensure they
are fully seated.
❏
4. Connect the included Y-harness to the aileron
servo leads.
❏
5. Connect the Y-harness to channel 1 of the receiver.
Test fi t the canopy hatch onto the fuselage by inserting the
tongue at the front of the hatch into the pocket in the fuselage
and pressing the aft end of the hatch down in place. Secure
the hatch using the included wing bolt.
Note: The wing bolt
must always be installed and tightened every fl ight!
Forgetting this step will result in a very short fl ight.
