8
❏

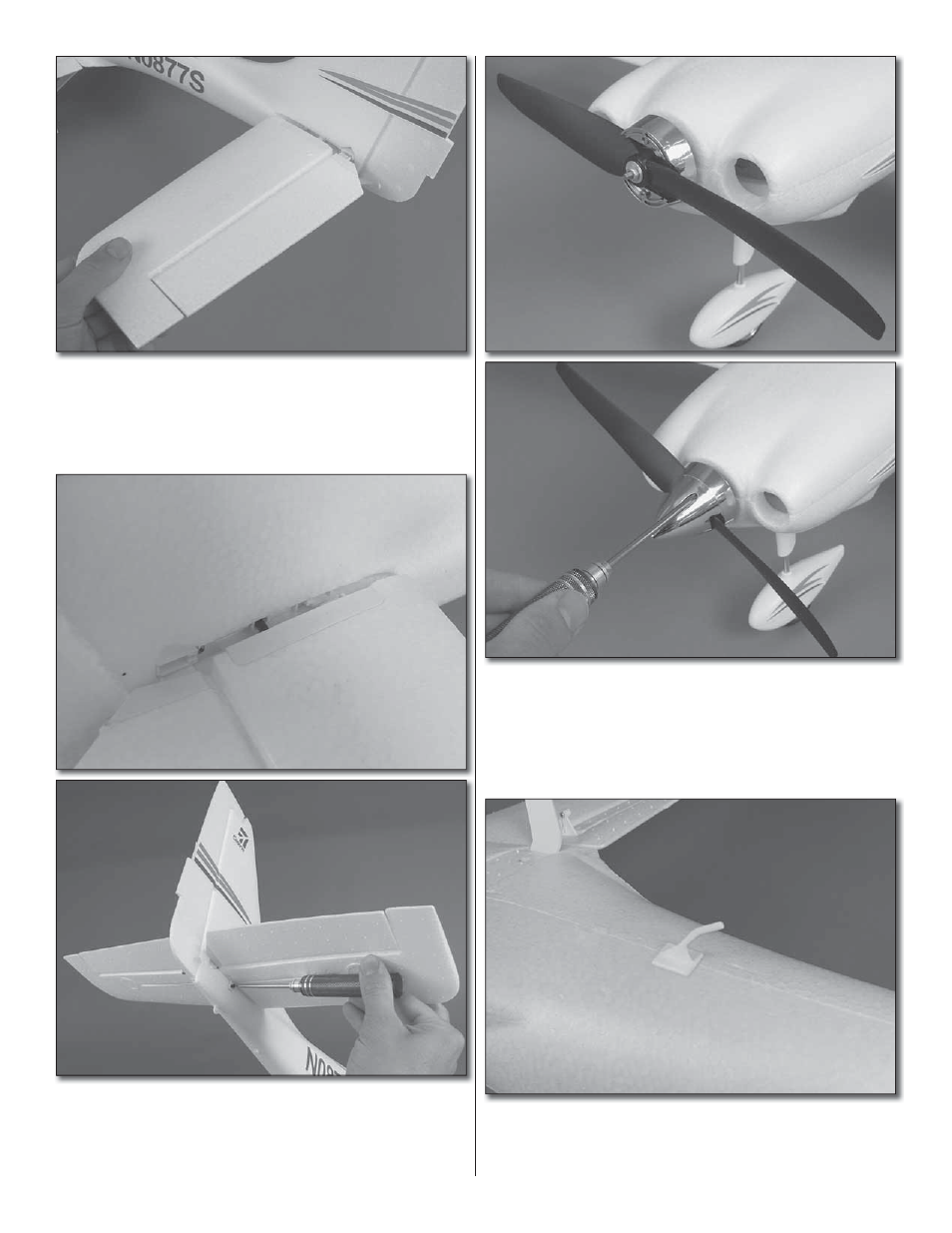

13. Slide the left horizontal stabilizer onto the fuselage.
Align the plastic fi ttings into their mating slots in the fuselage
and press the stab half against the fuse until fully seated.
❏
14. Install the right horizontal stabilizer in the same
manner. Thread a 2.5x8mm self-tapping screw into each
stab mounting hole and tighten them securely.
❏
15. Remove the spinner cone by unscrewing the two
screws that hold it to the spinner backplate. Install the
propeller followed by the prop washer and then the prop nut.
Thoroughly tighten the prop nut. Reinstall the spinner cone.
❏
16. Install the antenna onto the underside of the fuselage.
Apply a couple drops of glue to the base of the antenna
before fi tting it in place. CA, epoxy, white glue, hot glue, or
any other household glue would be acceptable.
