Flyzone FLZA4304 - Manual (Page 7)

7
❏

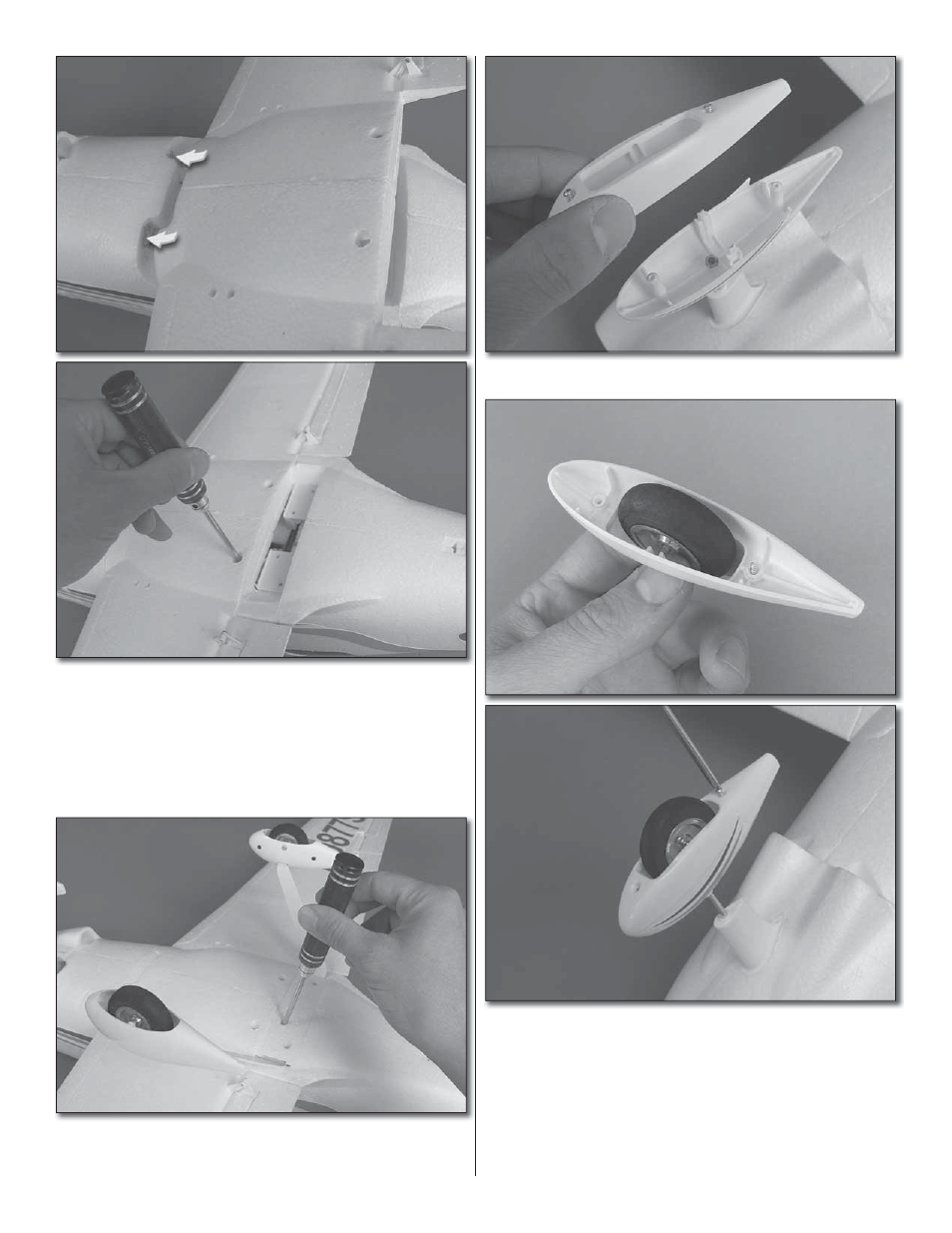

9. Insert the wing dowels into the holes in the fuselage
at the front of the wing saddle. Make sure that none of the
servo wires interfere with the tail servos. Press the wing
into place and attach it to the fuselage using two 3x22mm
machine screws.
❏
10. Mount the landing gear to the fuselage using four
3x16mm self-tapping screws.
❏
11. Unscrew the bottom half of the nose wheel pant.
❏
12. Insert the nose wheel axle through the nose wheel and
fi t it into the grooves in the lower nose wheel pant. Replace
the lower nose wheel pant and screw it back into place.
