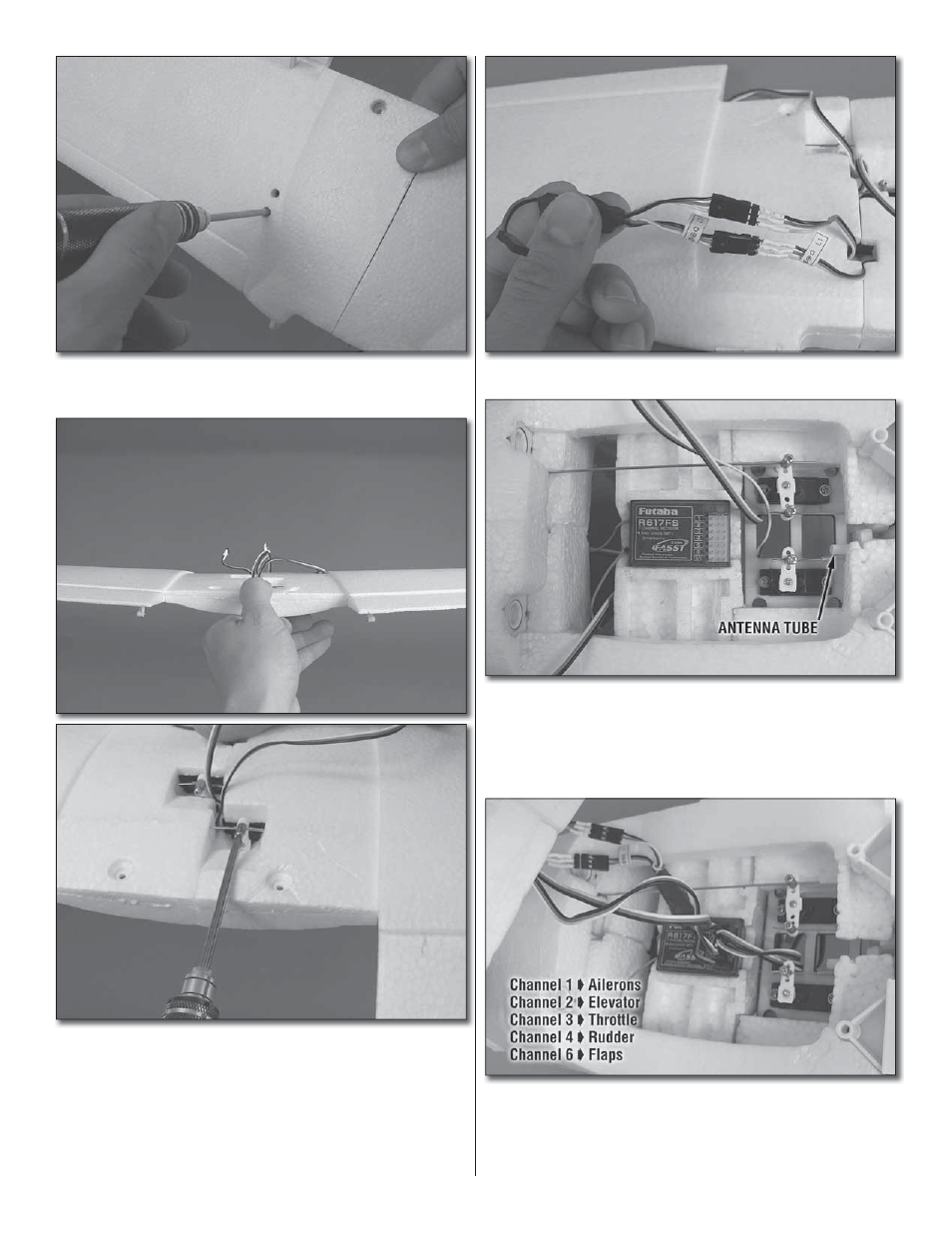

4. Tighten the wing joiner screws that can be seen through
the access holes in the underside of the wing panels.
❏
5. Position the fl aps and ailerons inline with each other
(left aileron and right aileron even with each other, left fl ap
and right fl ap even with each other) and tighten the screws in
the screw lock connectors. Note: After the receiver has been
installed and you test the operation of the fl aps and ailerons,
you may need to loosen the screws, reposition the pushrod
wires in the screw lock connectors, and retighten the screws.
❏
6. Connect the Y-harness to the wing lights as shown.
❏
7. Using the included piece of double-sided foam tape,
install your receiver onto the radio tray as shown. Installing a
receiver other than the model shown may require you to trim
the tray in order for it to fi t. An antenna tube is installed in the
fuselage if you will be using an FM radio system.
❏
8. Connect the servo leads into their appropriate channels
on the receiver. The Y-harness for the wing lights can be
plugged into any remaining unused channel of the receiver.
Note that the Y-harness does not have a white signal wire as
the servos do.
