Cabletron Systems BRIM-WT1 User Manual
Page 15
INSTALLING THE BRIM-WT1
BRIM-WT1 USER’S GUIDE
Page 7
3. Position the BRIM-WT1 in the MicroMMAC as shown
in Figure 2-2. Ensure that the connector on the BRIM-WT1 sits flush
on the MicroMMAC connector.

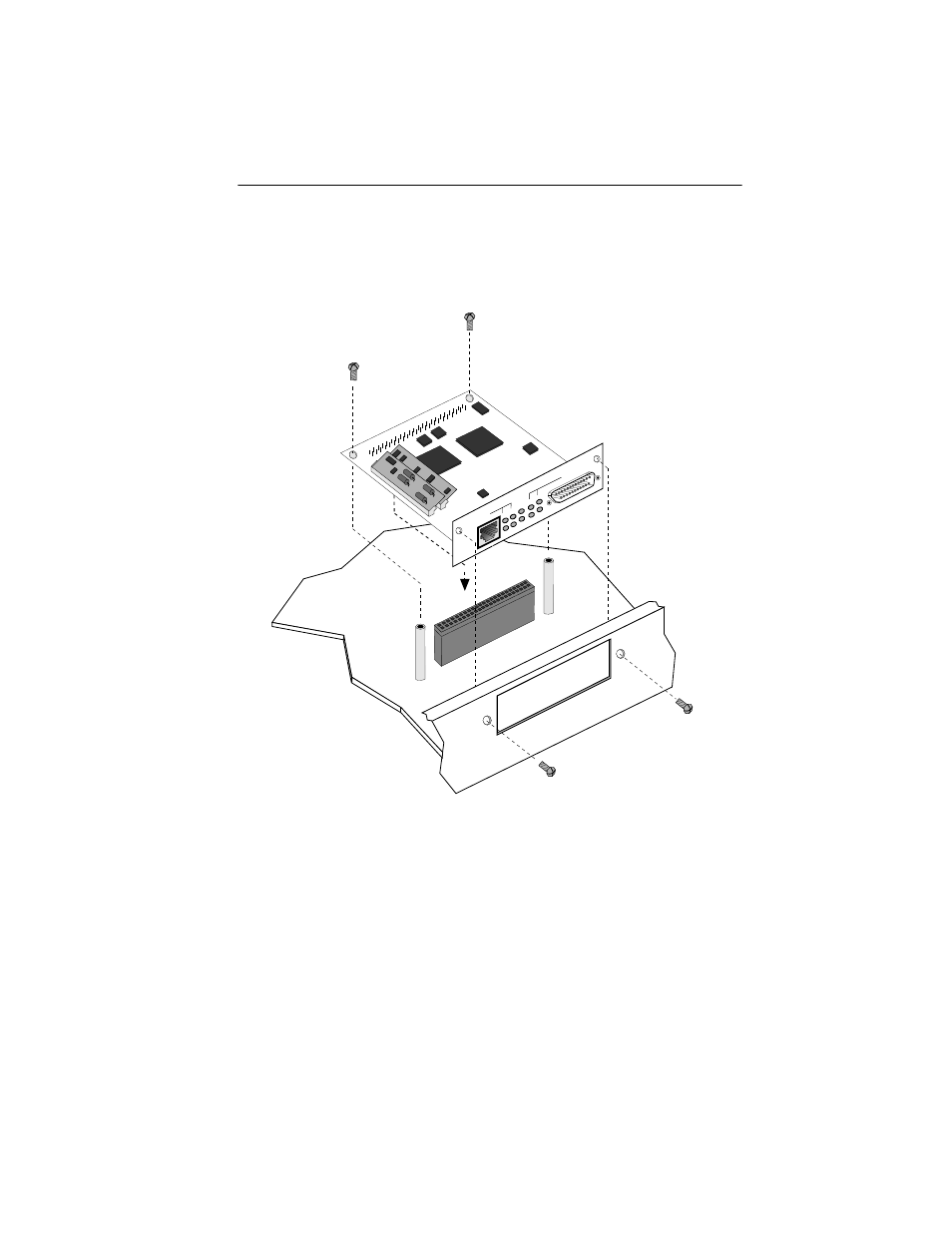

Figure 2-2. Installing the BRIM-WT1
4. Secure the BRIM-WT1 to the standoffs and MicroMMAC rear panel
using the four screws included with the module.
5. Reattach the chassis cover to the MicroMMAC and reconnect the
MicroMMAC to your network.
LNK
TST
BRIM-WT
STB
YEL
SYN
RED
LNK
DSR
TST
CTS
SYNC
T1/FT1
