CHAPTER 2: INSTALLATION
Page 6 BRIM-WT1 USER’S GUIDE
2.2 INSTALLING THE BRIM-WT1
Caution: The BRIM-WT1 and the boards associated with the
MicroMMAC are sensitive to static discharges. Be sure to use an
antistatic wrist strap and observe all static precautions during this
procedure. Failure to do so could result in damage to the BRIM-WT1 or
the MicroMMAC.
To Install the BRIM-WT1 into the MicroMMAC:
1. Remove the screws from the BRIM slot faceplate at the rear panel of
the MicroMMAC as shown in Figure 2-1.
2. Remove the screws from the two standoffs.

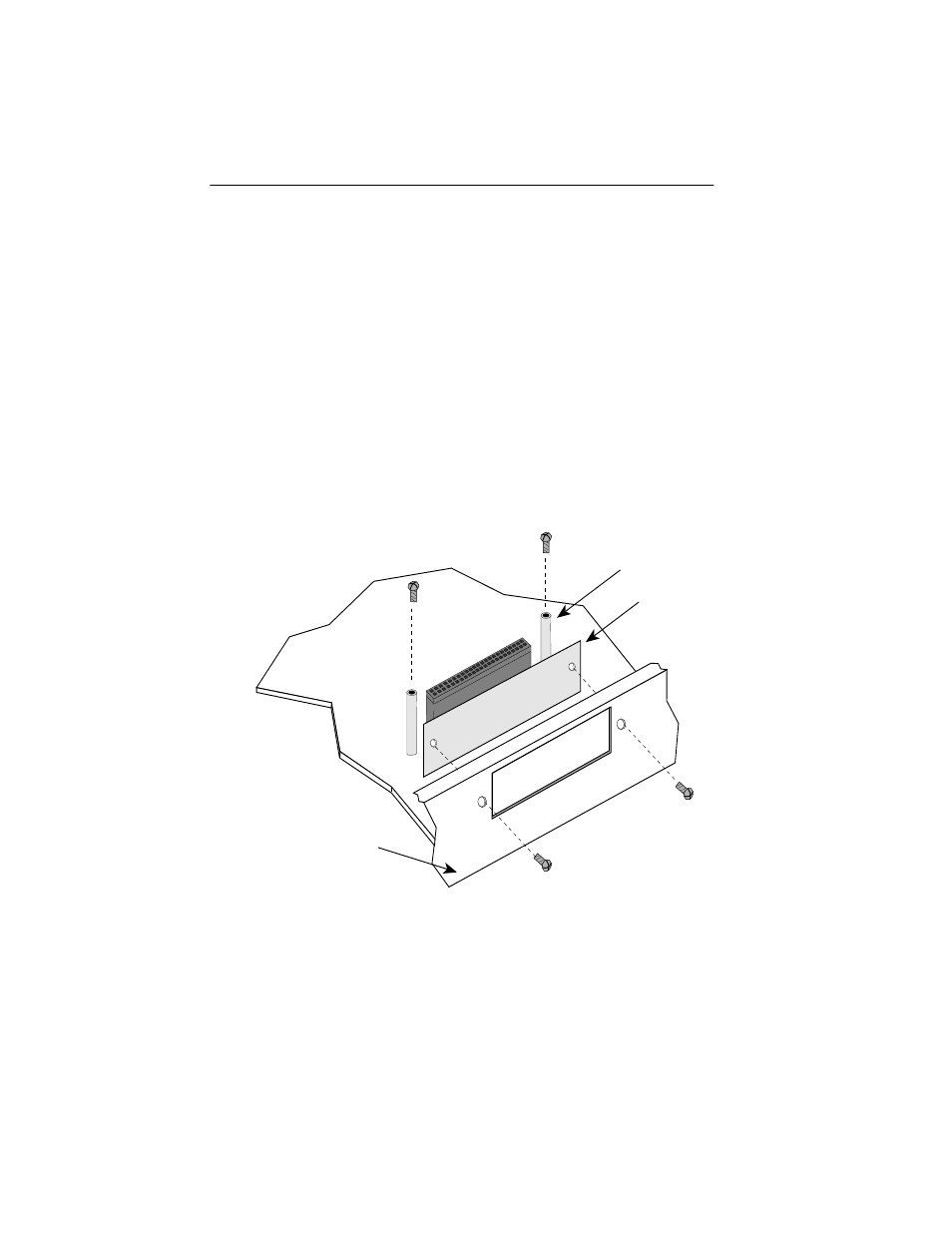

Figure 2-1. Removing the Faceplate and Standoff Screws
Faceplate
Standoff
MicroMMAC
Rear Panel
