Step 4
Setting Up Data Communications
(Skip this step if you are using USB flash disk to transfer data)
The data communication ports are positioned at the rear of the
terminals, please refer to the diagrams shown on Step 3 to deter-
mine the wiring. Plug the communication jacks (TCP/IP, RS232 or
RS485) to the corresponding ports.
TCP/IP – LAN Connection
For TCP/IP connection, plug the special RJ45 jack into the TCP/IP
(LAN) Port of the terminal. Connect the other end (normal RJ45
jack) to the local area network hub or a PC. Configure the device
ID, IP address, subnet mask and Gateway in the terminal (refer to
the hardware user manual for details).
RS232 – Serial Port Connection
Plug the communication jack that is provided in the package to
connect to the communication port of the terminal. Select wires
with label RX, TX and GND, and connect the other end of these
wires to a DB9 female connector. Configure the device ID and
baudrate of the terminal (refer to the hardware user manual for
details). Use the normal RS232 cable to plug into the RS232 port
of the terminal.

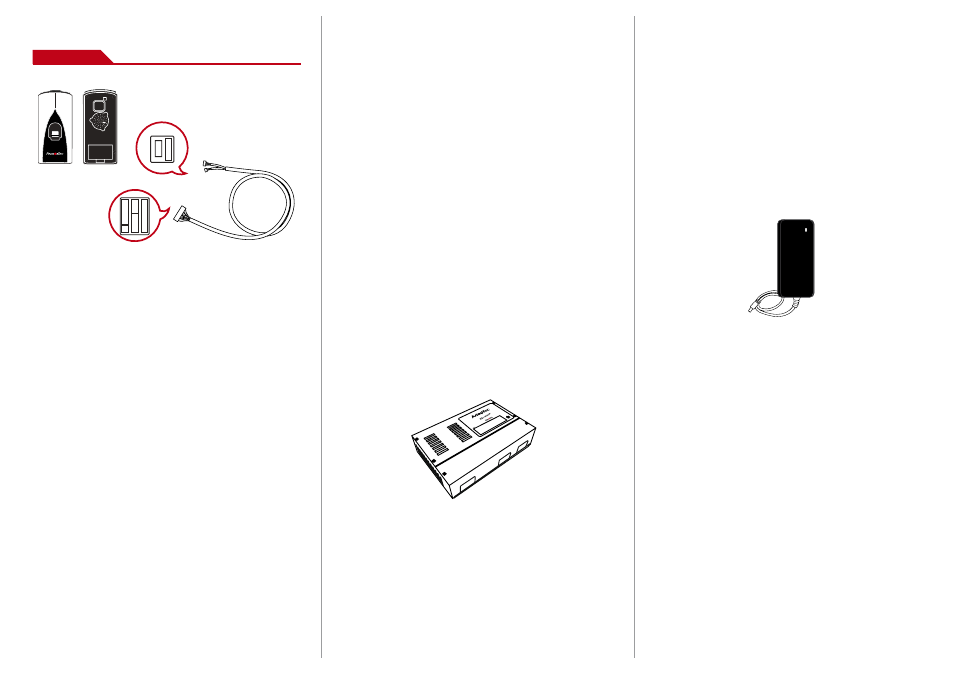

R2i
Connection Port for R2i
Connection Port for Master R2
R2i
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
.
RS485 – Serial Port Connection
Plug the communication jack that is provided in the package to
connect to the communication port of the terminal. Select wires
with label RS485+, RS485- and GND, and connect the other end
of these wires to an RS232/485 data converter. Connect the other
end of the data converter to a DB9 female connector. Configure
the device ID and baudrate of the terminal (refer to the hardware
user manual for details).
Step 5
Finalizing the installation
1. Check that all cable connections are done correctly.
2. Attach the terminal to the corresponding back plates,
tighten the screws to secure the terminal on the wall
3. Switch on the power to the terminal.
4. Start using the terminal.
Other Accessories
Note: All Accessories are offered at http://accessory.fingertec.com
AdapTec
AdapTec TA
The AdapTec TA is a 5VDC power supply inclusive of a 110~240VAC
switching linear power. The AdapTec provides 5VDC power to the
FingerTec terminal and charges a 12VDC 7.0Ah backup battery si-
multaneously. During an event of a power failure, the back up bat-
tery will automatically provides power to the terminal.
AdapTec AC
The AdapTec AC is a 12VDC power supply inclusive of a 110~240VAC
switching linear power. The AdapTec supplies 12VDC power to
the FingerTec terminal and door lock system as well as charges a
12VDC 7.0Ah backup battery simultaneously. During an event of
a power failure, the back up battery automatically provides power
to the terminal and maintains the door lock system. The AdapTec
AC also prevents a secured door from being opened if it has been
tampered with.
Mini UPS
Mini UPS 5VDC
Mini UPS 5VDC is a mini portable backup power supply with 5VDC
output, supplying 5VDC power for FingerTec Time Attendance ter-
minals.
Mini UPS 12VDC
Mini UPS 12VDC is a mini portable backup power supply with
12VDC output, supplying 12VDC power for FingerTec Door Access
& Time Attendance terminals.
Enclosures
FingerTec offers enclosures to protect the terminals from being
meddled with by unauthorized persons.
Door Lock Accessories
FingerTec offers various door locks accessories to complement Fin-
gerTec door access product range.
