VB475

29

En

g

lish

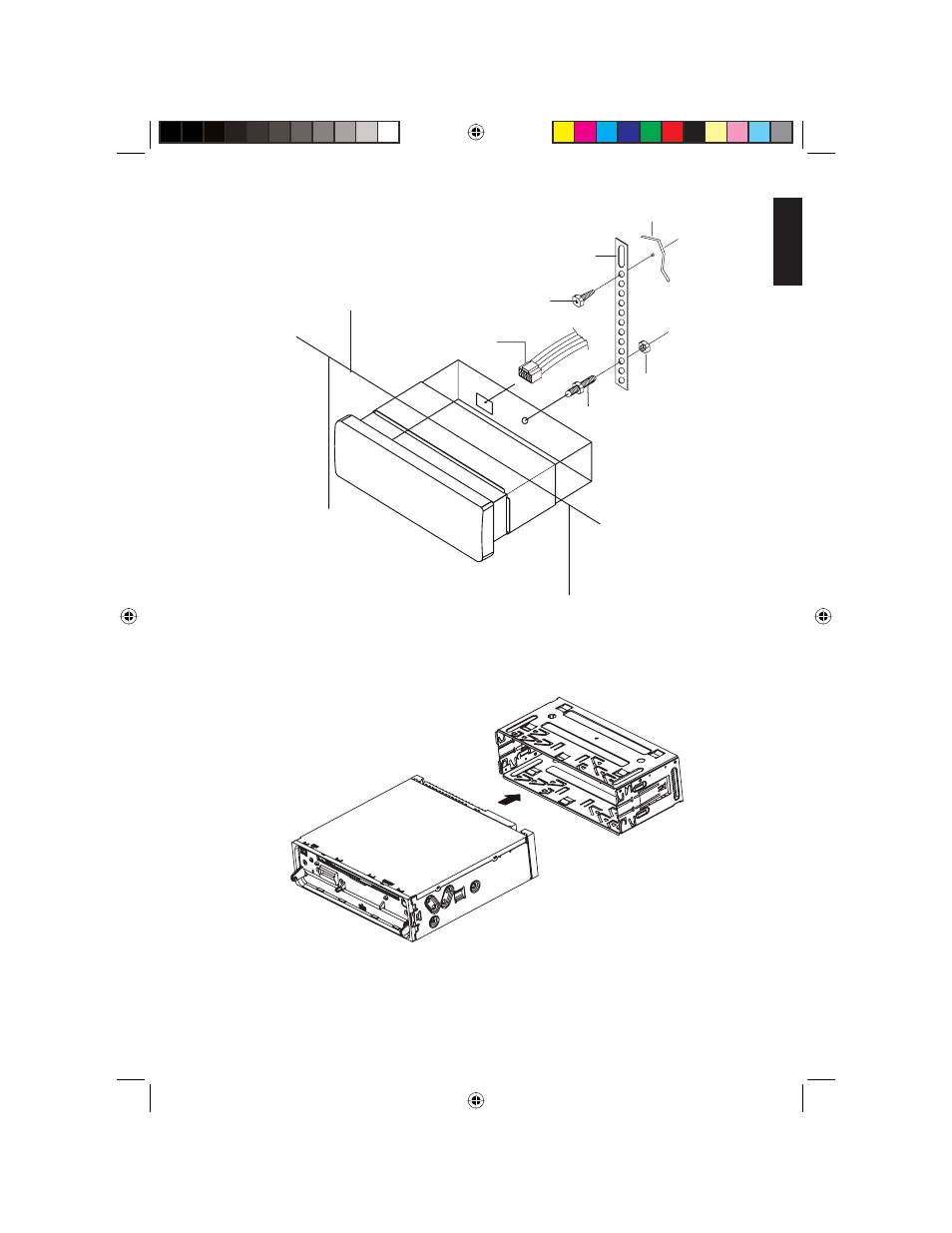

Power connector

Assembly bar

Screw

Bolt

Nut

Location on vehicle

Dashboard face

Connections identifi ed

5. Use the nut to mount one side of the assembly bar with the bolt.

6. Insert the player into the mounting bracket and push it in until it clicks in place.

Front of the player showing how to install the mounting bracket

The front edge of the bracket lines up with the front of the player.
