Introduction
1-14
Compaq ProLiant BL p-Class GbE Interconnect Switch User Guide
COMPAQ CONFIDENTIAL Codename: Vanilla Part Number: 263680-001 Last Saved On: 4/23/02 9:55 AM
DualTSX Interconnect Module Panel
One DualTSX Interconnect Module is inserted into the rear side of each GbE Interconnect
Switch. Each DualTSX Interconnect Module has two RJ-45 connectors with link activity and
speed LEDs and two LC connectors with only link activity LEDs for uplink network cabling.
Two LC connectors support 1000 SX Ethernet short-haul fiber connections, and two RJ-45
connectors support 10/100 Ethernet copper connections for uplink connectivity.
NOTE: To the side of the two Gigabit Ethernet LC connectors are LEDs reserved for stacking support.
Stacking functionality is planned for a future release of GbE Interconnect Switch firmware.
1
2
3
4
5
6
7
8

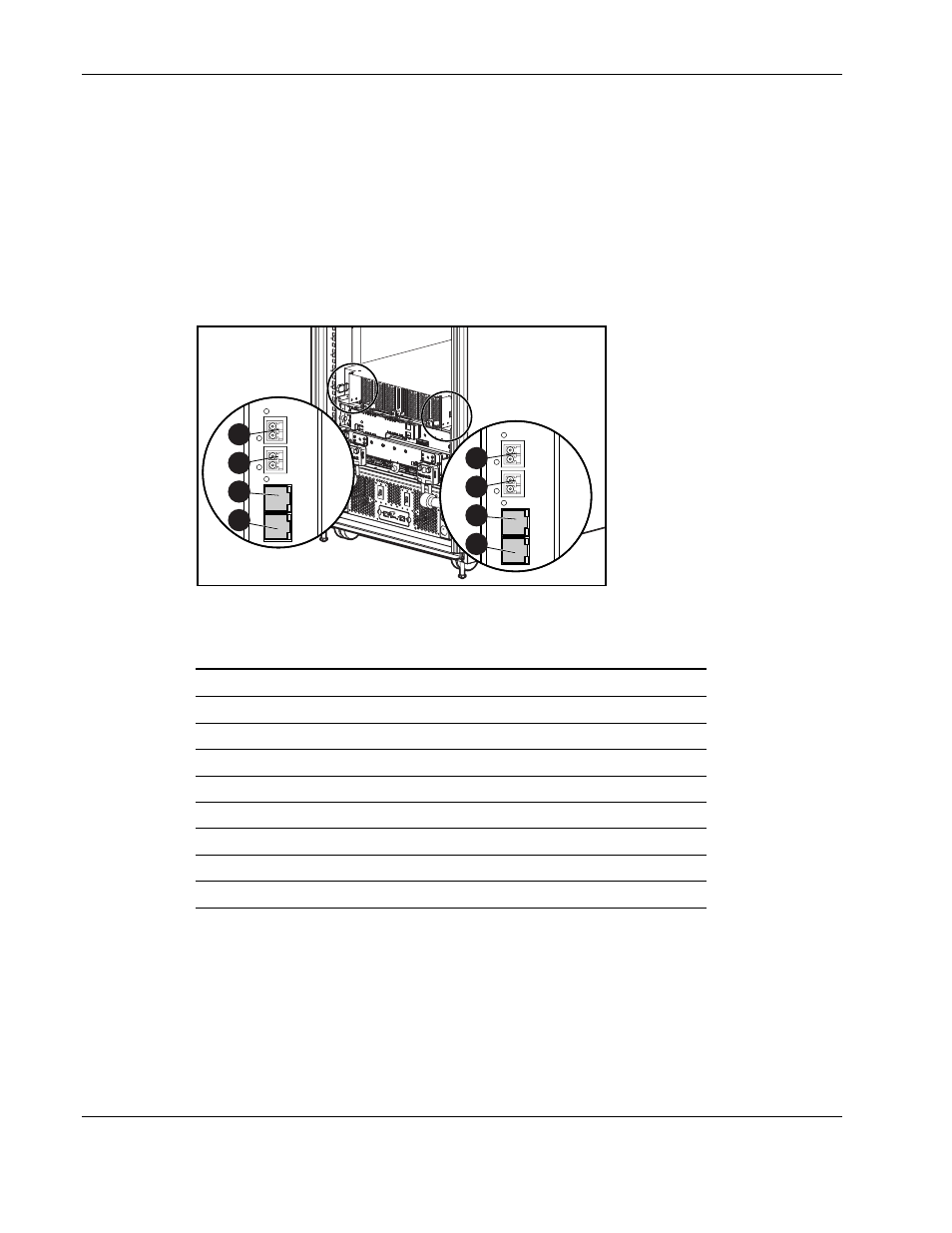

Figure 1-9: DualTSX Interconnect Module connectors
Table 1-6: DualTSX Interconnect Module Connectors
Item Description
1
Port (22x) LC connector for 1000Base-SX uplink on Switch B
2
Port (21x) LC connector for 1000Base-SX uplink on Switch B
3
Port (20x) RJ-45 connector for 10/100Base-T uplink on Switch B
4
Port (19x) RJ-45 connector for 10/100Base-T uplink on Switch B
5
Port (22x) LC connector for 1000Base-SX uplink on Switch A
6
Port (21x) LC connector for 1000Base-SX uplink on Switch A
7
Port (20x) RJ-45 connector for 10/100Base-T uplink on Switch A
8
Port (19x) RJ-45 connector for 10/100Base-T uplink on Switch A
