Introduction
Compaq ProLiant BL p-Class GbE Interconnect Switch User Guide 1-11
COMPAQ CONFIDENTIAL Codename: Vanilla Part Number: 263680-001 Last Saved On: 4/23/02 9:55 AM
1 2 1 2

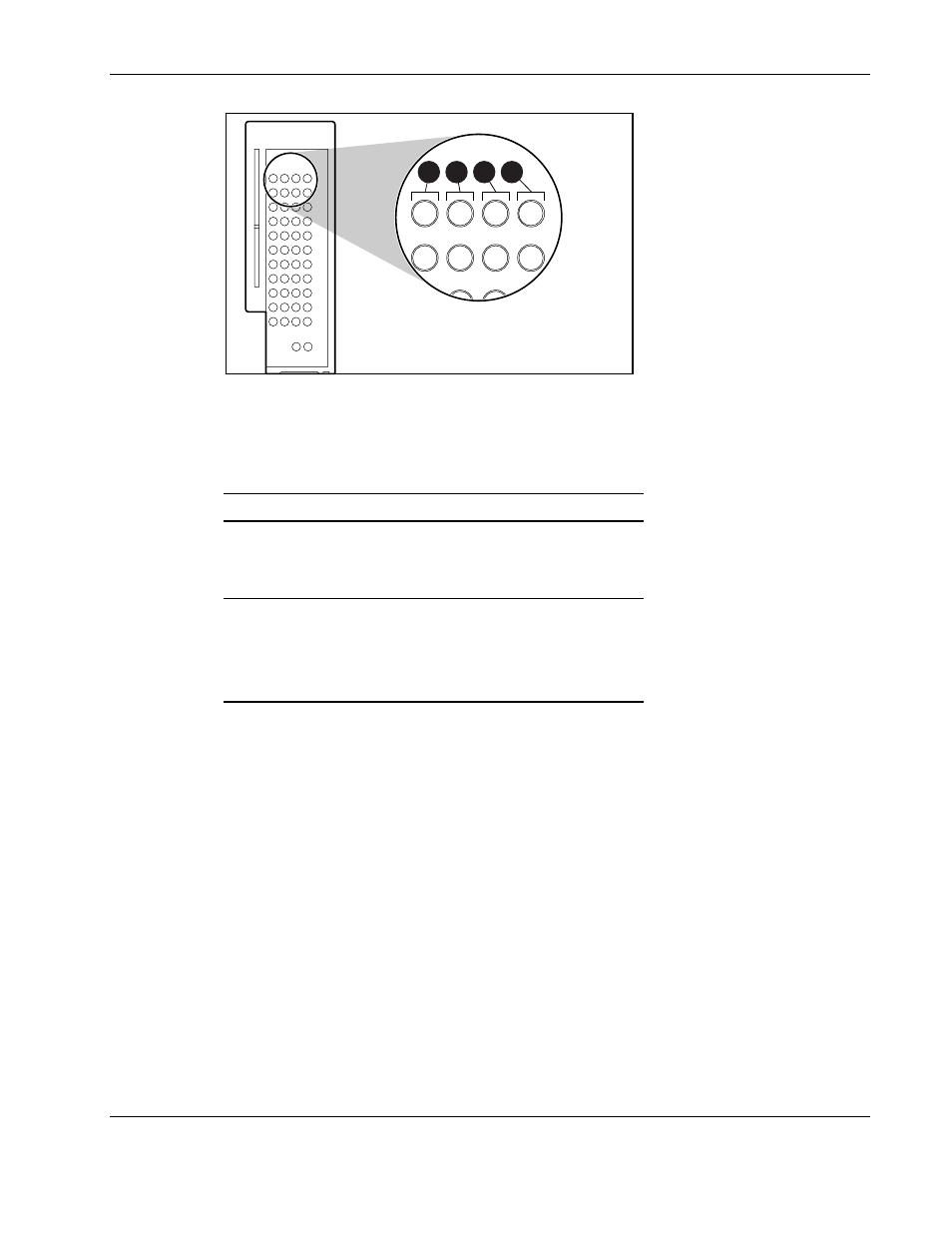

Figure 1-6: GbE Interconnect Switch front panel NIC
LED functions
Table 1-3: GbE Interconnect Switch Front Panel NIC
LED Functions
Item LED Description Status
1 Link speed Amber = 1000 Mb/s
Green = 100 Mb/s
Off = 10 Mb/s
2 Link activity Green = Link and no activity
Green flashing = Link and activity
Amber = Port disabled
Off = No link
