The MicroDock
20 Creative Professional
The 1/8” stereo jacks make it easy to connect to powered surround sound speakers.
Only three stereo cables are necessary with many speaker systems (see above). The 1/8”
jacks duplicate the 1/4” outputs.
You can connect the 1/8” stereo jacks to your surround speakers and connect the 1/4”
outputs to your other gear for music creation. When you want to monitor in surround,
simply open the 5.1 Session and turn on your surround speakers.

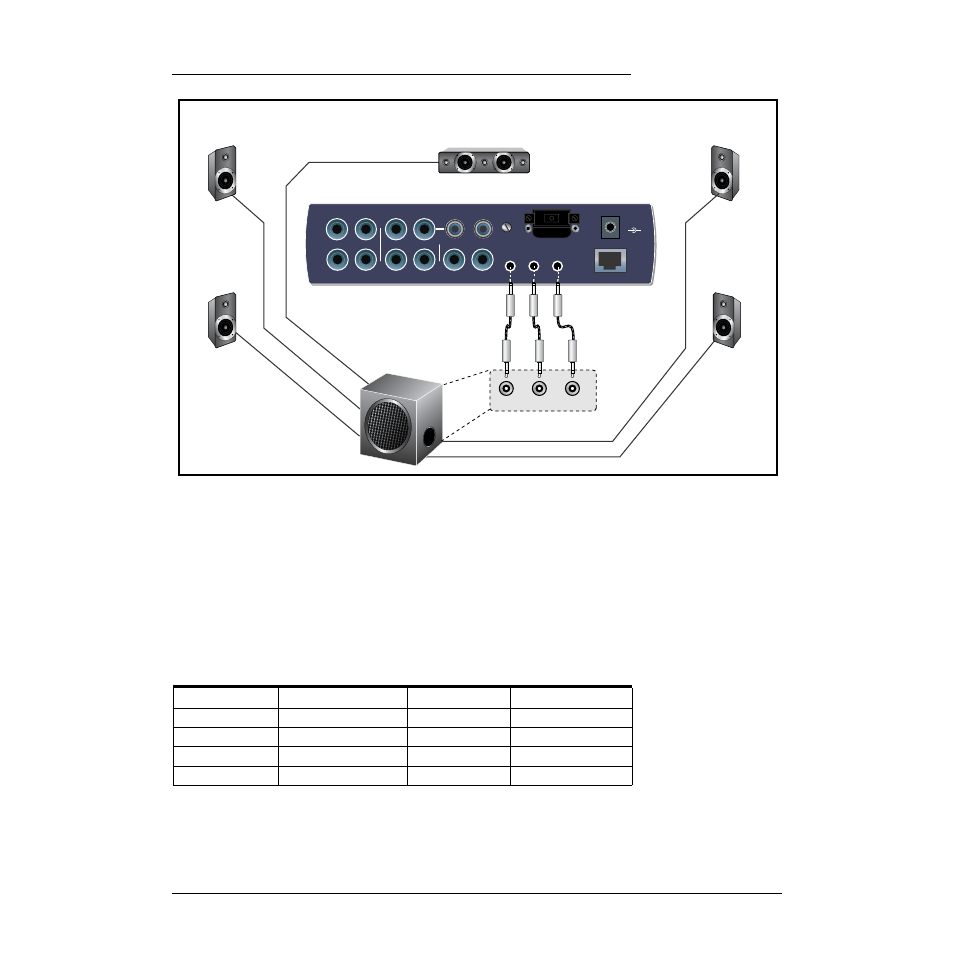

The chart below shows how to connect the outputs for 5.1 surround sound playback.
EDI
In
1L 1R 2L 2R
3L 3R 2L 2R
Out
1L 1R
Phono
Gnd 2L 2R
1 2
Out
48 VDC
+ -
MIDI Cable
3
Front Rear Ctr/Sub
Left
Front
Right
Front
Center
Sub-Woofer
Left
Rear
Right
Rear
5.1 Surround Speaker Connections
(with built-in power amps)
Multichannel WAVE to Surround Sound Speaker Channels
(using the factory 5.1 DVD Playback Session)
WAVE Strip Surround Channels 1/4” Outputs 1/8” Outputs
E-DSP WAVE 1/2 Front Left / Front Right 1L = FL 1R = FR 1 (Tip = FL Ring = FR)
E-DSP WAVE 3/4 Center / Subwoofer 3L = C 3R = Sub 3 (Tip = C Ring = Sub)
E-DSP WAVE 5/6 Rear Left / Rear Right 2L = RL 2R = RR 2 (Tip = RL Ring = RR)
E-DSP WAVE 7/8 Side Left / Side Right N/A N/A
