3 - CardBus Card & MicroDock
The MicroDock
E-MU 1616/1616M CardBus Digital Audio System 19
Computer Speaker Analog Outputs
These stereo mini-phone (3.5mm) jacks duplicate line level outputs 1-3 with a lower
output level to accommodate consumer speakers. These line level outputs are designed
to interface easily with powered speakers.
MIDI 1 & 2 In/Outs
MIDI input and output ports allow you to interface any type of MIDI equipment such as
keyboards, effect units, drum or guitar controllers (anything with MIDI). The MIDI
drivers were installed when you installed your PatchMix DSP software and the MIDI
ports will appear in your system control panel under “Sounds and Audio Devices”.
There are two completely independent sets of MIDI input and output ports on the
MicroDock, which can be assigned in your specific MIDI applications.
Connect the MIDI breakout cable to the D-connector on the MicroDock. Connect MIDI
Out to the MIDI In port of your synthesizer and MIDI Out of your synth to MIDI In of
the MicroDock MIDI cable.
EDI Connector (Card)
Connects the MicroDock to the E-MU 02 CardBus card using a CAT5-type computer
cable. The cable supplied with the MicroDock is specially shielded to prevent unwanted
RF emissions.
Computer Speaker Output Duplicates Line Level Output
1 L/R Tip = 1L Ring = 1R
2 L/R Tip = 2L Ring = 2R
3 L/R Tip = 3L Ring = 3R
EDI
In
1L 1R 2L 2R
3L 3R 2L 2R
Out
1L 1R
Phono
Gnd 2L 2R
1 2
Out
48 VDC
+ -
MIDI Cable

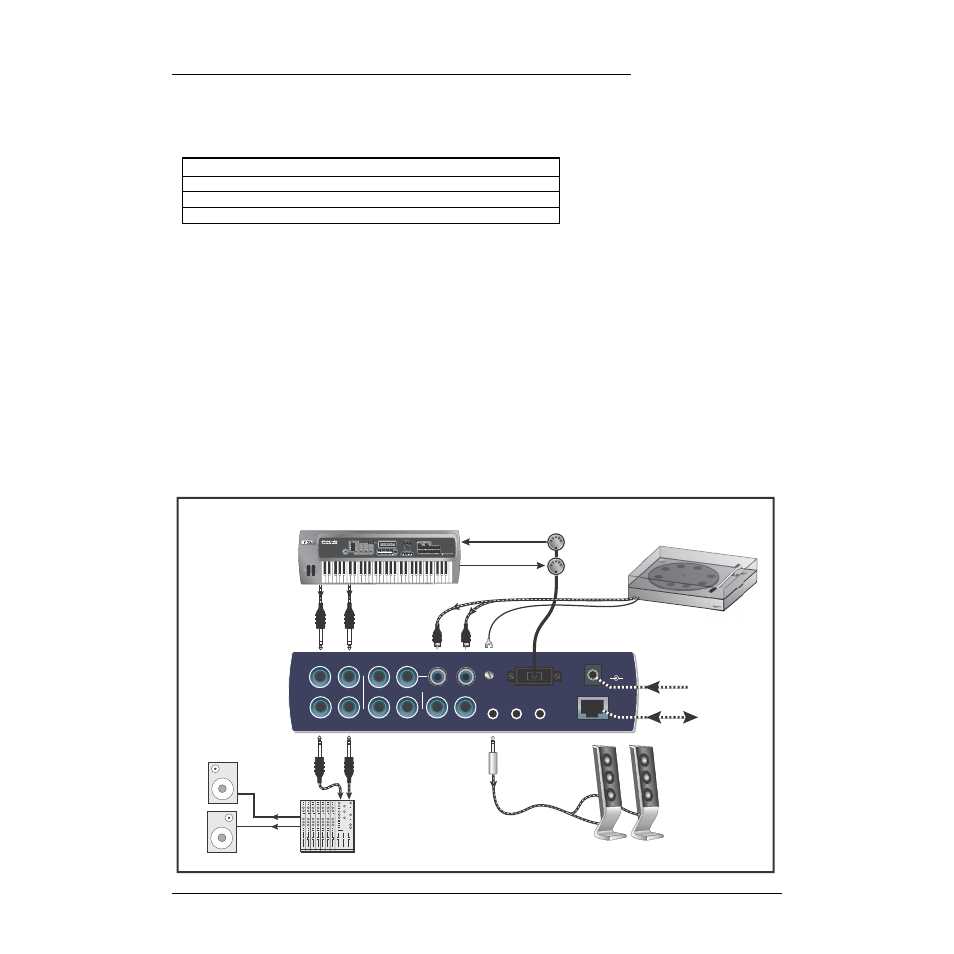

3
Basic
Connections
Turntable
* *
MIDI 1
MIDI In
MIDI Out
Powered
Desktop
Speakers
MIDI Synthesizer
Mixer
&
Speakers
Audio
from
Synthesizer
Audio
to
Monitors
Connect
Desktop
Speakers to
1/8" jacks
CardBus
Card
AC Adapter
Stereo
In
Out
* Note: Line Inputs 2L/2R and Phono 2L/2R cannot be used at the same time.
