Monitoring Ring and Station Statistics 5-7
Statistics

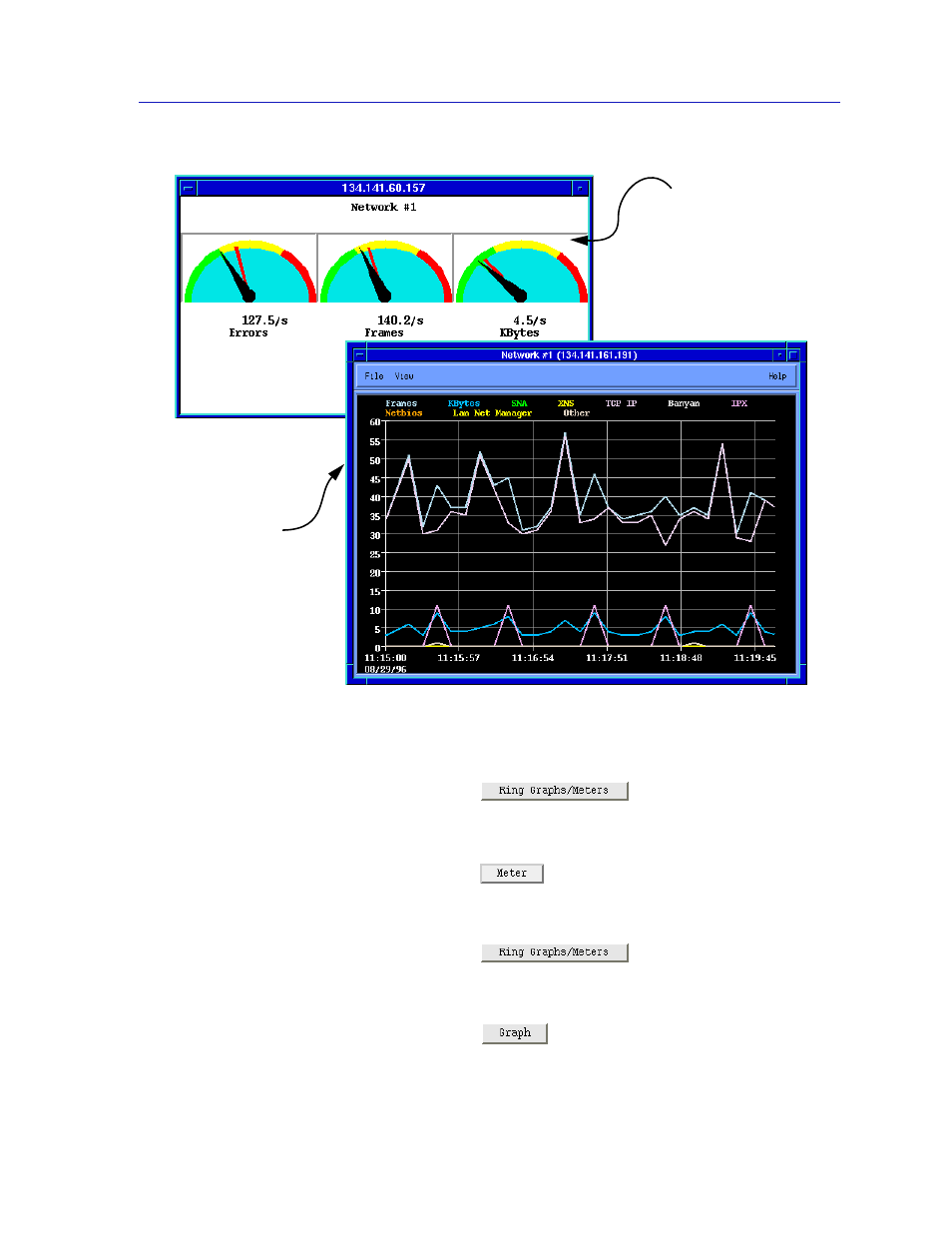

Figure 5-4. Ring Graph and Meters
To create the ring meters in Figure 5-4 the following steps were taken:
1. Click mouse button 1 on .
2. Select Errors, Frames, and KBytes from the Ring Graph/Meter Choices
window.
3. Click mouse button 1 on . Meters similar to those displayed in
Figure 5-4 will appear.
To create the ring graph in Figure 5-4 the following steps were taken:
1. Click mouse button 1 on .
2. Select Frames, Kbytes, SNA, XNS, TCP IP, Banyan, IPX, Netbios, Lan Net
Manager, and Other from the Ring Graph/Meter Choices window.
3. Click mouse button 1 on . A graph similar to the one in Figure 5-4
will appear.
Ring Graph
Note that the
graph tool will only
be available when
you are running
SPMA with HP
Network Node
Manager or IBM
NetView.
Ring Meters
