Using the TRMMIM Hub View
2-16 Monitoring Hub Performance
Checking Port Status
You can open a Port Status window for any station port on any manageable
module installed in the hub. A Port Status window reflects the condition of the
station port interface on the MMAC hub to which a station can attach.
To open the Station Port Status window:
1. Click mouse button 3 in the station Port Status or Port Index box to display
the Station Port menu.
2. Drag down to Port Status and release. The Port Status window, Figure 2-8 ,
will appear.

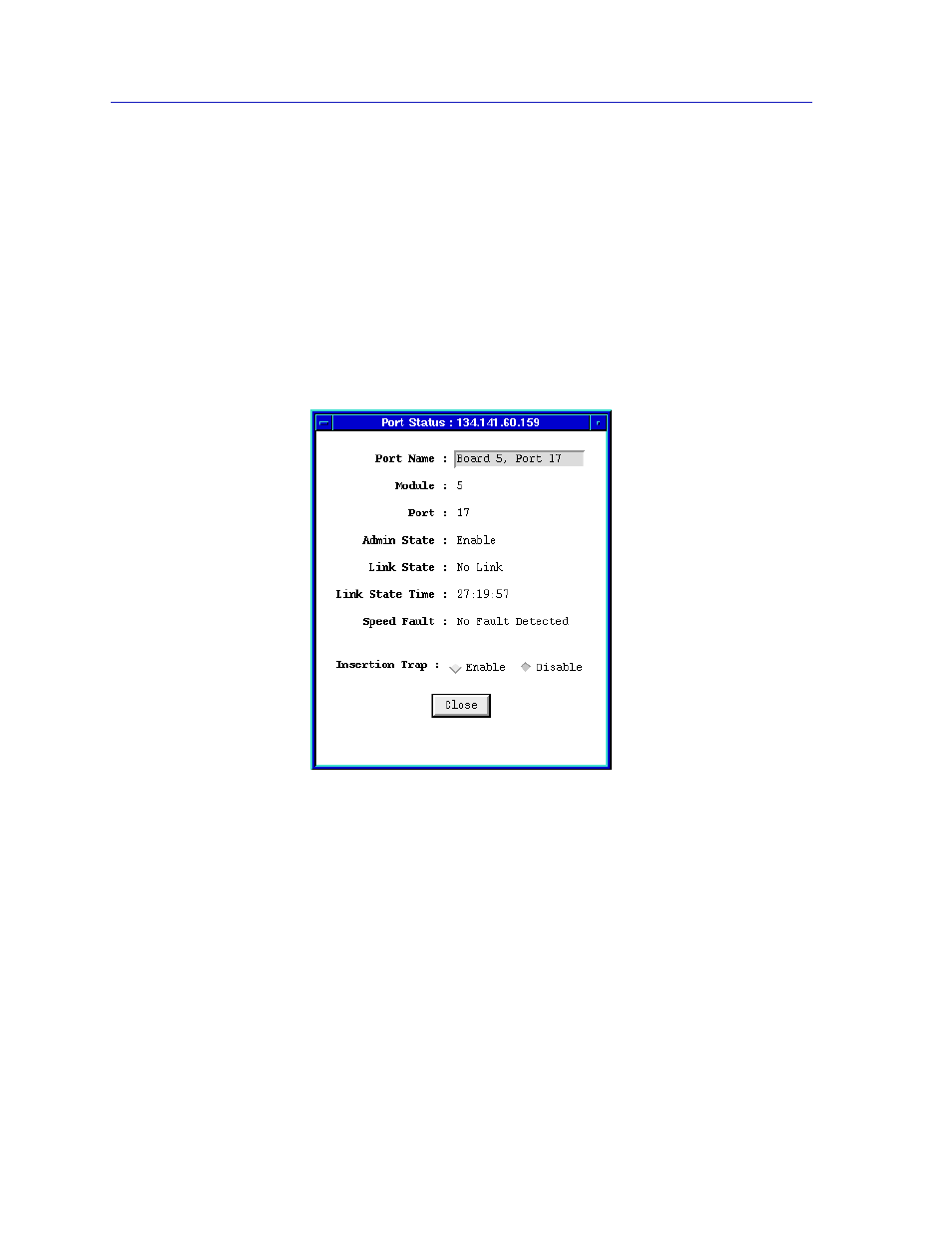

Figure 2-8. The Port Status Window
Port Name
This text field can help identify the attached station; the information entered here
is not displayed anywhere else in the Hub View.
Module/Port
Indicates the module (board) and port index of the selected interface.
Admin State
Displays the administrative state of the port: enabled or disabled.
Link State
Indicates whether the attached station is inserted into the ring (Link) or not (No
Link).
