Digilent Robotic Development Kit - Remote User Manual
Page 6
Remote Control Robotic Development Kit Reference Manual
www.digilentinc.com
page 6 of 9
Copyright Digilent, Inc. All rights reserved. Other product and company names mentioned may be trademarks of their respective owners.

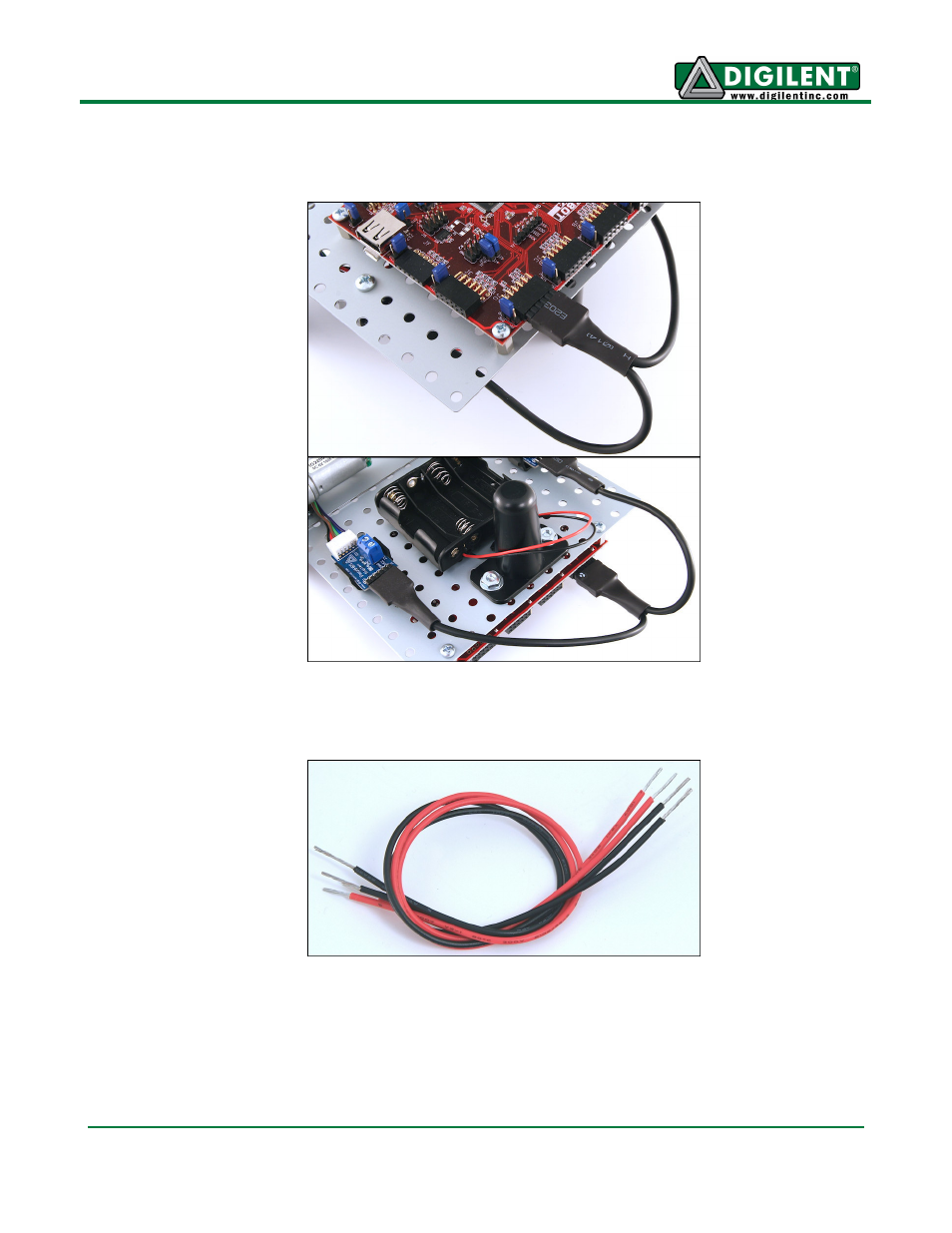

9. Connect the two PmodHB5 modules to port JD on the Cerebot 32MX4 board using the 2x6 Pin
to dual 6 pin cable. Use the marker on the cable connector to ensure that pin placements are
in alignment when connecting the boards.
10. Strip ½-inch of insulation from both ends of all red and black 22 gauge
power wires.
