Cub Cadet 2186 - Manual (Page 31)

-31 -

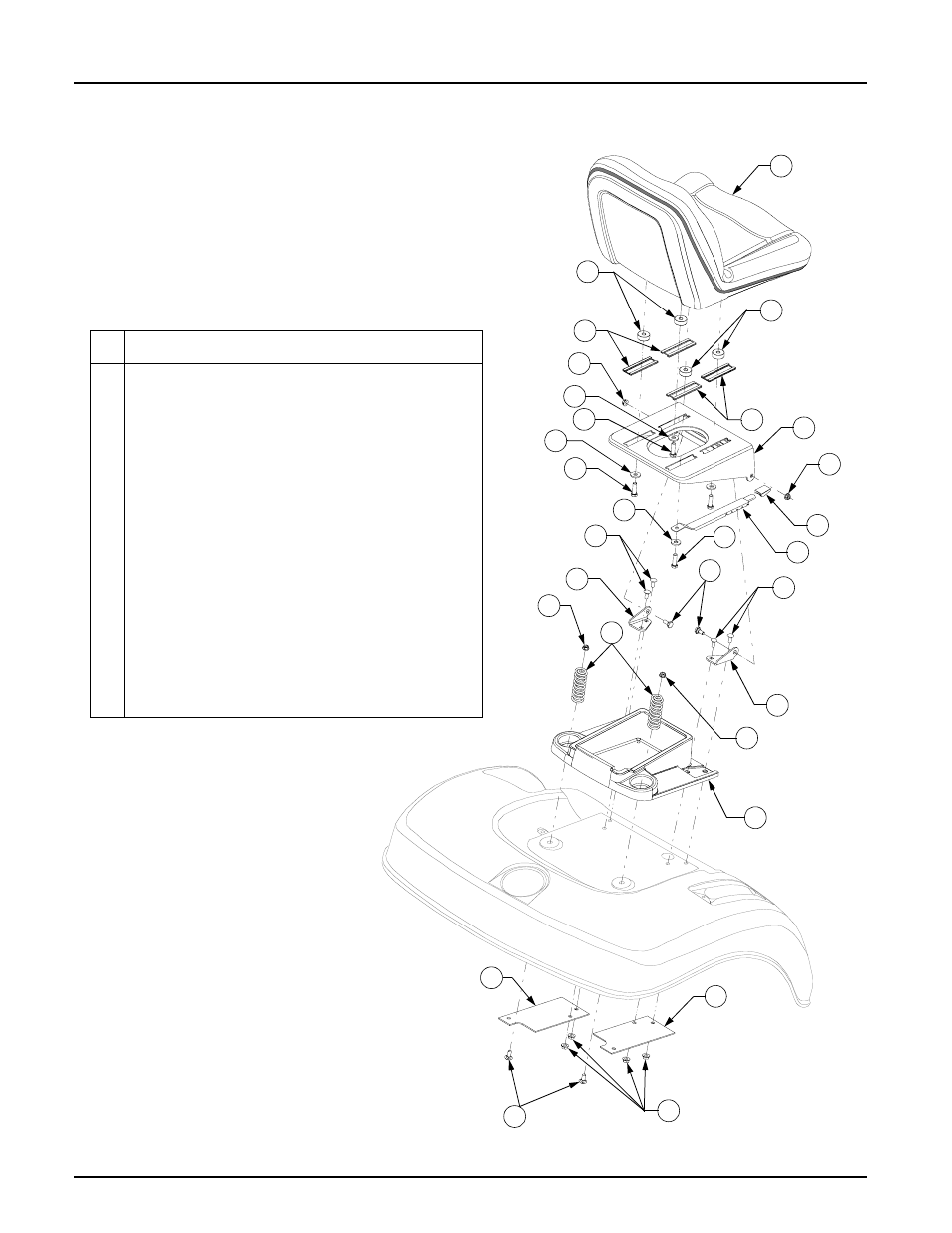

SEAT AND SUPPORT
REF.
NO.
PART
NUMBER
DESCRIPTION QTY.
1 703-2394 Bracket, RH Seat Pivot 1
2 703-2395
777I20310 Seat, Base
Graphic, Seat Adjuster
1
1
3 703-2477 Bracket, LH Seat Pivot 1
4 703-2628 Bracket, Fender Reinforcement 2
5 710-0451 Bolt, Carriage, 5/16-18 x .75 6
6 710-3123 Screw, Hx Cap Lock,
3/8-16 x 1.25 GR5
4
7 712-3004A Nut, Hex Flange Lock, 5/16-18 8
8 720-0190 Knob, Seat Adjuster 1
9 731-3154 Slide, Seat 4
10 731-3162 Tray, Tool 1
11 732-3080A Spring, Comp, 1.9 OD x 2.4 2
12 732-3098 Adjuster, Seat 1
13 736-3052 Washer, Flat, .406 x 1.0 x .105 4
14 738-0140 Bolt, Shoulder 2
15 738-04013 Spacer, Seat Slide Shoulder 4
16 757-04005
777D04541
777D01782 Seat, High Back
Graphic, Seat Back
Graphic, Made in USA
