Cub Cadet 2186 - Manual (Page 22)

-22 -
REF.
NO.
PART
NUMBER
DESCRIPTION QTY.
KH-62588 Complete Engine 1
KH-24-522-130 Short Block 1
1 KH-24-782-15 Cylinder Block, (Use Miniblock) 1
2 KH-25-139-57-S Plug, Hex Hd, 3/8 1
3 KH-24-032-01 Seal, Front Oil 1
4 KH-24-380-13-S Pin, Locating Dowel 6
5 KH-24-067-13 Rod, Connecting, Std 2
KH-24-067-14 Rod, Connection, .010 / .25mm 2
6 KH-24-874-17-S Piston w/Ring Set, Std 2
KH-24-874-18-S Piston w/Ring Set, .010 / .25mm 2
KH-24-874-19-S Piston w/Ring Set, .020 / .50mm 2
KH-24-874-14-S Piston w/Ring Set, .08mm 2
7 KH-12-422-09 Shim, Camshaft, .0320 (Red) AR
KH-12-422-13 Shim, Camshaft, .0400 (Black) AR
KH-12-422-07 Shim, Camshaft, .0280 (White) AR
KH-12-422-08 Shim, Camshaft, .0300 (Blue) AR
KH-12-422-10 Shim, Camshaft, .0340 (Yellow) AR
KH-12-422-11 Shim, Camshaft, .0360 (Green) AR
KH-12-422-12 Shim, Camshaft, .0380 (Gray) AR
8 KH-24-018-01 Retainer, Piston Pin 4
9 KH-24-108-11-S Ring Set, Std 2
KH-24-108-12-S Ring Set, .010 / .25mm 2
KH-24-108-13-S Ring Set, .020 / .50mm 2
10 KH-24-012-10-S Camshaft Assembly 1
11 KH-24-018-09 Ring, Retainer 1
12 KH-M-931010 Washer, Nylon 1
13 KH-28-032-09 Seal, Governor Cross Shaft 1
14 KH-24-468-15 Washer, Plain 1
15 KH-24-144-38 Shaft, Governor Cross 1
16 KH-52-139-09 Plug, Cup 1
17 751-3140 Drain, Oil 1
751-3142 Cap 1
18 751-3141-12 Hose, Oil Drain 1
KH-24-755-107-S Gasket Set 1
REF.
NO.
PART
NUMBER
DESCRIPTION QTY.
1
2
3
4
5
6
7
8
9
10
11
12
13
15
14
16
17
18

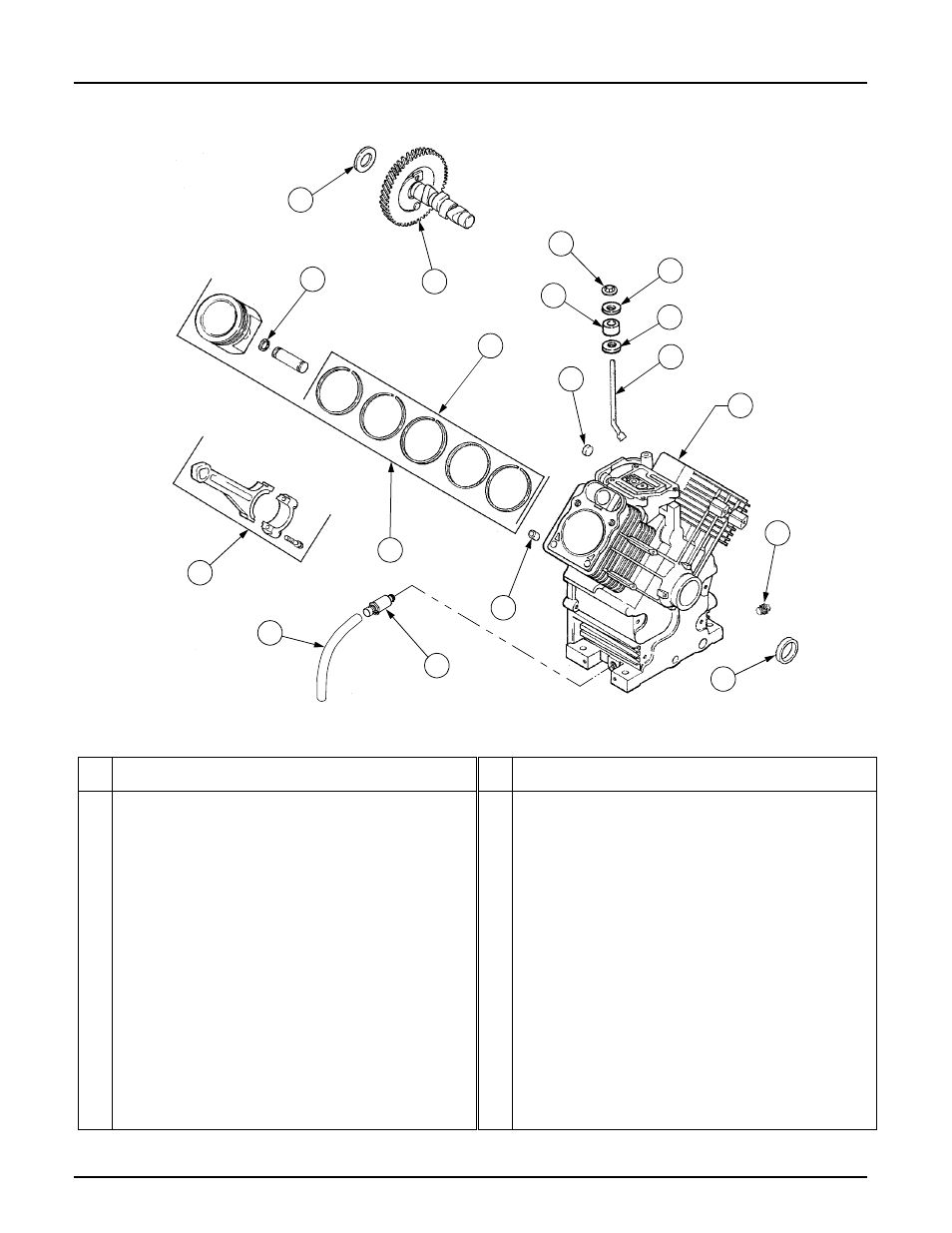

CRANKCASE
