Cub Cadet 2186 - Manual (Page 21)

-21 -
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
9

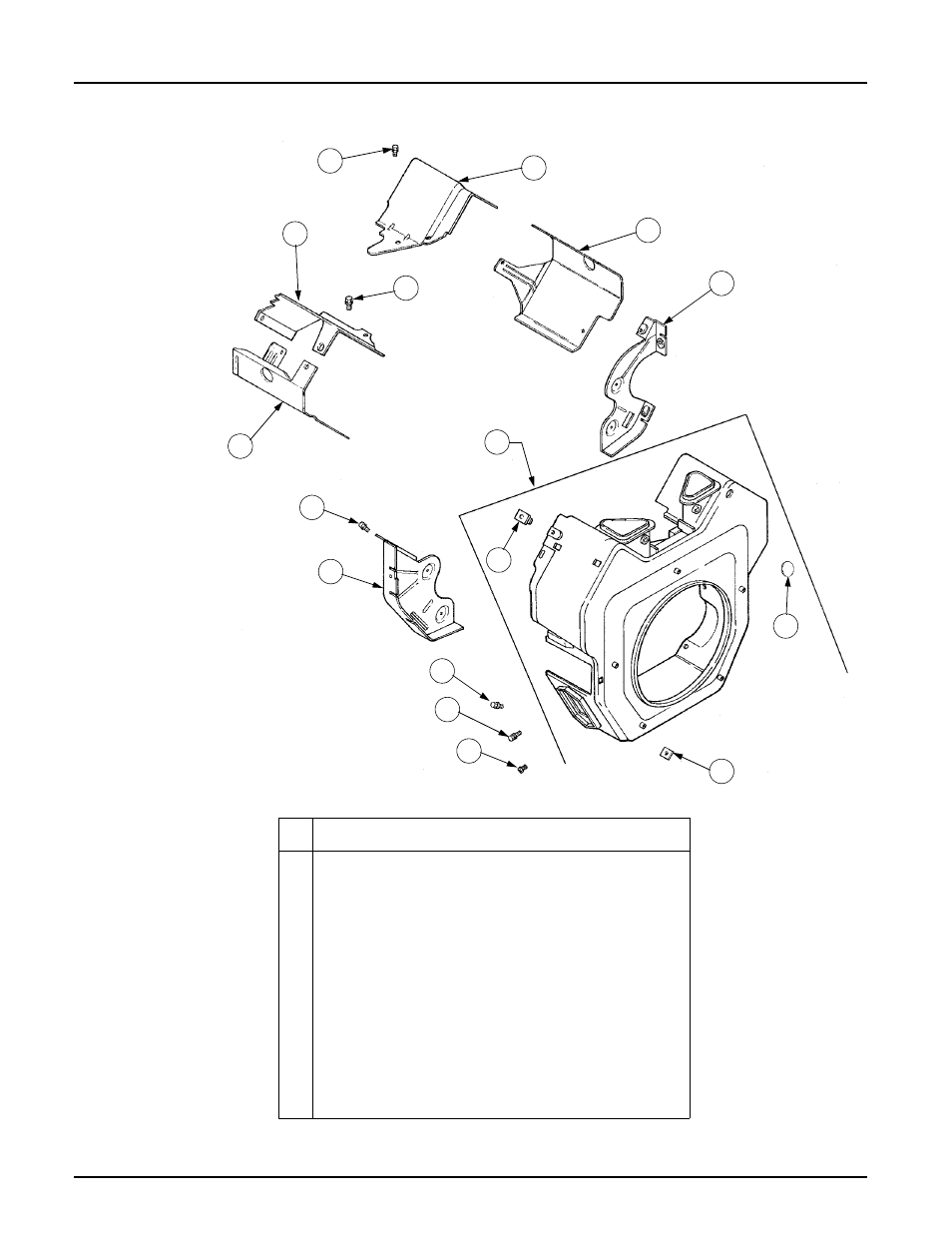

BLOWER HOUSING AND BAFFLES
REF.
NO.
PART
NUMBER
DESCRIPTION QTY.
1 KH-24-027-175-S Housing, Blower (Incl. Ref #2-4) 1
2 KH-24-100-02 Nut, Plastic 2
3 KH-25-139-16 Plug, Button, 9/16 1
4 KH-24-100-01 Nut, Plastic 3
5 KH-M-0551016 Screw, Hex Flange, M5 x 0.8 x 16 1
6 KH-M-545016-S Screw, Hex Flange, M5 x 0.8 x 16 5
7 KH-M-0545020 Screw, Hex Flange, M5 x 0.8 x 20 2
8 KH-24-146-16-S Plate, Backing - #2 Side 1
9 KH-M-0645016 Screw, Hex Flange, M6 x 1.0 x 16 6
10 KH-24-063-20 Baffle, Cylinder Barrel - #2 Side 1
11 KH-24-063-17 Baffle, Valley - #2 Side 1
12 KH-M-0545010 Screw, Hex Flange, M5 x 0.8 x 10 2
13 KH-24-063-59-S Baffle, Valley - #1 Side 1
14 KH-24-063-58-S Baffle, Cylinder Barrel - #1 Side 1
15 KH-24-146-20-S Plate, Backing - #1 Side 1
