Lets add another enclosure over the previous.

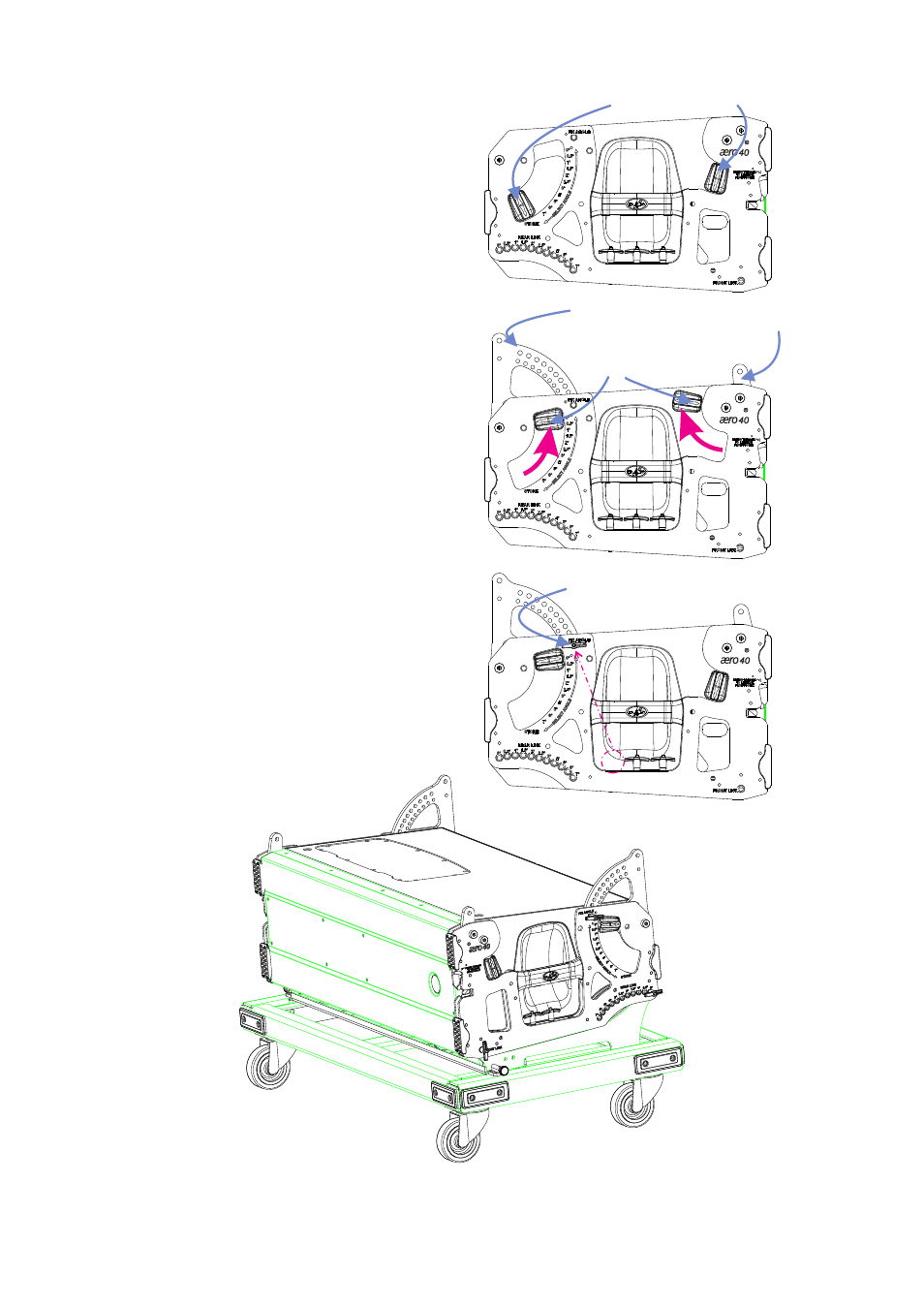

We need to look at the side controls of the
enclosure and act on them like in the figure.
The hidden front and the rear rods on the side
will appear.
The front rod will fix in its position while the rear
one can move freely.
To fix its position in 0º (position for transport),
we will put one of the security pins in the hole ‘FIX
ANGLE’ like in the figure.
The side control has arrows which mark the
selected angle, in this case 0º.
The result, platform included, can be seen in
the figures below.
6 Manual de Colgado / aero 40 / Rigging Manual
Side controls
Side controls
Rear rods
Front rods
Security pins
Figure of the enclosure on the platform PL-40S
with the rods ready to add another enclosure over it.
