Rods detail result – D.A.S. Audio Aero 40A Rigging User Manual

Page 10

Manual de Colgado

aero

40 / Rigging Manual

ARRAY MOUNTING OF GROUPS OF 4 UNITS ON A

PL-40S

The groups of 3 or 4 units are easy to transport by truck.

Lets see in this section how to mount an array of four units.

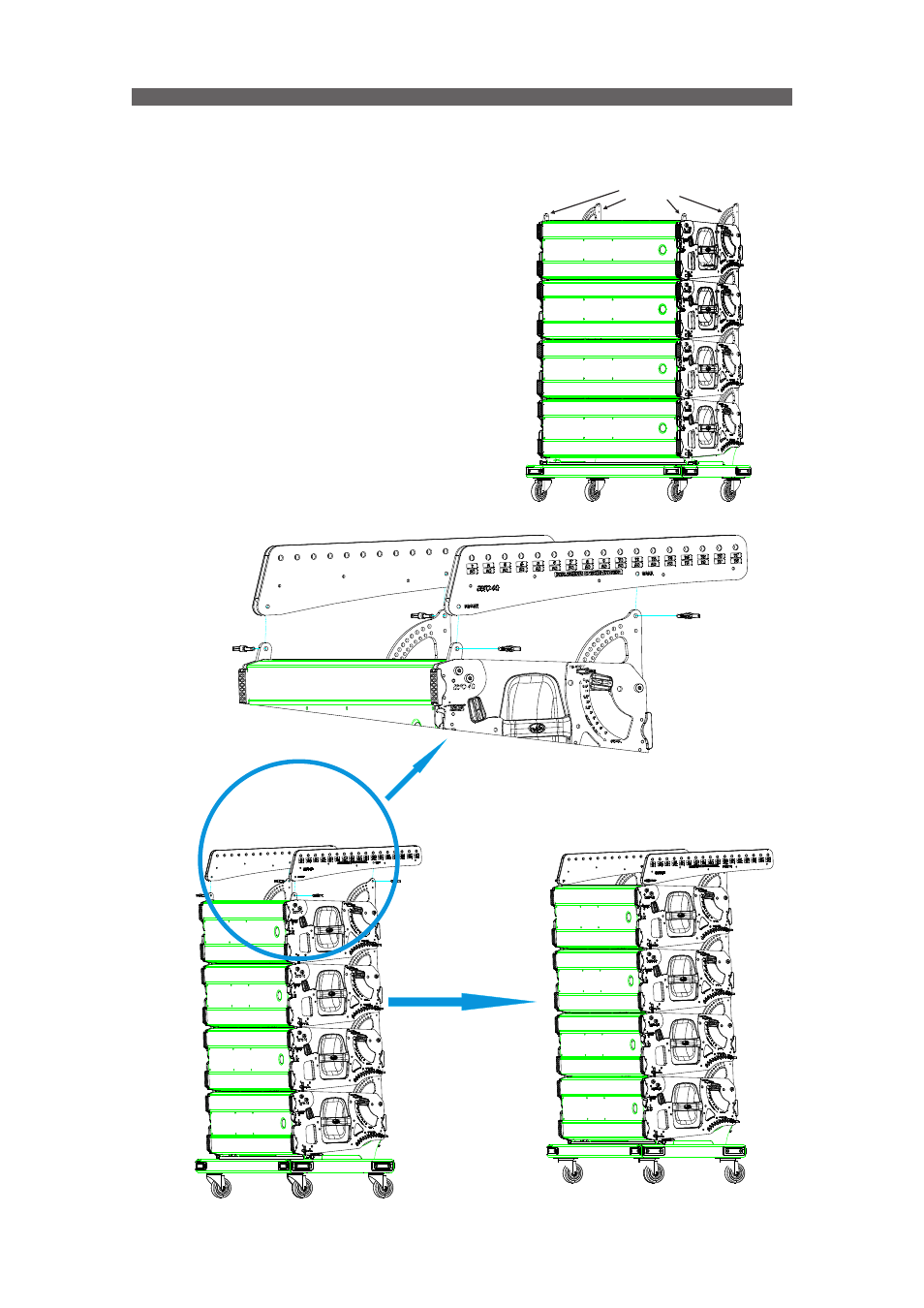

Firstly, mount the

AX-aero40 onto the top

box.

To mount the

AX-aero40 take out the rods

of the top unit.

See the result in the right figure.

Next, place the side pieces of the

AX-

aero40 introducing the security pin like in the
figure below.

Check that the security pins are well

positioned because they will support the weight
of the rest of the enclosures.

Rods

DETAIL

RESULT
