1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
20 20 20 20 20 20 20 20 20 20 20 20 20 19 18 17 16
MAX. NUMBER OF UNITS ALLOWED
Annex II- Maximum load capacity for AX-aero40
1090
4
3
0
730

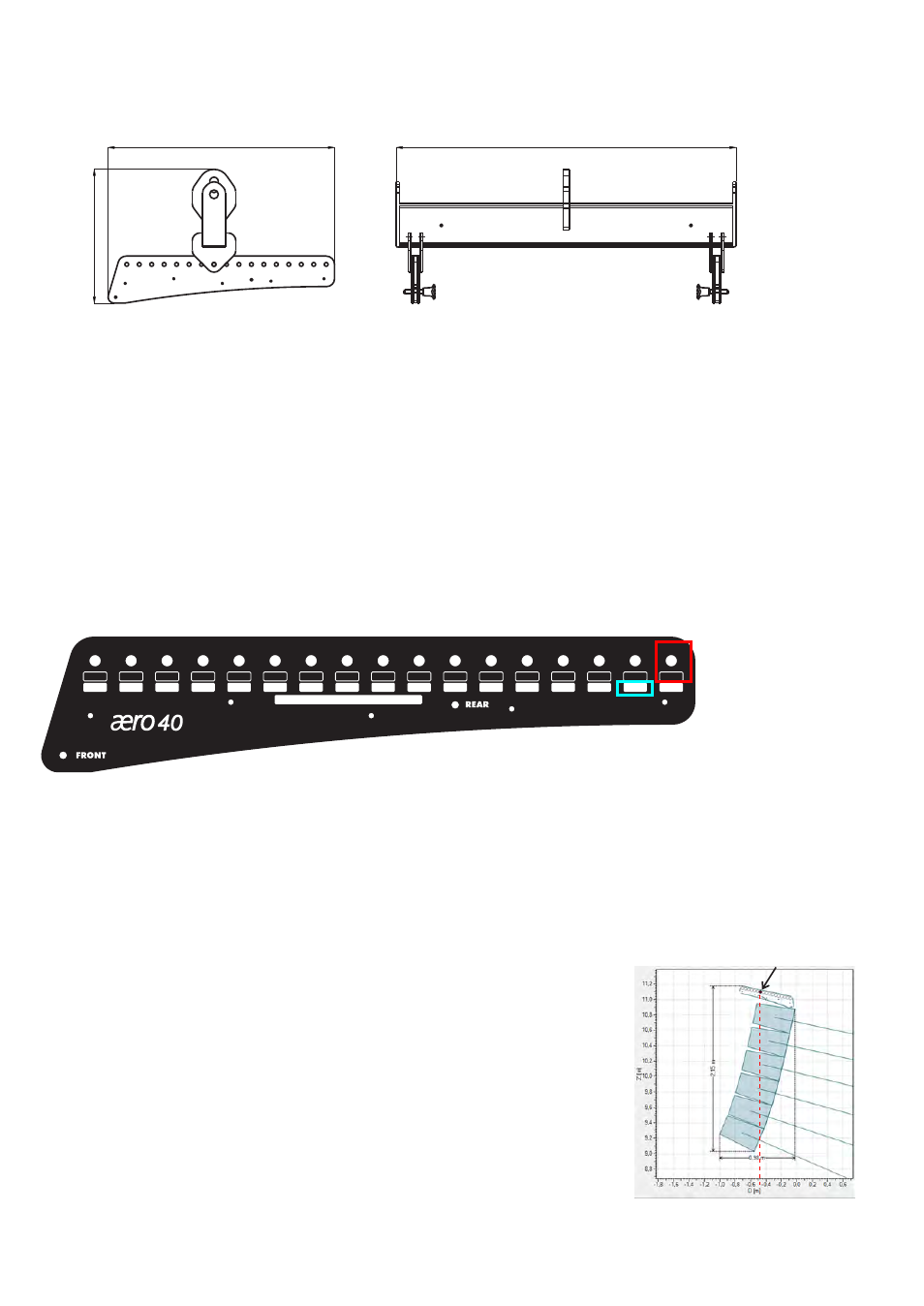

AX-aero40 is comprised of two side panels of steel and aluminum and a central bar (Pick-Up AX
aero40). It is a modular flybar set.
The maximum load capacity is 20 units * (pick-up point dependent) with a 5:1 safety factor.
For systems of 12 units or more, an additional bar should be added and the array will hang from
two lift motors for greater security and control over the angle of the system at all times.
Aero 40A load limitation: * On the side panels the maximum number of units that can be flown are
screen printed depending on the pick-up point marked by the software (or vertical axis of the center
of gravity of the system). Consulting the EASE Focus 2 software we will determine the number of
units which can be flown each pick-up point.
AX-aero40
Pick Up AX-aero40
pick-up point
maximum number of units
These limitations depend on the load of the vertical axis position of the center of gravity of
the system:
From points 1 to 13 regardless of whether you use a motor or two, a maximum of 20 aero
40A units can be flown.
At point 14, 19 units of aero 40A can be flown.
At point 15, 18 units of aero 40A can be flown.
At point 16, 17 units of aero 40A can be flown.
At point 17, 16 units of aero 40A can be flown.
In the image at the right you can see the vertical axis of the center of
gravity for the system passing through the pick-up point number 11.
The pick-up point shown in the software is placed in alignment with the
vertical axis of the center of gravity for the system. The position of this
vertical axis obviously depends on the number of boxes, the angle
between them and full vertical angle. The loading limitations are
displayed by the software and depend on the vertical axis that position
the center of gravity.
Pick-up point - vertical axis of the center of gravity
pick-up point
