Annex III - Advice for EASE Focus 2 use

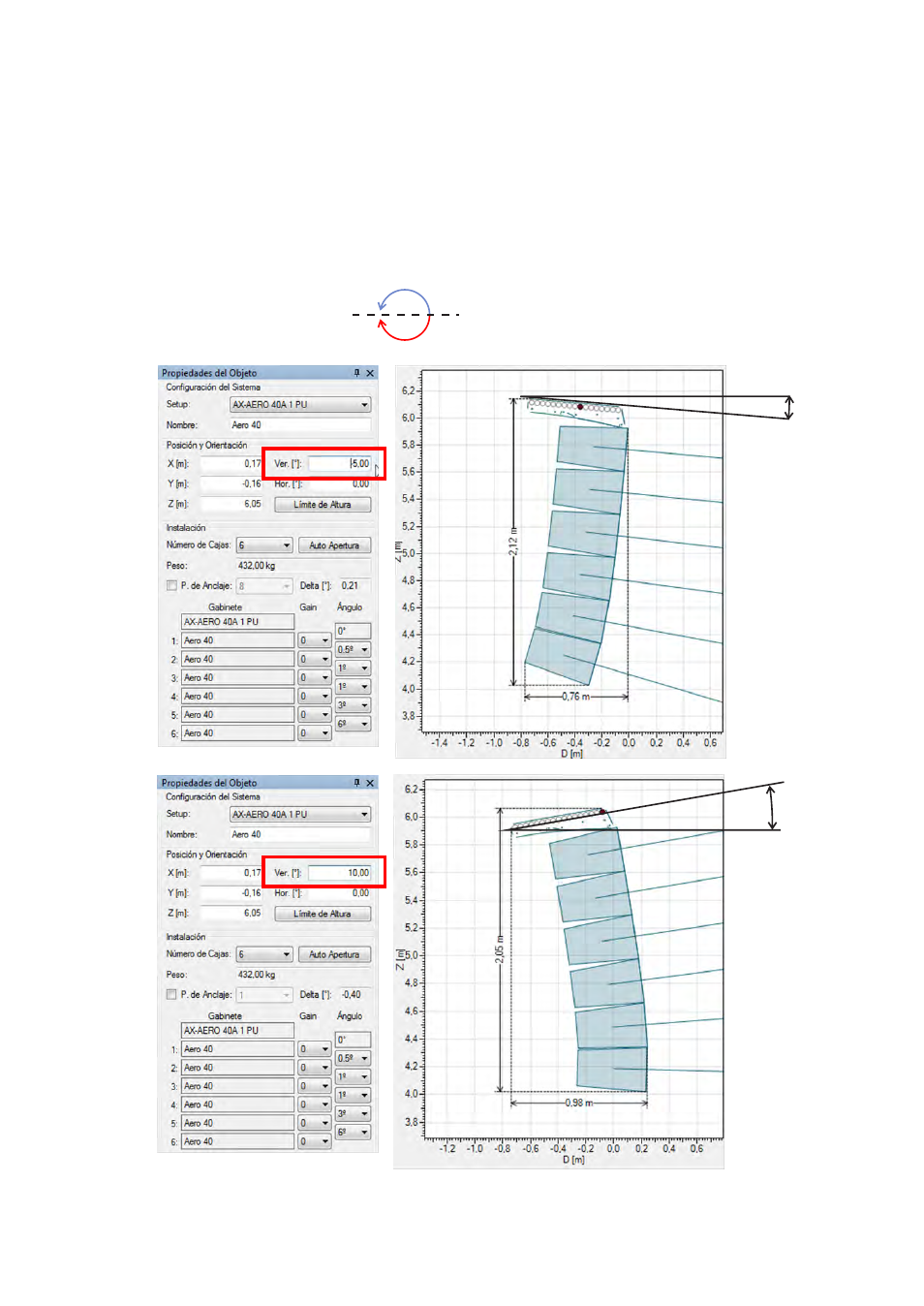

SYSTEM angles (cluster):
It’s important to understand the signs of the system's total angles in the EASE Focus 2
software program.
A cluster can be flown at different angles, depending on the number of cabinets,
the angle between them and the pick-up point. The angle in the software is
defined in section View [º]
Inclining systems forwards (downwards) result in a negative angle ( ). The systems
inclined upwards result in a positive angle ( ). -
+
6 aero 40A at -5º
-5º
+10º
6 aero 40A at +10º
+
-
Angle criteria of the cluster
