26 - Embedded Web Pages DeviceMaster Modbus Server User Guide: 2000535 Rev. C

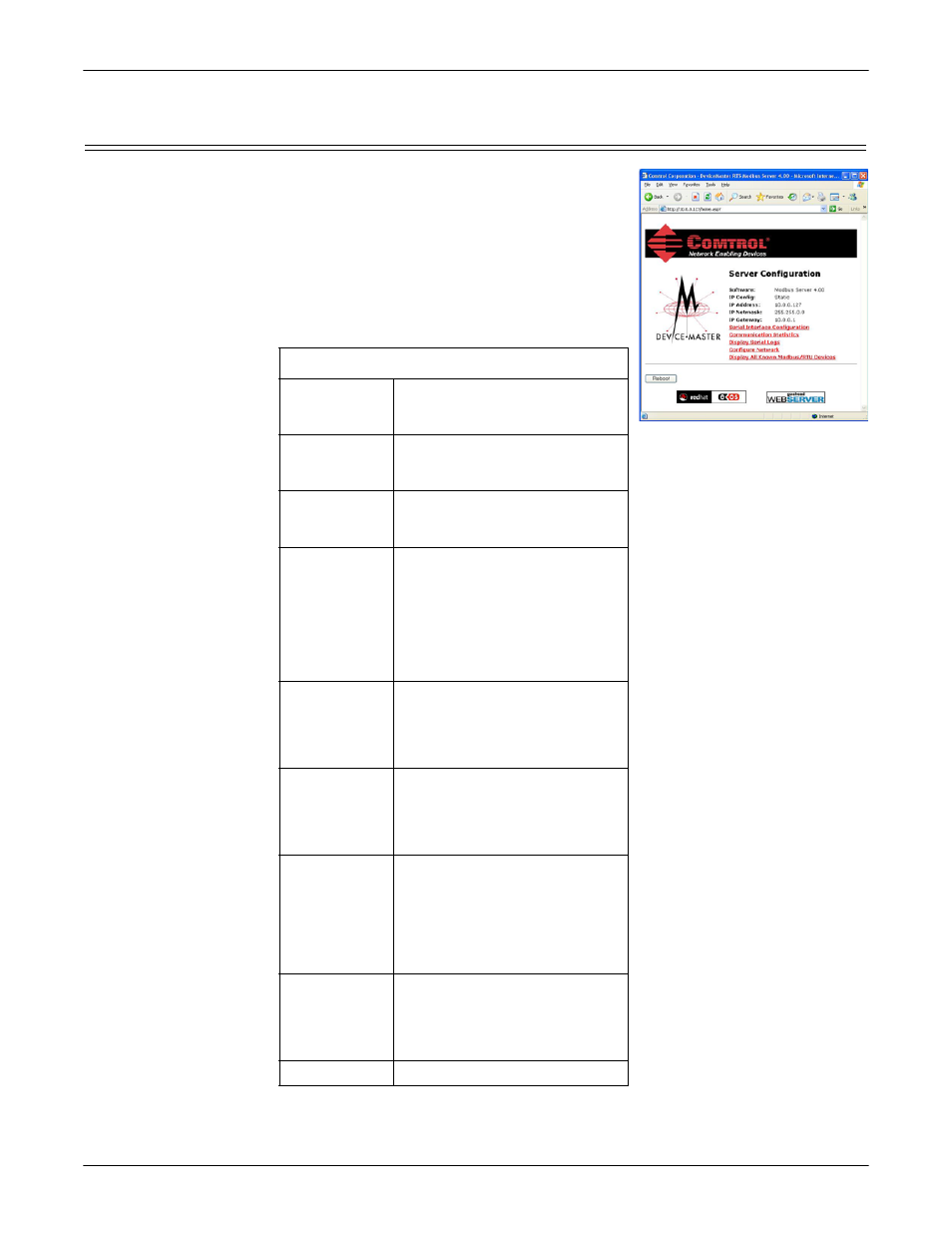

Server Configuration (Main) Page
Server Configuration (Main) Page
Access the main DeviceMaster web page (Server
Configuration) from PortVision DX or enter the
IP address of the DeviceMaster in the Address
box of your web browser.
The Server Configuration page displays the
software version and current network
configuration for the DeviceMaster.
In addition, the Server Configuration page links
to the configuration, statistics, and diagnostics
pages, which are discussed in the table below.
Server Configuration Page
Software
Modbus Server firmware
version currently running on
the DeviceMaster.
IP Config
Type of IP configuration
currently in use (static or
DHCP).
IP Address
IP Netmask
IP Gateway
IP address, netmask, and
gateway configured in the
DeviceMaster.
Serial Interface
Configuration
Opens the Serial Interface
Configuration Page (Page 27),
which provides an overview of
the serial interface settings and
provides access to the Edit Port
Configuration page for serial
port configuration on the
selected port.
Communication
Statistics
Opens the Serial Interface
Communications Statistics
Page (Page 27), which contains
serial interface and application
connection statistics.
Display Serial
Logs
Opens the Serial Interface Logs
Page (Page 36), which contains
the statistics and error
reporting information for each
port.
Configure
Network
Opens the Edit Network
Configuration Page (Page 31),
which can be used to modify
DeviceMaster network
configuration after initial
configuration using PortVision
DX.
Display All
Known
Modbus/RTU
Devices
Opens the Known Modbus/
RTU Device List Web Page
(Page 33), which displays all
known Modbus/RTU device
attached to all serial ports.
Reboot Reboots the DeviceMaster.
