RocketPort EXPRESS User Guide: 2000481 Rev. E Specifications and Notices - 23

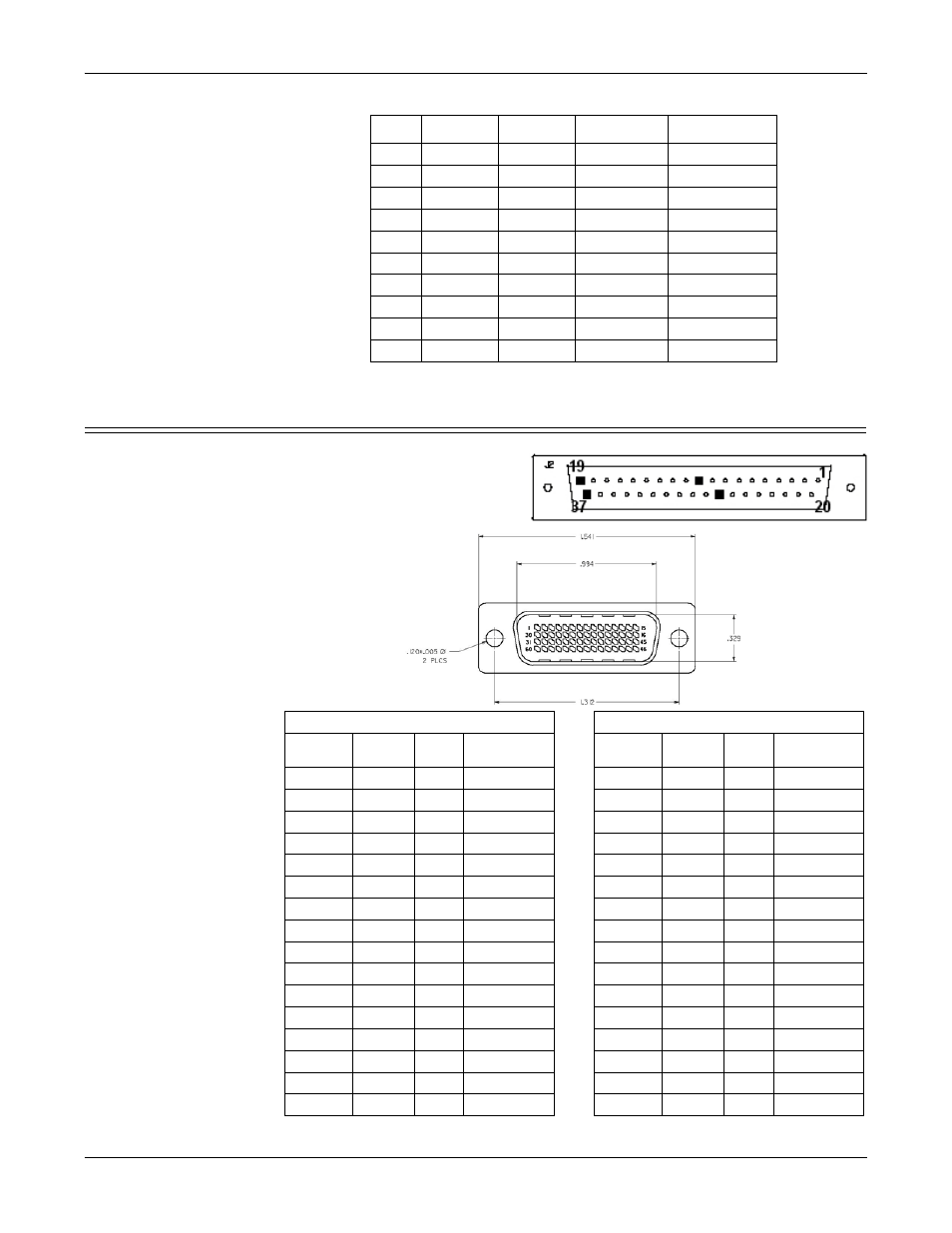

LFH60 and DB37M Multiplex Connectors DB9 and DB25 Interface Box Cable
LFH60 and DB37M Multiplex Connectors DB9 and DB25 Interface Box Cable
Use the following table if you
need to build an interface cable.
59 RXD7 RXD-7 RXD-7
60 CTS7 RXD+7 RXD+7
61 TXD8 TXD-8 TXD-8 TRXD-8
62 RI8
63 DCD8
64 DTR8
65 RTS8 TXD+8 TXD+8 TRXD+8
66 DSR8
67 RXD8 RXD-8 RXD-8
68 CTS8 RXD+8 RXD+8
Pin RS-232 RS-422 RS-485 FD RS-485 HD
Ports 1-16 Ports 17-32
DB37-1
Source LFH60
Dest
Pair Signal
DB37-2
Source LFH60
Dest
Pair Signal
J1-1 N/C J3-1 N/C
J1-2 J2-44 GND J3-2 N/C GND
J1-3 J2-43 GND J3-3 J2-37 GND
J1-4 J2-42 GND J3-4 J2-36 GND
J1-5 J2-41 GND J3-5 J2-35 GND
J1-6 J2-23 RESET J3-6 J2-8 RESET
J1-7 J2-46 1A RXCLK+ J3-7 J2-24 1A RXCLK+
J1-8 J2-16 2A RXDATA+ J3-8 J2-25 2A RXDATA+
J1-9 J2-17 3A RXDATB+ J3-9 J2-26 3A RXDATB+
J1-10 J2-18 4A RXCNVT+ J3-10 J2-27 4A RXCNVT+
J1-11 N/C J3-11 N/C
J1-12 J2-19 5A TXDATB- J3-12 J2-28 5A TXDATB-
J1-13 J2-20 6A TXDATA- J3-13 J2-29 6A TXDATA-
J1-14 J2-21 7A TXCLK- J3-14 J2-30 7A TXCLK-
J1-15 J2-22 8A TXCNVT- J3-15 J2-31 8A TXCNVT-
J1-16 J2-47 V+ J3-16 J2-54 V+
