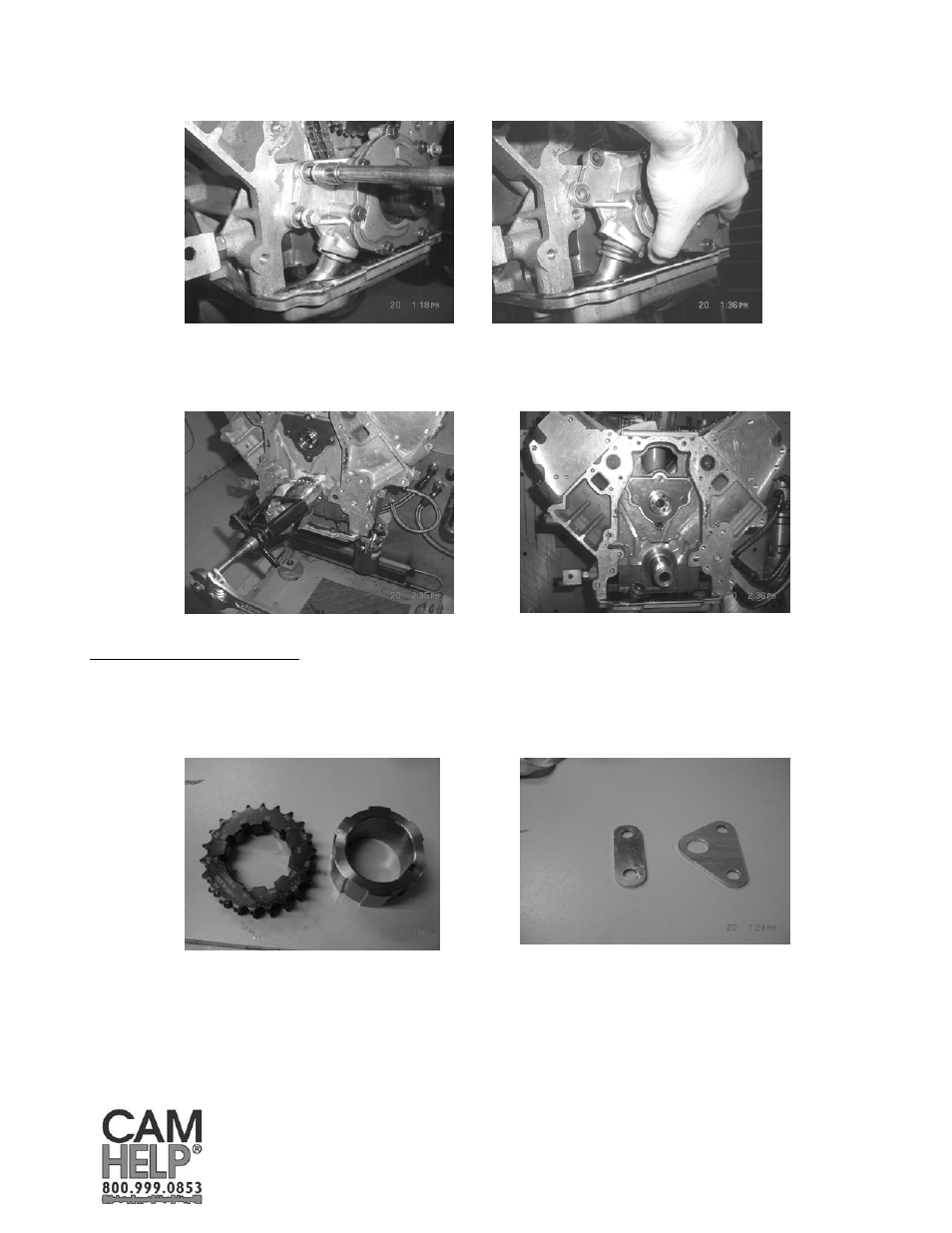

4. Remove four oil pump bolts to release oil pump.
5. Remove timing chain and cam gear.
6. Use gear puller to remove lower timing chain gear.
Double Timing Chain Install
1. Locate all parts for your new double roller timing chain. It includes the gears, timing chain, Torrington
bearing, along with new lower timing gear with 9 keyways (black), oil pump drive (silver) and two oil
pump spacers to move the chain away from the oil pump.
2. Take the lower timing gear, and set it to the desired cam position (advanced, straight up, retarted).
Locate your selection on the inner set of numbers on the lower timing gear, and slide it on the crankshaft
so your selected (inner) number goes over the crankshaft keyway.
