Clippasafe 114 Deluxe Extendable, Dual Fix, No-Trip Gate - Manual (Page 8)

3
4

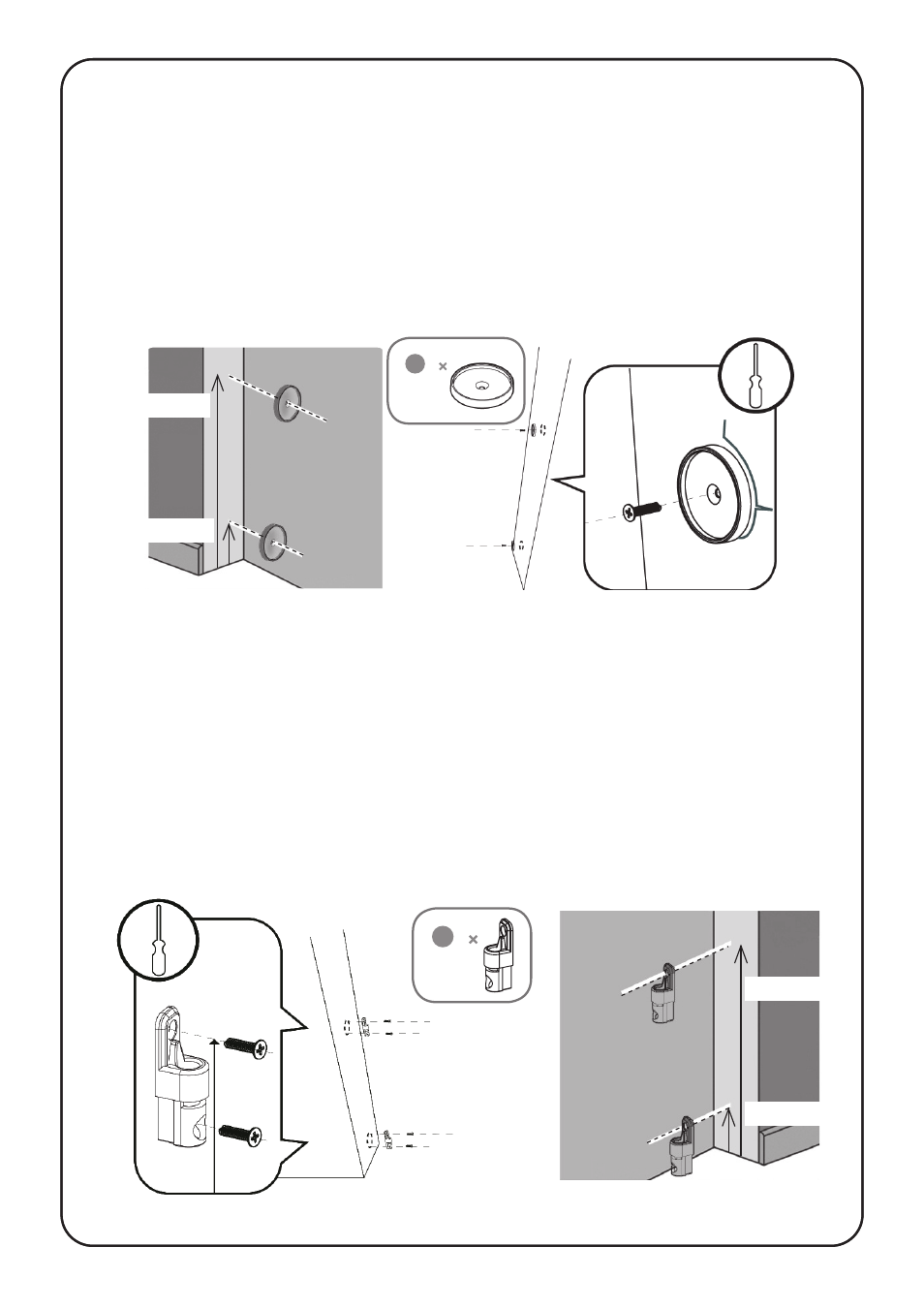

Mark the position for the wall fixings ‘C’ on one of the wall surfaces.
The hole for the lower wall fixing should be 53mm from the floor. The
hole for the upper wall fixing should be 717mm from the floor.
Fix the wall fixings ‘C’ using the appropriate fixings depending on the
surface available: wood screws for wooden surfaces, multi-use dowel and
concrete screws for concrete surfaces, multi-use dowel and cement screws
for cement surfaces, metal screws for metal surfaces.
These screws are not provided.
Mark the position for the hinges ‘F’ on the opposite wall surface to the wall
fixings. The top hole for the lower wall fixing should be 63mm from the
floor. The top hole for the upper wall fixing should be 728mm from the
floor. Fix the hinges ‘E’ using the appropriate fixings depending on the
surface available: wood screws for wooden surfaces, multi-use dowel and
concrete screws for concrete surfaces, multi-use dowel and cement screws
for cement surfaces, metal screws for metal surfaces.
These screws are not provided.
2 F
2 C
53 mm
717 mm
63 mm
728 mm
