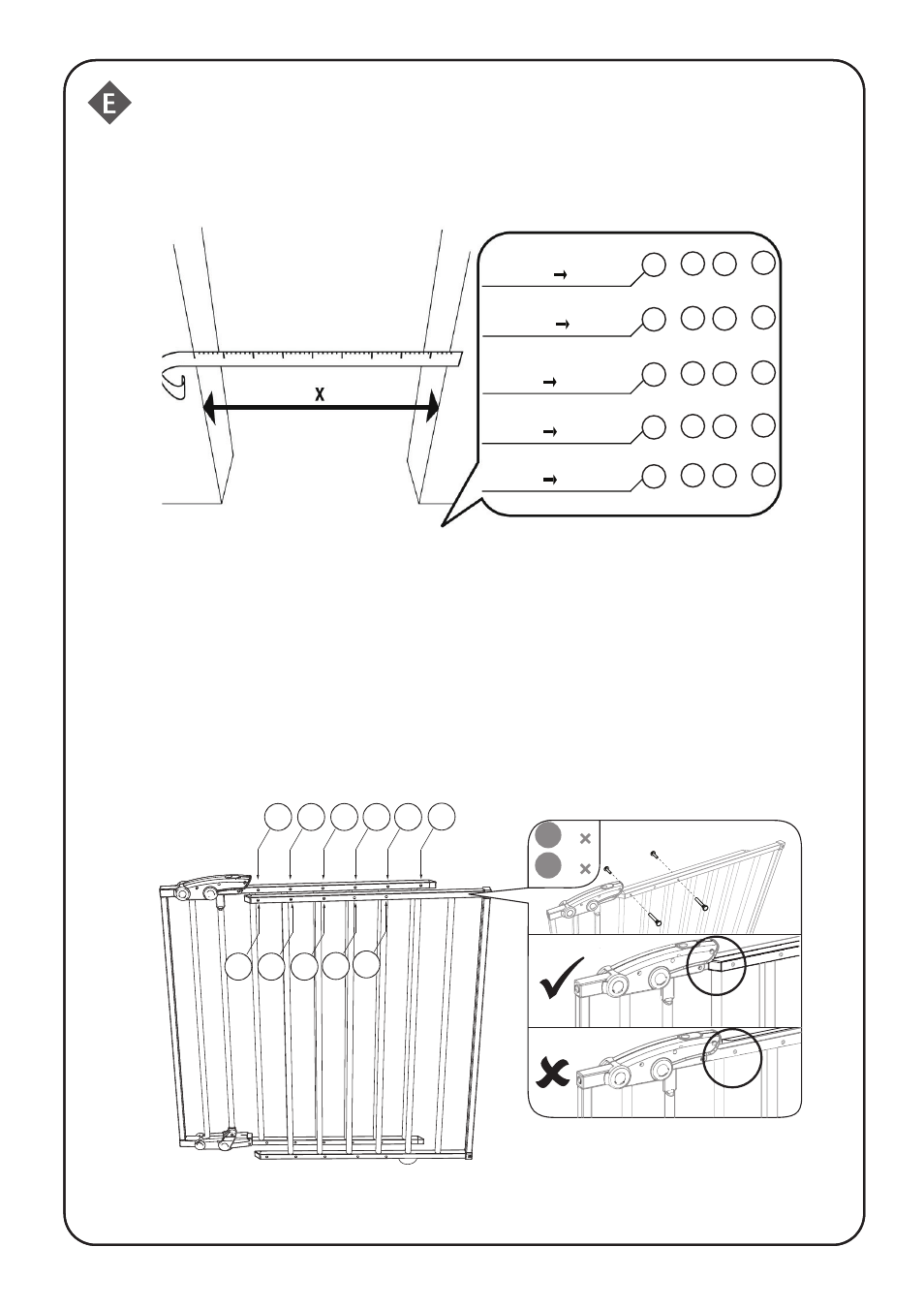

Wall Mounted Installation
Measure the width of the opening you wish to place the gate in.
Adjust the two gate sections to one of the five positions shown, according
to the size of the opening you intend to fit the gate in. Align the holes on
both gate sections. Secure the gate by fastening 2 ‘B’ screws into 2 ‘A’
screws on the top and bottom of the gate as shown in the diagram. Do not
attempt to fasten the gate using less than 4 screws. Make sure that the flat
surfaces of the two gates are facing each other.
X = 71,5 78,5 cm
X = 78,5 86 cm
X = 86 92 cm
X = 92 99 cm
X = 99 106 cm
+ A
B
C
D
E
1
1
1
+
+
+
+
1
1
+ E
F
F
F
F
+
+
+
+
3
2
4
5
5
A B C D E F
1 2 3 4 5
4 A
4 B
