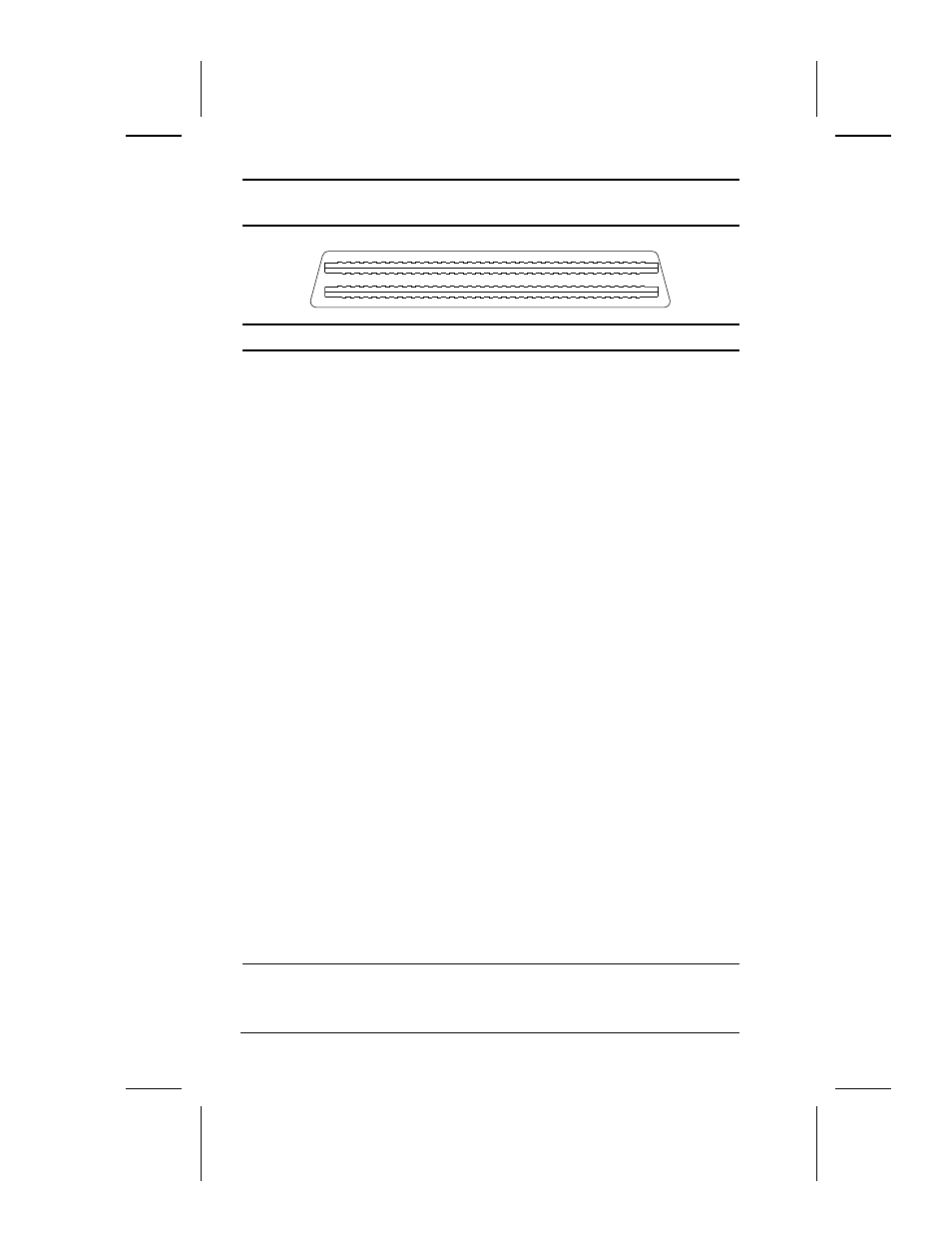

Table A-7
Docking Connector
31
61
91
1
120
90
60
30
Pin
Signal
Pin
Signal
1
EBOXL
29
XA3/R IN
2
AGND
30
MID0/MIC in
3
EBOXS1
31
AUGND
4
RED
32
XA0/L out
5
AGND
33
XSD/MIC SN
6
GREEN
34
XA1/R out
7
AGRD
35
GND
8
BLUE
36
GND
9
AGND
37
EXPCLK2
10
VSYNC
38
+3.3V
11
HSYNC
39
EXPCLK0
12
DDC DAT
40
+5V (8051VCC)
13
DDC CLK
41
EXPCLK
14
GND
42
EBOXS2
15
INDEX
43
GND
16
RDATA
44
EBOXL
17
TRK0
45
EBOXL /GND
18
WDATA
46
SRDY
19
WGATE
47
EBOXS1 /GND
20
STEP
48
RI1 EX
21
DIR
49
GND
22
POWER on
50
SLCT LD0
23
SYS reset
51
PE LD1
24
GND
52
ACK LD2
25
DSKCHG
53
BUSY LD3
26
+5 V (VDD)
54
GND
27
AUGND
55
STRB LD4
28
XA2/L in
56
ALF LD5
Continued
