Location of Controls

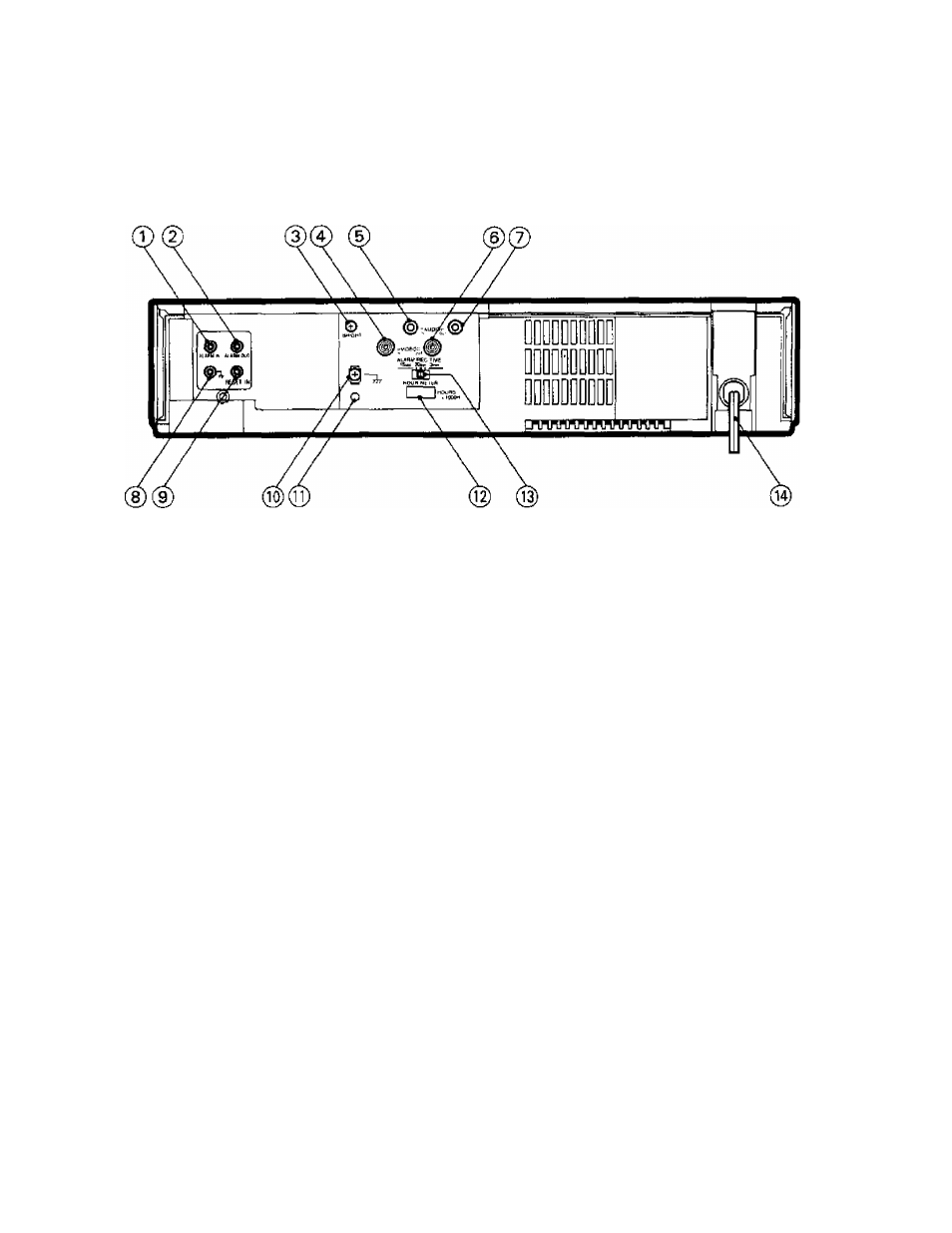

[Rear Panel]
ALARM IN terminal
An alarm to ground at this terminal begins the alarm mode
recording sequence.
ALARM OUT terminal
This terminal outputs alarm signals.
BRIGHT control
The on-screen display brightness may be set by rotating
The BRIGHT controL
0 VIDEO IN jack
This BNC jack is a terminated video input.
0 AUDIO IN jack
This RCA jack is an audio line input.
0 VIDEO OUT jack
This BNC jack is a video output used to drive a monitor,
switcher, or other equipment.
0 AUDIO OUT jack
This RCA jack is an audio line output used to drive other
audio equipment.
GROUND terminal
This is the ground terminal for the alarm input.
0 RESET IN terminal
Ground at this terminal will cancel an existing alarm
recording sequence.
0 GROUND terminal
This terminal is used to connect other equipment.
0 ALL CLEAR button
• Pressing this button will clear the entire time/date, and
timer program memory. The power will be turned off at
the same time. Pressing the POWER button will restore
power.
• Press this button if the VCR malfunctions,
0 10000 HOUR mater
The 10000 HOUR meter displays the total number of hours
this VCR has been in service.
0 ALARM REC TIME switch
The ALARM REC TfME switch is used to set the alarm
recording time to 1 5 seconds, 30 seconds, or 3 minutes.
0 POWER CORD
