EM 1-33004

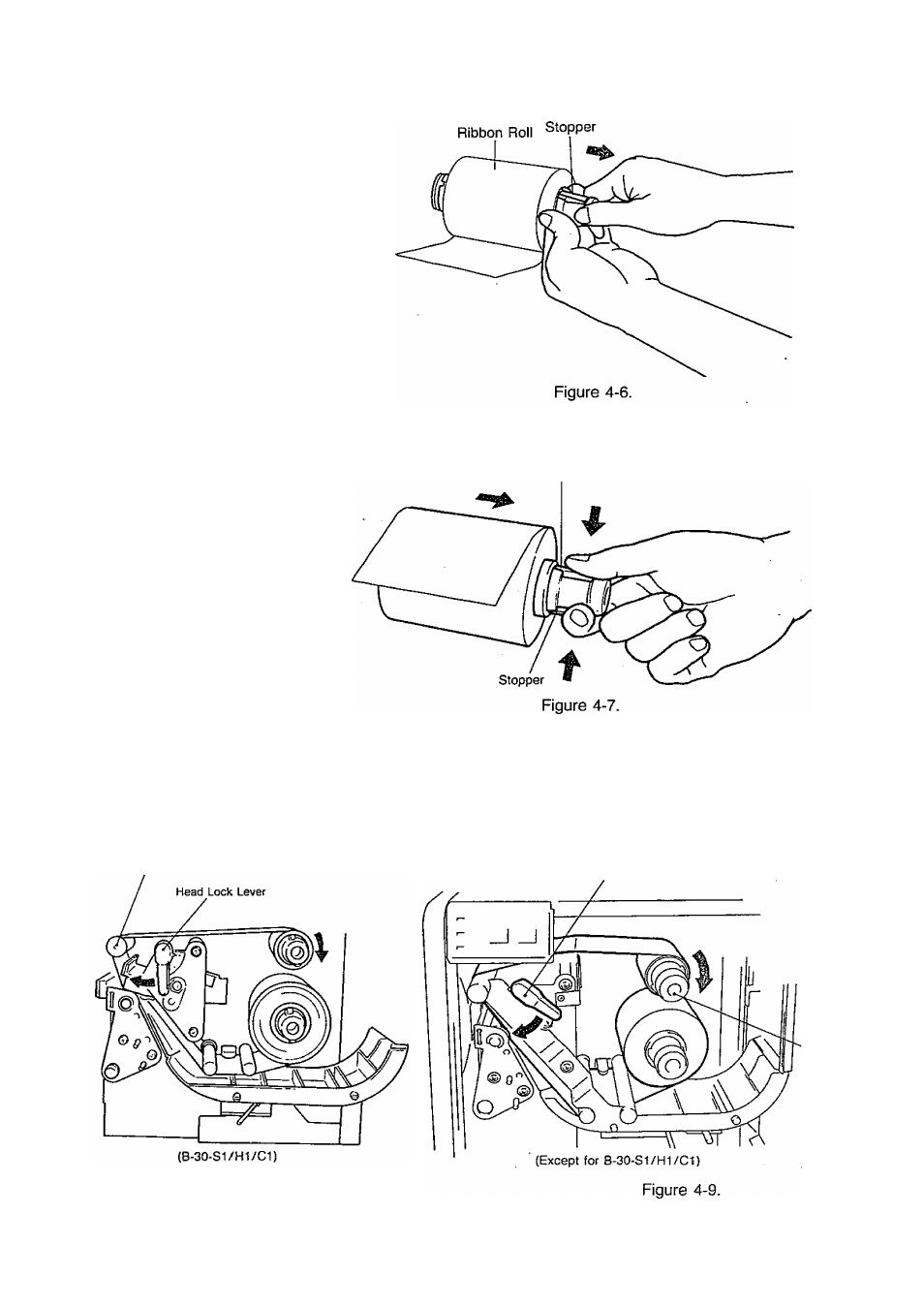

b. Pull the head of the shaft while holding the ribbon roll.
NOTICE: Depress the stoppers when removing the ribbon roll.
Stopper
Ribbon Shaft
7. Turn the rewind shaft as shown, to pull the ribbon tight.
8. Reload the supply (standard paper).
9. Move the head lock lever to the left to move the print head against the ribbon
and platen.
10. Close the front door.
Head Lock Lever
Figure 4-8.
Rewind Shaft
4-3
