EMI-33004

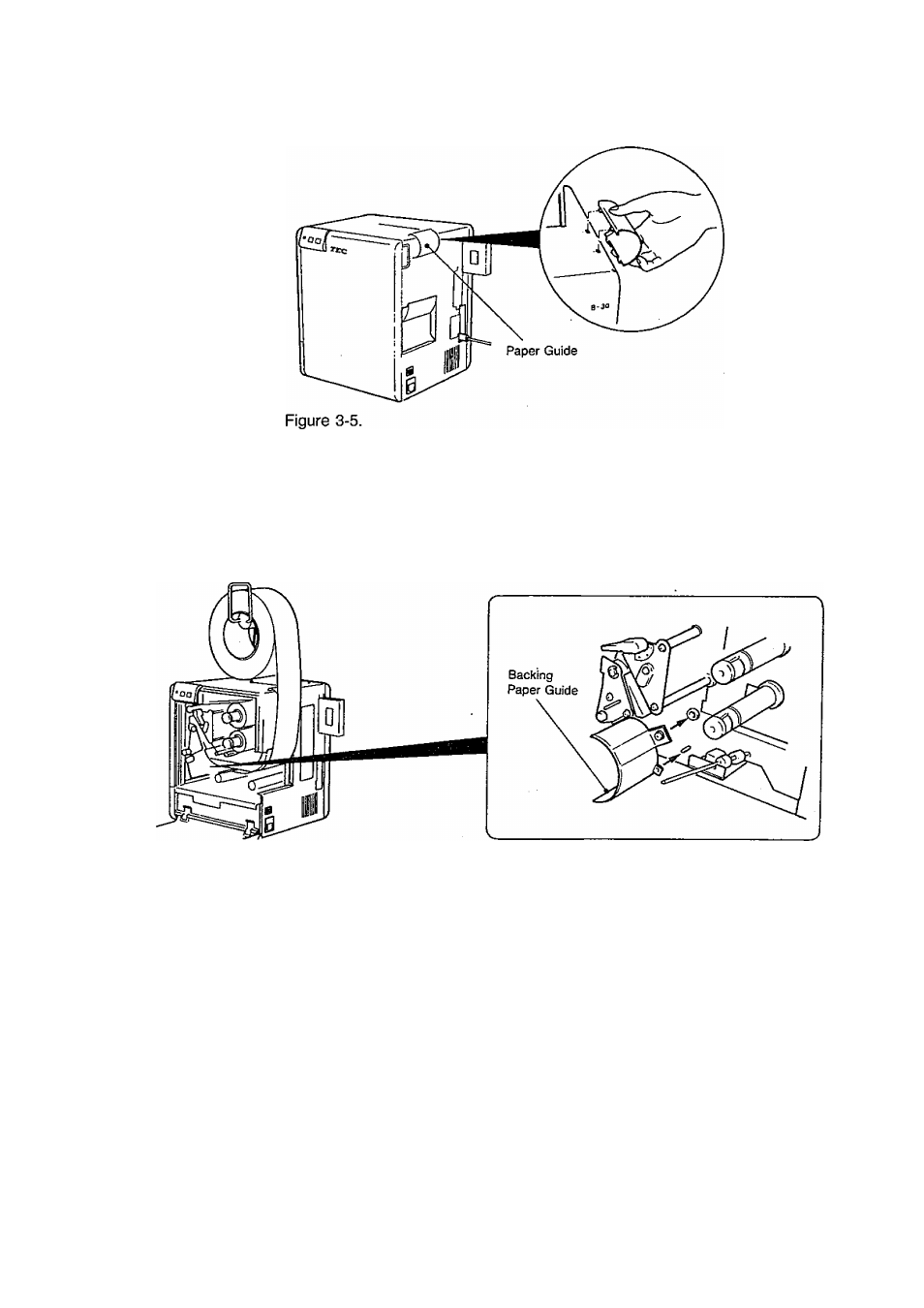

4. INSTALLING THE PAPER GUIDE
Place the paper guide in the position shown below.
5. INSTALLING THE BACKING PAPER GUIDE (for B-30-H1/H2/H3)
When issuing a label in the “On-demand” mode, mount the backing paper guide
in the position shown below and eject the backing paper from the lower exit on the
left side of the printer.
Figure 3-6.
3-3
