Paper Cover
Fig. 1
REPLACING THE INK ROLLER
When the journal print becomes too light to
read, replace the ink roller with a new one in
the following manner;
1. Open the Paper Cover. (Fig. 1)
2.

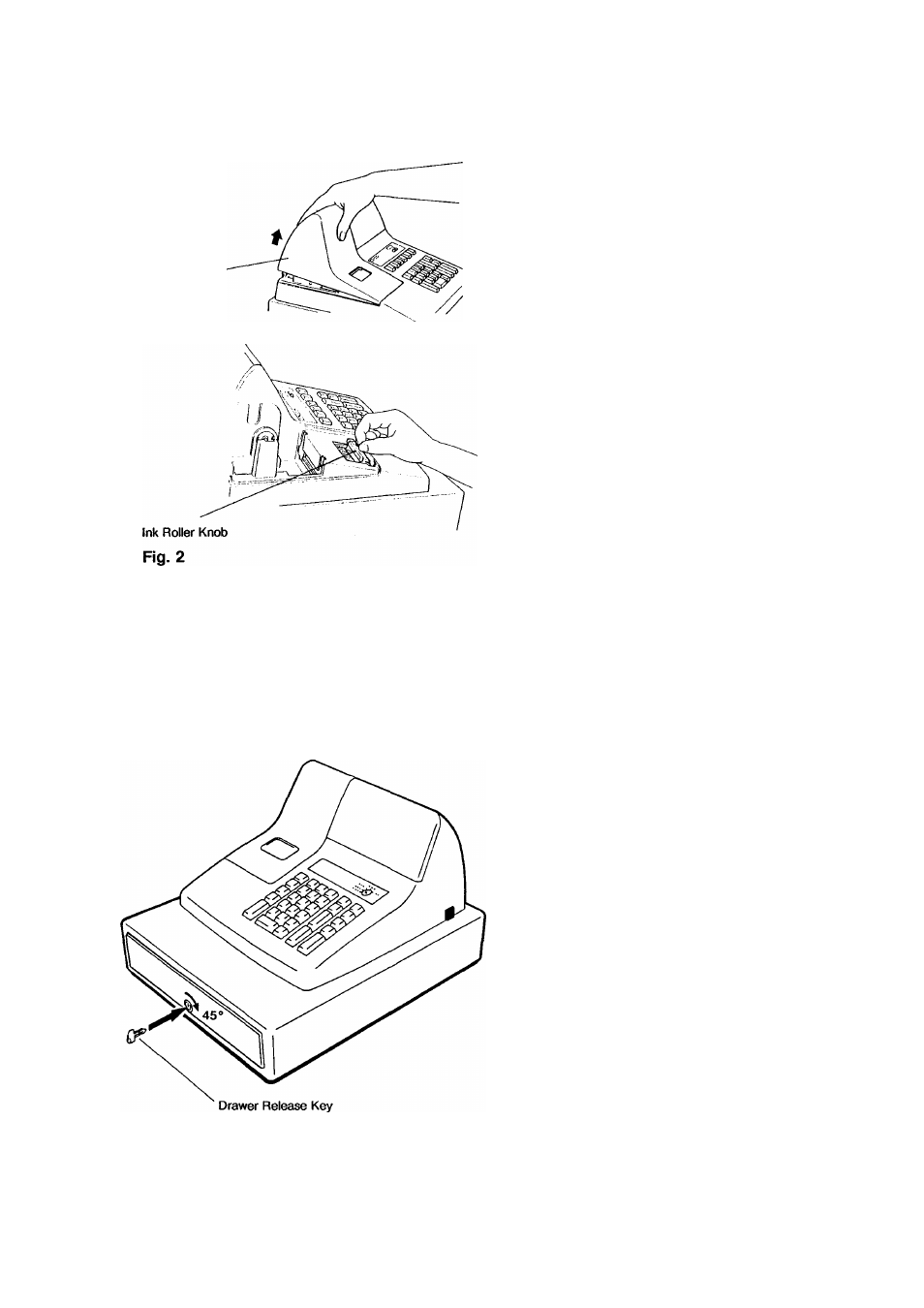

Pinch the Ink Roller Knob with your
fingers, pull it towards you and lift it up.
(Fig- 2)
3.
Install a new Ink Roller, and attach the
Paper Cover.
MANUAL DRAWER RELEASE AND
LOCK (for SP or MIDI DRAWER)
• Releasing
The drawer opens automatically when a
registration is made. In the event of a
power failure or other troubles, the
drawer can be opened in the following
manner.
1)
Insert the Drawer Release Key into the
drawer release lock and turn the key 45
degrees clockwise. The drawer will now
open. (Fig. 1)
2)
The Drawer Release Key can be taken
out by returning it to the original position.
3)
When the drawer is closed, it is
automatically locked and will not open
without the Drawer Release Key.
Fig. 1
-
