El-01402

12. MAINTENANCE

Paper Cover

Fig. 1

Paper Inlet

Journal Winding Reel

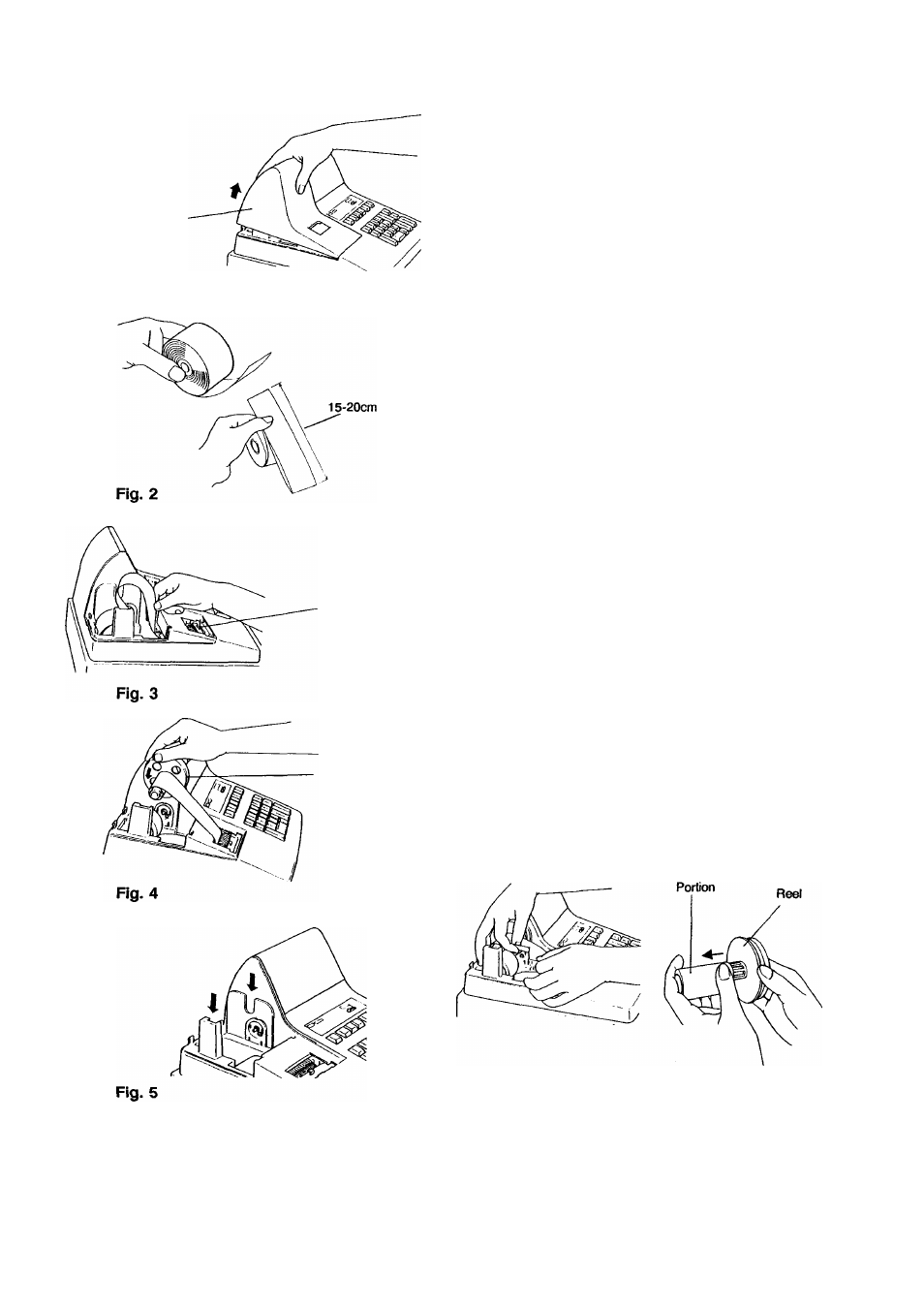

INSTALLING A NEW JOURNAL

ROLL

1. Remove the Paper Cover. (Fig. 1)

Fold the paper roll at the tip for 15 to

20cm so that the paper may easily be

inserted. Hold the paper roll in the

direction as shown in the figure. (Fig. 2)

Place the paper roll in the paper holder.

Insert the paper end into the Paper Inlet

located on the rear side of the printer,
and

press

the

[FEED]

key

the

keyboard until the paper end comes out

of the outlet. Meanwhile, the Mode Lock

should be set to the “REG” position.

(Fig. 3)

Wind up the paper end on the Journal

Winding Reel two or three times. (Fig.

Set the reel to the reel holder, and then

attach the Paper Cover. (Fig. 5)

REMOVING THE RECORDED

JOURNAL ROLL

1. Remove the Paper Cover. (Fig. 1)

Remove the Journal Winding Reel from

the holder. Tear off the recorded portion

of the paper, and draw it out from the reel

in the direction as shown in the figure.
(Fig. 6)

Recorded

Fig. 6

-48
