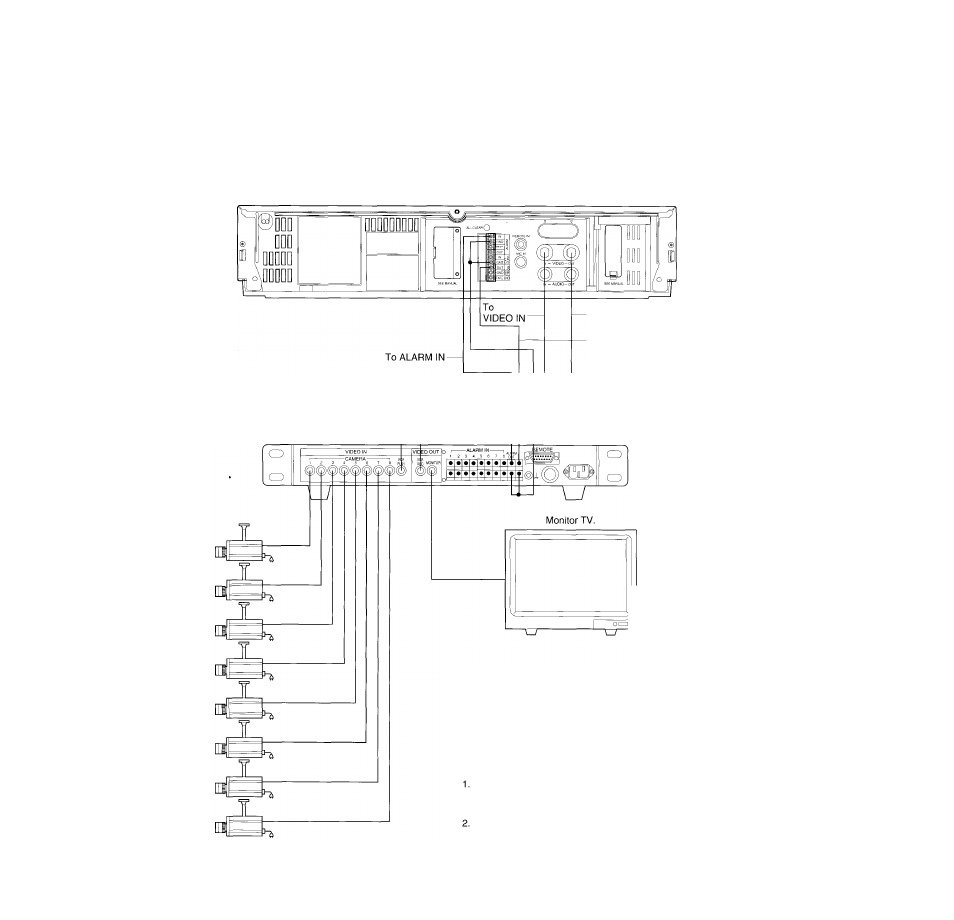

Typical Connection with the Sequential Switcher
When connected with a sequential switcher, set the alarm recording mode to MANUAL by menu screen.
For further details, consult the instruction manuals of the connected devices.
To VCR playback-
Frame Sequential Switcher To VCR REC ^
To ALARM
OUTPUT
To VIDEO OUT
To REC TRIGG. OUT
ToGND
<
QC
<
Q.
LU
CC
Q.
To REC TRIGGER INPUT
AC120V
To AC outlet
»in
When using the VCR connected to a frame sequential switcher, pay
attention to the following matters.
■ When playing back in the SPA12, EPA18 or SPA24 mode, mixing of
pictures from other channels may occur. If this occurs, play back in a
mode other than the SPA12, EPA18 or SPA24 mode.
■ If the following phenomena occur during playback in a time mode of
24 hours or longer, adjust by using the TRACKING button.
Mixing of signals from another channel.
Go to slow playback and press the TRACKING button to adjust
until the picture appears from the channel you want to view.
Picture waves up and down.
Press the TRACKING button during still picture playback and
adjust the picture until the picture stops waving up and down.
12
