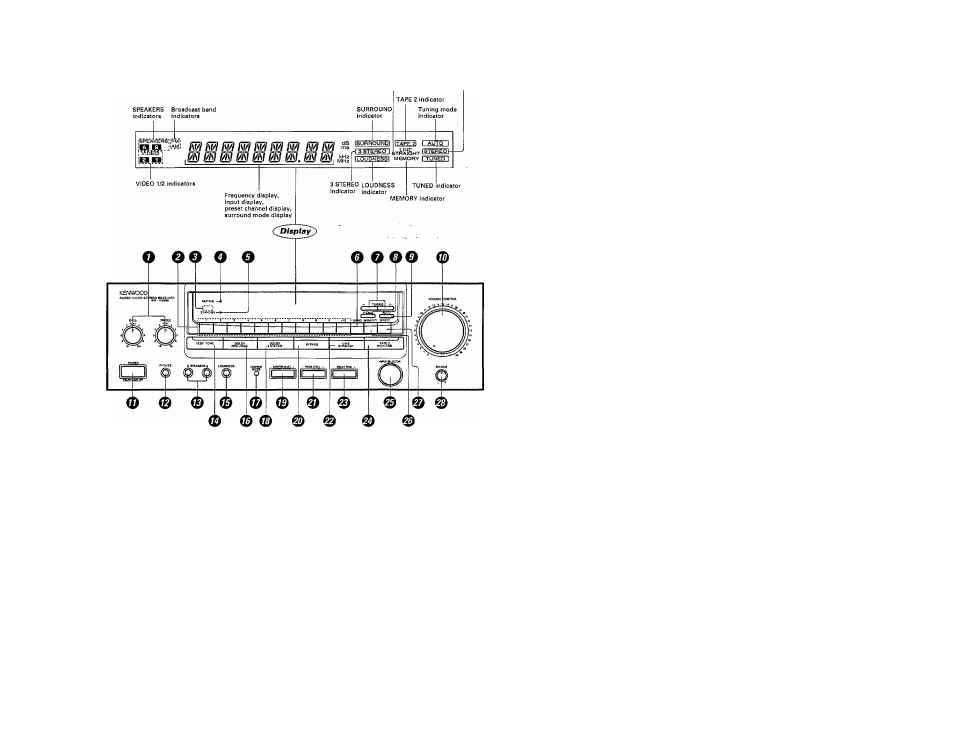

Tni-MiMìMIWltifilcai:

L!NE STRAIGHT

indicator

Reception mode tndicator

OTOÑE control knobs
ONumeríc keys
ORemote control sensor
OMUTING indicator
0STAND BY indicator
©BAND key

Press to switch the broadcast band.

OTUNING keys

Press to tune broadcast stations.

©P.CALL key

Press to recall a preset station.

0AUTO key

Press to select the auto tuning mode.

©VOLUME CONTROL knob
©POWER key
©PHONES jack

Used for headphone listening.

©SPEAKERS A/B keys

Press to select the A and/or B speaker sys
tems.

©TEST TONE key
©LOUDNESS key

Press to enhance low frequencies.

©DOLBY PRO LOGIC key
©CENTER MODE key

Press to select the center mode of the
DOLBY PRO LOGIC surround play.

©DOLBY 3 STEREO key
©CENTER LEVEL key
©BYPASS key

Press to cancel the surround modes.

© REAR LEVEL key

©LINE STRAIGHT key

Press to reproduce the source with a highei
sound quality.

©DELAY TIME key

Press to adjust delay time.

Turn to select the input sources.

Press to preset a station in the memory.

Press for direct station tuning based oi
numerical input.

Turn to adjust the volume balance between
left and right.

STANDYBYmode of POWER switch

When the power cord of this system is plugged into an AC outlet, the STAND BY indicator lights up regardless of. the ON/OFF setting ofthc

POWER switch. This indicates that a small amount of current is being supplied to the unit to back up the memory contents. This mode is referred;

to as the Stand By mode. While the STAND BY indicator is lit the power of the system can be switched ON/OFF from the remote control unit.
