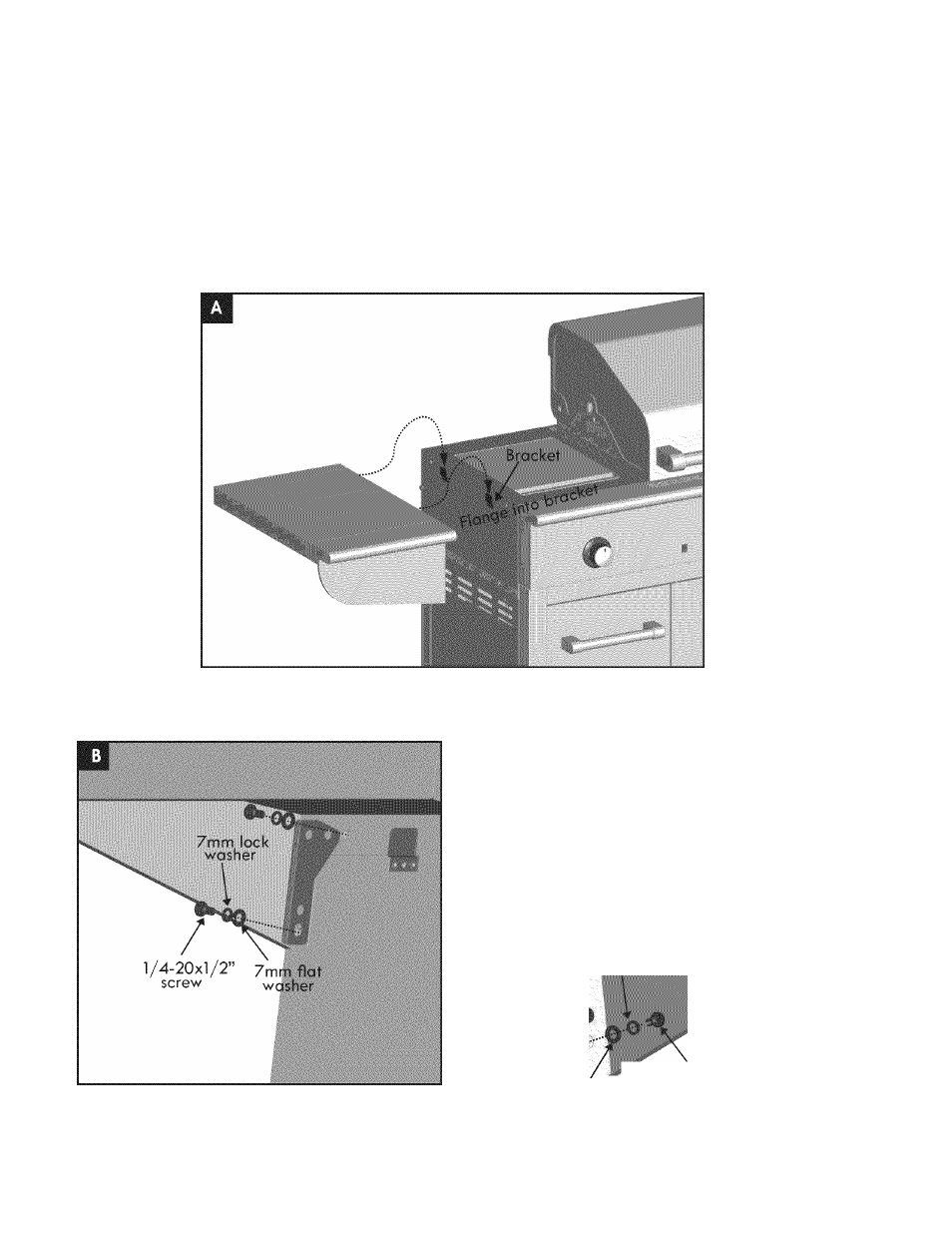

Insert

flange

on left side shelf into side shelf brackets, shown A.

Attach left side shelf rear using two 1/4-20x1/2” screws, 7mm lock washers and 7mm

flat

washers,

shown B.

Attach left side shelf front using three 1/4-20x1/2” screws, 7mm lock washers and 7mm

flat

washers,

shown C.

1/4-20x1/2”

screw

Qty.5

7mm

lock

washer

Qty.5

7mm

flat

'vasher

Qty.5

.....

7mm lock

7mm

flat

washer

1/4-20x1/2”

screw

464224211 • 15
