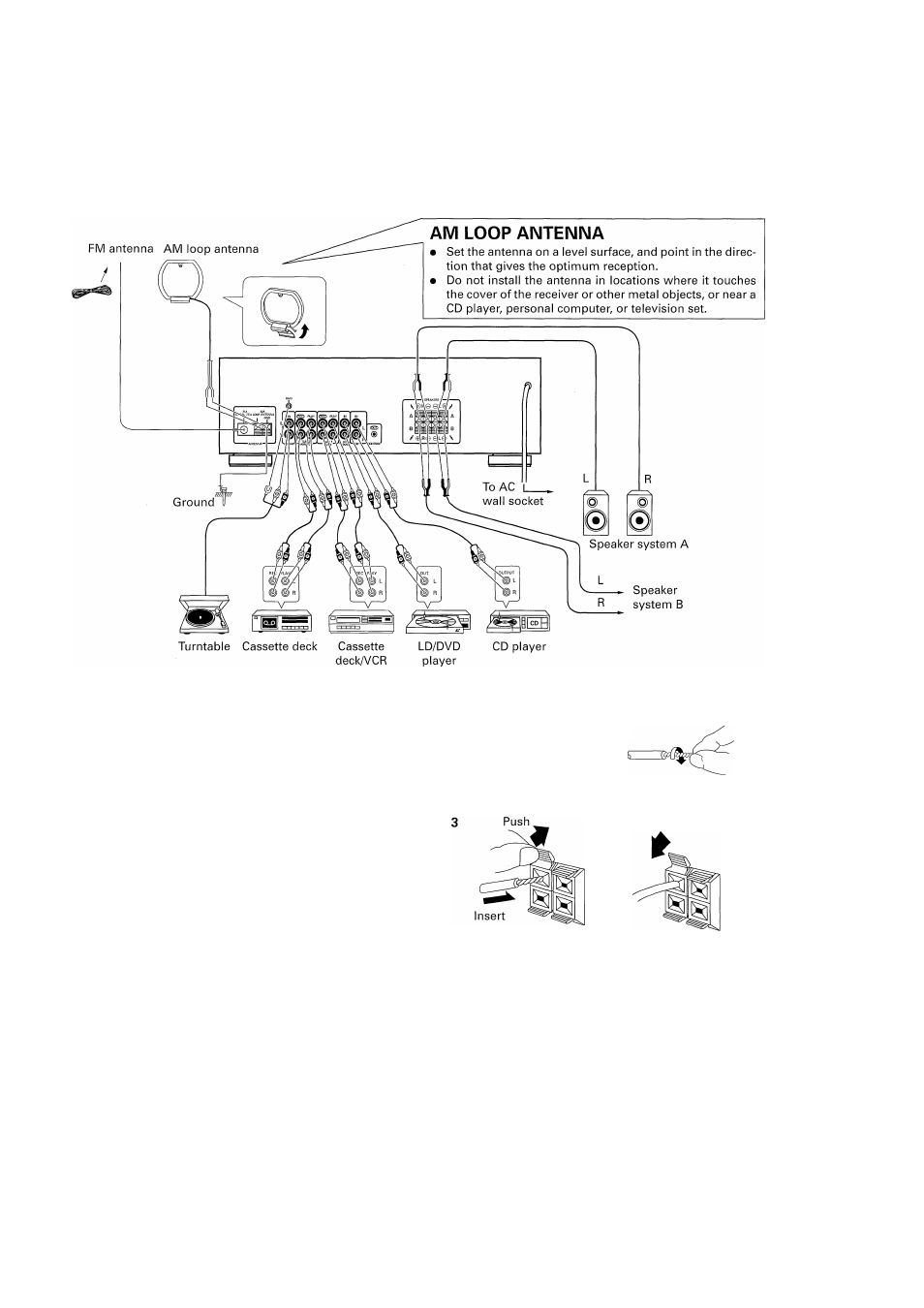

CONNECTIONS

• Before making or changing the connections, switch off the power switch and disconnect the power cord from the AC outlet.

Connecting the input/output cords
When another stereo component (purchased separately) is con

nected, note the following instructions:

• Connect the plugs properly. Faulty connections can cause noise

and also breakdowns and failures.

• The white terminal is for the left channel and the red terminal

is for the right channel.

Connecting the speaker cords

1 2

Cutter

Twist the strands

Speaker cord

Pull

NOTES ABOUT SPEAKER CONNECTIONS

When connecting to only speakers A or speakers B, use

speakers with a nominal impedance of between 4iTand 16
Q.

If you connect to both speakers A and B, use speakers with

a nominal impedance between 8 H and 32 Q.

Be sure that connections are secure. Check to make sure

that wires do not protrude from their terminals.

Do not allow the speaker cords to become short-circuited.
Damage may result to your unit.
Do not attempt to connect two sets of speakers to a single

side (A or B). When using two sets of speakers, connect
one set to terminals A and the other set to terminals B.
