RDS (Radio Data System) BROADCAST RECEPTION
RDS DATA DISPLAY
2
2

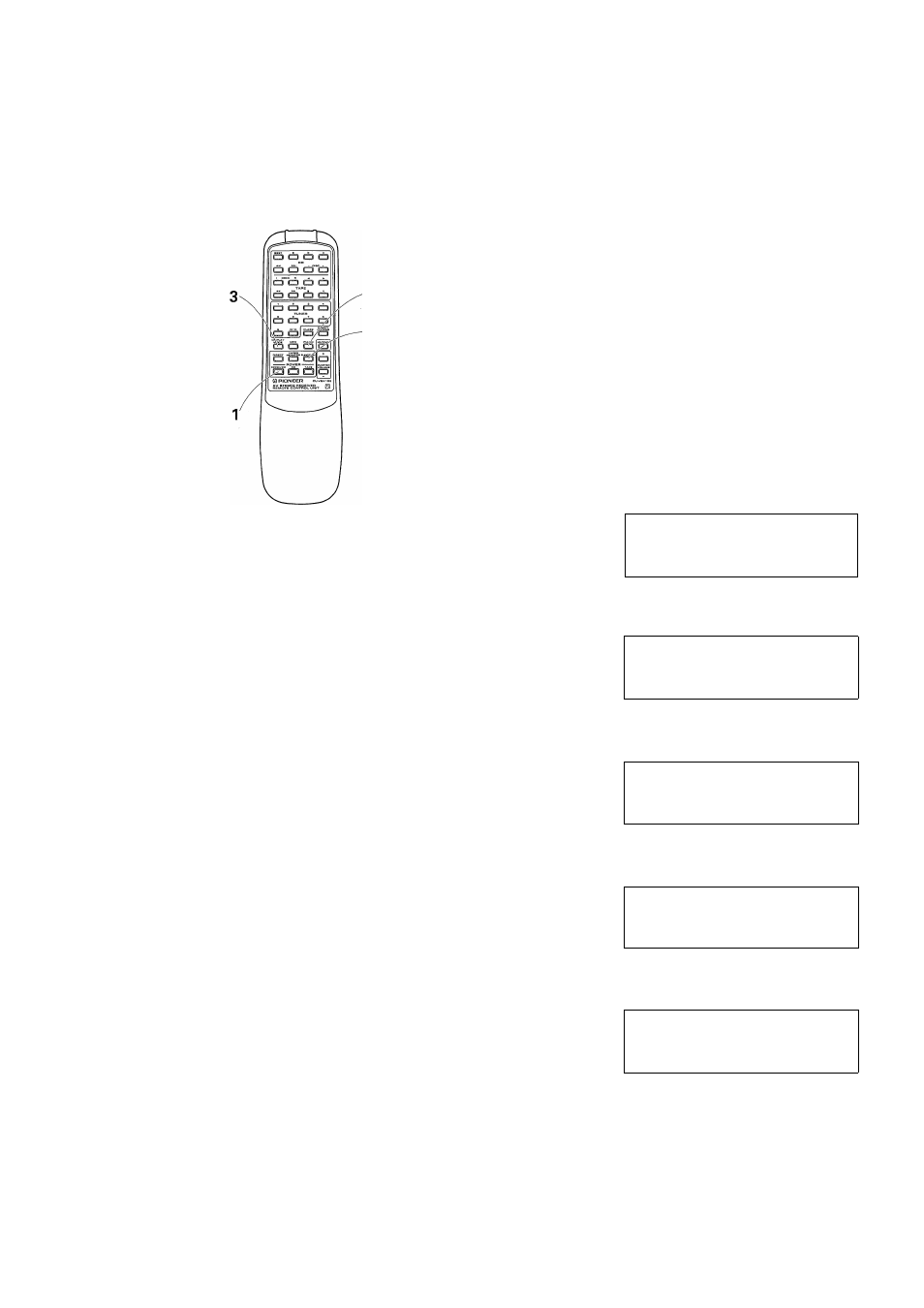

1. Turn on the power and select the TUNER function.
2. Select FM with the FM/AM selector button.
If the received broadcast transmits RDS data, the RDS indicator
lights, and the data of the displayed mode is automatically dis
played in the bottom right of the display.
3. Press the DISPLAY MODE button and the display
changes.
RT mode......... "RT" flashes and the following data is dis
played in sequence.
RT (Radio Text) scroll display -►PS (Program
Service Name) -►Returns to RT; repeat.
PS mode......... "PS" flashes on the display, and then the
^
broadcast station name is displayed.
PTY mode...... "PTY" flashes on the display, and then PTY
data is displayed. Indicating the type of
program.
FREQ mode
(Frequency)
NOTES:
•
In the RT mode, should any noise be picked up while display
ing the RT scroll, some characters may temporarily be incor
rectly displayed.
•
In the RT mode, when no RT data is transmitted from a broad
cast station, "NO RADIO TEXT DATA " is displayed once and
after that the PS data is displayed.
•
In the PTY mode during RDS broadcast reception, there are
cases where "NO TYPE" is displayed. In this case, it will auto
matically switch to PS mode after a few seconds (if PS mode
is available.)
•
When reception conditions are strong, and RDS data is incor
rectly displayed, press the RF ATT button.
After that, RDS data may be correctly displayed.
•
Depending on the broadcast station, numerous program serice
names (PS) may be transmitted in succession. In this case,
when you switch to the RT mode, only some of the PS data
will be displayed, so switch to the PS mode.
•
When the RDS indicator is not lit, and you are in the RT mode,
only station names stored in memory manually, if any, will be
displayed.
1 DIRECTI
|CL&SS>m STEREO TUNED
L OFF-*
n
1 V
T
i
— ch
jDIRECTj
r 1
STEREO TUNED
1 1
r
}j
— ch
♦
I^DIRECTJ
11
JJ
ri
1”
JJ /„
1
1
fci^ss>m
1"
|i//
/ / (
— ch
r.7
/
T
'/
1 1
|CLASS>m
STEREO TUNED
— ch
I^DIRECTJ
Il I
/
i:: 11
L hi „1
|CLflSS>m
STEREO TUNED
— ch
13
