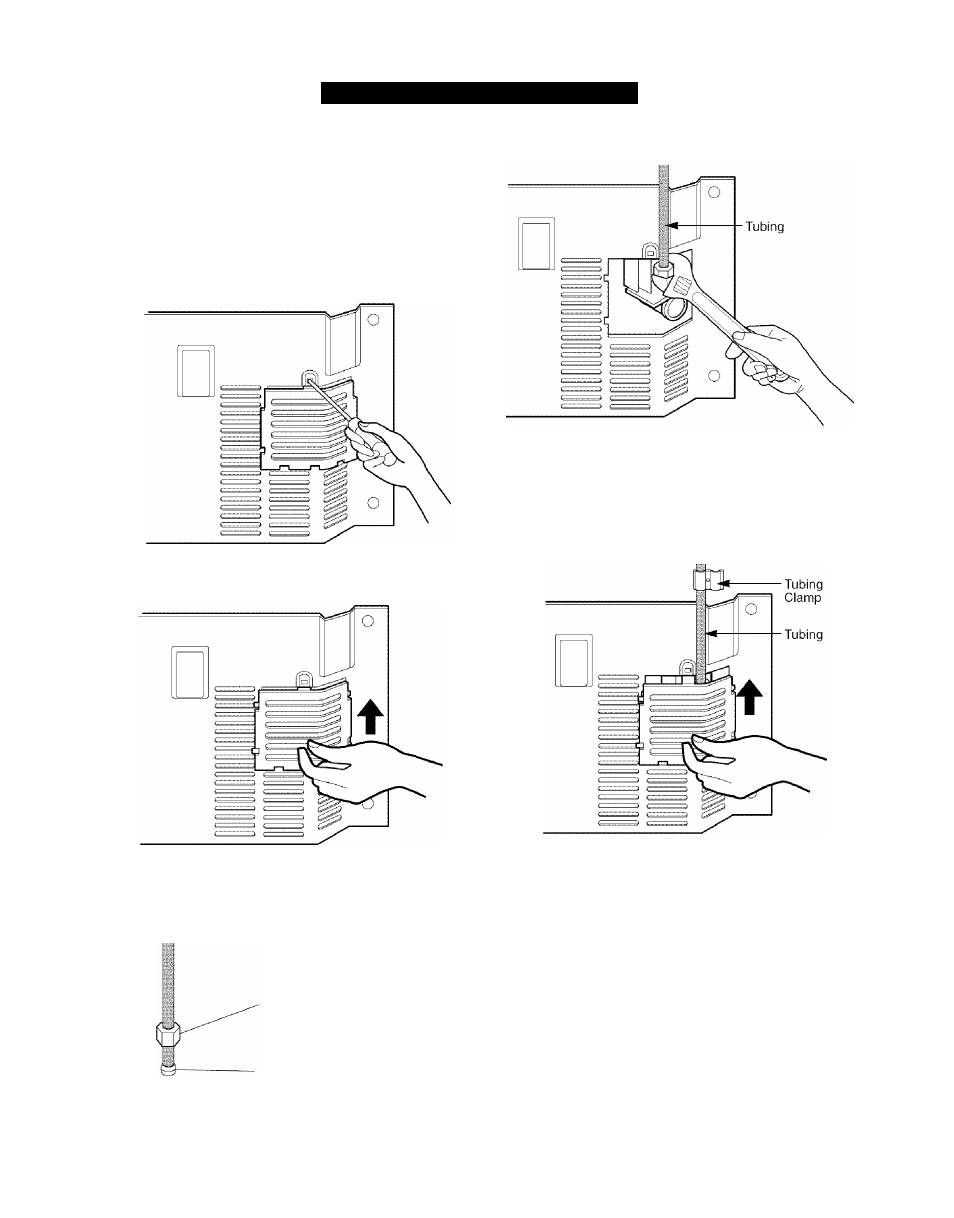

CONNECTING THE WATER LINE

9. CONNECT THE TUBING TO THE

REFRIGERATOR

Removing and Replacing Valve Cover

NOTE:

• Before making the connection to the refrigerator, be

sure the refrigerator power cord is not plugged into
the wall outlet.

1. Loosen screw on top of plastic cover.

4. Insert the tube into the valve and fasten with wrench

as shown in the figure below.

A CAUTION: Check to see if water dripping occurs at

water line connections.

5. Bend the tube upwards and fasten it into the clamp

provided to hold it in position. Replace the cover

and tighten the cover screw.

2. Lift off the cover by slightly pushing up.

3. Place a compression nut and a ferrule(sleeve) onto

the end of tubing.

Compression Nut

Ferrule (sleeve)
