2. Replacing Refrigerator Door

► Right Door

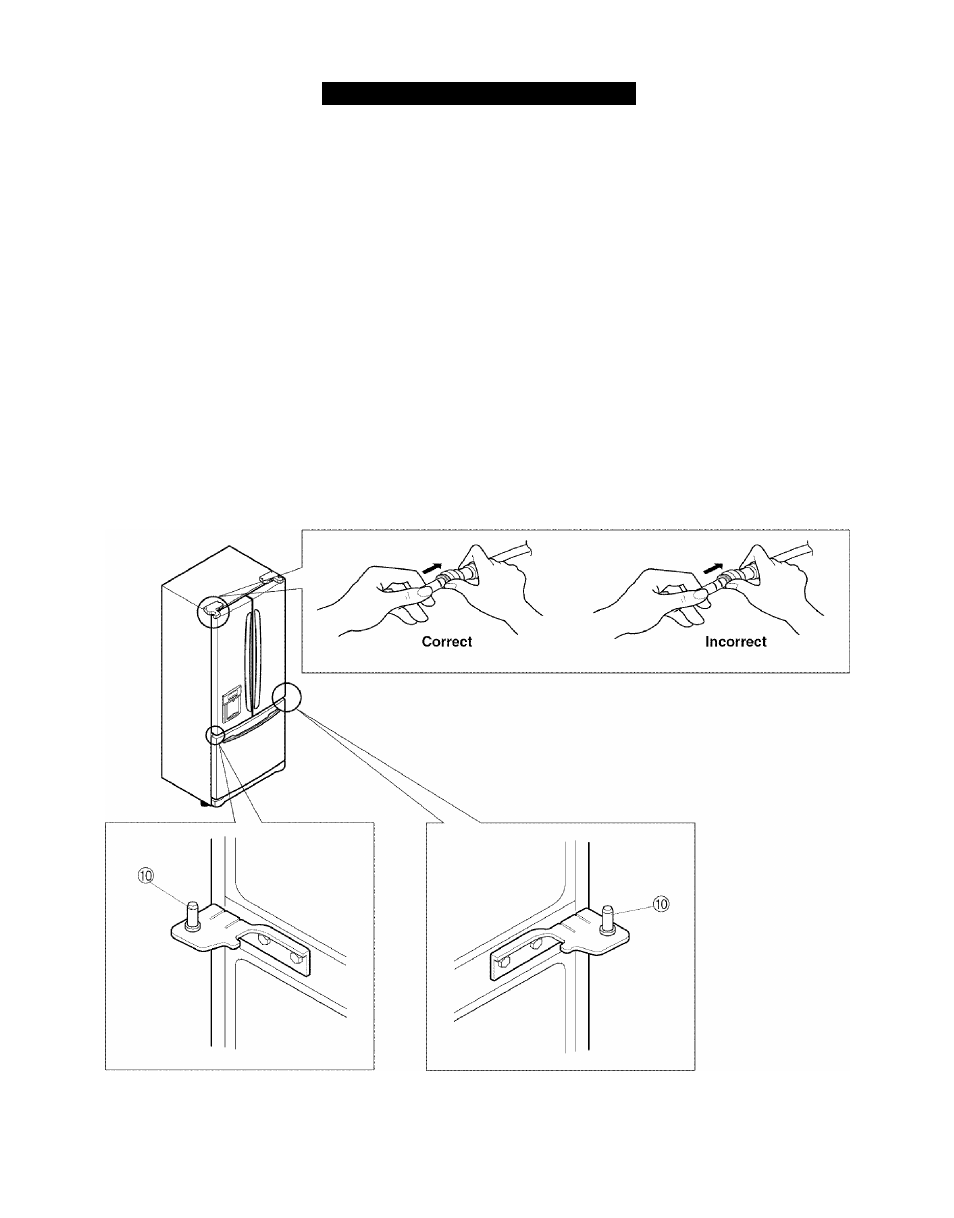

1. Lower the door onto middle hinge pin (10).

2. Fit top hinge (8) over hinge lever latch (9) and into place. Insert hinge lever (7) under lever latch. Rotate lever

counterclockwise to secure hinge.

3. Install the grounding screw (6) and connect the three wire harnesses (5).
4. Connect door switch wire harness (2).
5. Hook tab on door switch side of cover under edge of wire opening in cabinet top. Position cover (3) into place. Insert

and tighten cover screw (1).

► Left Door

1. Lower the door onto middle hinge pin (10).

2. Fit top hinge (8) over hinge lever latch (9) and into place. Insert hinge lever (7) under lever latch. Rotate lever clockwise

to secure hinge.

3. Install the grounding screw (6) and connect the three wire harnesses (5).
4. Connect door switch wire harness (2).
5. Insert the water supply tube (3) into the connector tube until you see only one scale mark.

(Fully insert the tube over 5/8”(15mm)).

6. Hook tab on door switch side of cover (3) under edge of wire opening in cabinet top. Position cover into place. Insert

and tighten cover screw (1).
