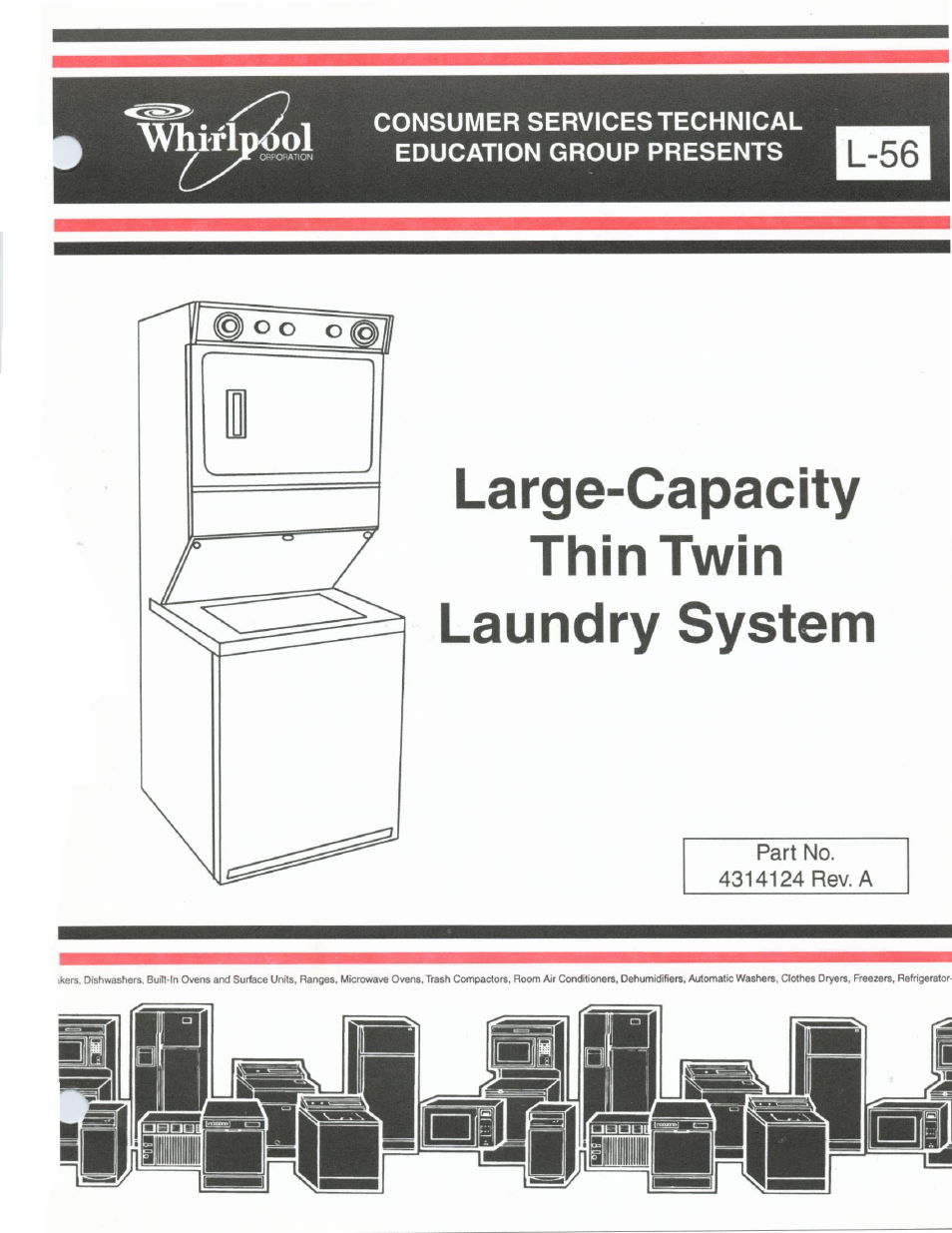

Large-capacity thin twin laundry system
Text mode
Original mode
Whirlpool Thin Twin User Manual | 40 pages
Pages:
1
2
3
4
5
6
7
…
40
wrong Brand
wrong Model
non readable
Table of contents
Document Outline
AiVhirlDool
INTRODUCTION
GOALS AND OBJECTIVES
TABLE OF CONTENTS
PERSONAL INJURY HAZARD
A WARNING
Fire Hazard
Potential Fire Hazard
INSTALLATION CONSIDERATIONS
REMOVING THE LAUNDRY SYSTEM FROM THE CARTON
4. Wet the inside of the drain hose with water. DO NOT USE ANY OTHER LUBRICANT.
Exhaust Requirements
COMPONENT ACCESS
Washer Access
Washer Mechanism Removal
Dryer Toe Panel Access
Door Front Panel Access
Dryer Belt Replacement
TROUBLESHOOTING and DIAGNOSIS
TROUBLESHOOTING and DIAGNOSIS
COMPONENT TESTING
WATER INLET VALVE
WASHER DRIVE MOTOR
START CAPACITOR
WATER TEMPERATURE SWITCH
To test the water level switch, remove the wires from the water level switch.
WASHER TIMER
DRYER MOTOR and BROKEN BELT SWITCH
THERMAL CUT-OFF (Electric Models Only)
ELECTRIC HEATING ELEMENT
GAS BURNER
±1=
±=i
TECHNICAL TIPS
MODEL/SERIAL NUMBER DESIGNATIONS
M
03
100003
Whifl
