1

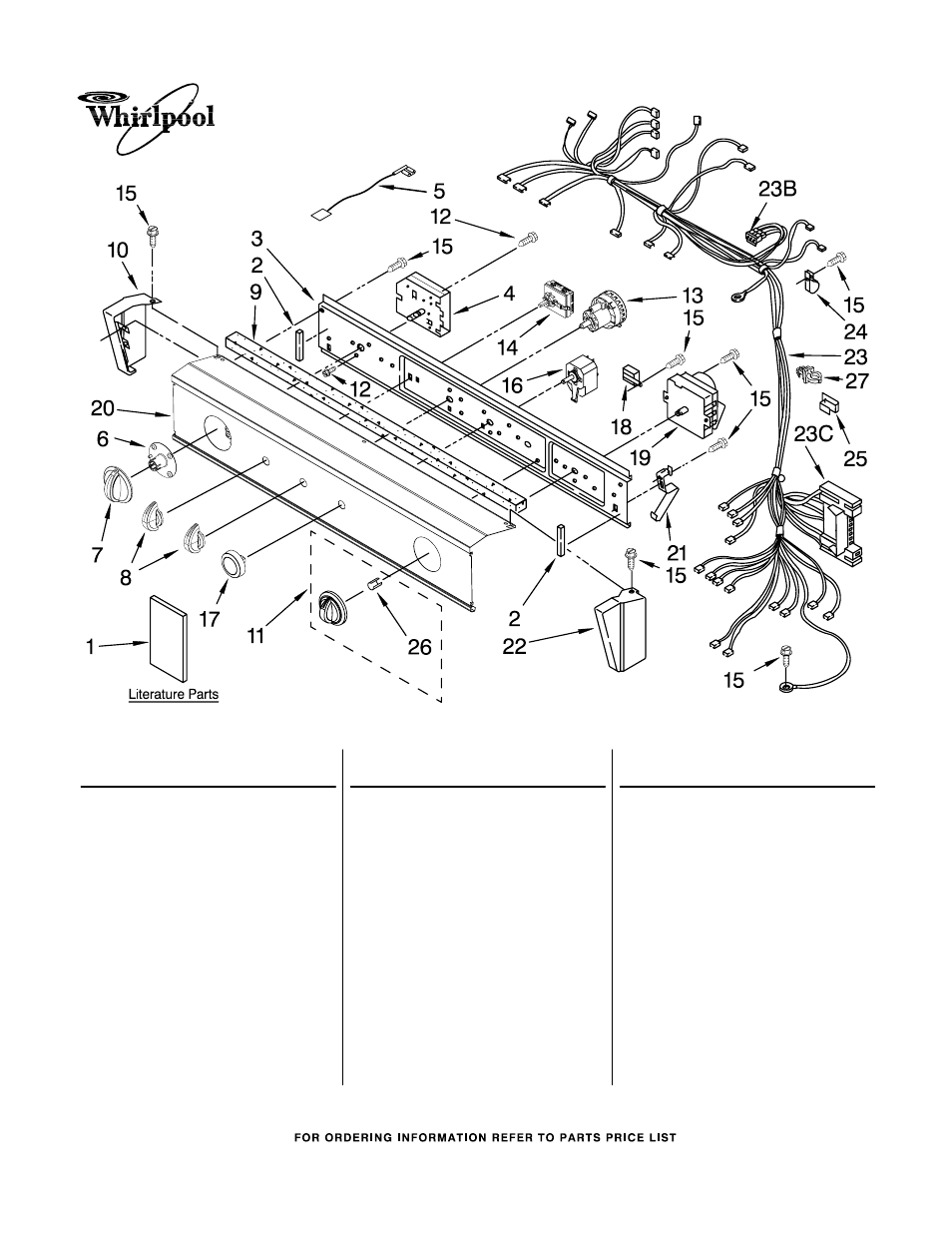

WASHER/DRYER CONTROL PANEL PARTS

For Model: WET3300SQ0

(Designer White)

4−07 Litho in U.S.A.(LT)

Part No. W10120216 Rev. B

WASHER/DRYER

LAUNDRY SYSTEM

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

1

Literature Parts
Installation
Instructions

W10118289 English

8578179 English

W10118304 Sheet,

Cycle Feature

W10113806 Wire Diagram
W10118487 Energy Guide

2

3390688 Spacer

Foam Pad (2)

3

8528583 Bracket, Control

(Includes Illus. 2)

4 W10113761 Timer, Washer
5 W10121648 Jumper Wire

(Timer−Buzzer)

6

8566018 Dial, (Washer)

7

8566022 Knob, Timer

(Washer)

8

8565944 Knob, Control (2)

9

8521965 Gasket, Console

10

3389464 End, Cap (LH)

11

8566061 Knob, Timer

(Dryer)

12

3400808 Screw,

10−32 x 5/16

13 W10112533 Switch, Pressure
14 W10114118 Switch,

Temperature

15

90767 Screw, 8−18 x 3/8

16

3404233 Switch,

Push−To−Start

17

8566073 Knob,

Push−To−Start

18

694419 Buzzer, Mini

19 W10113804 Timer, Dryer
20

Panel, Control

W10114898 White

21

3389453 Bracket, Hinge (2)

22

End Cap (RH)

3389456 White

23 W10119331 Harness − Dryer

23B

2154470 Receptacle,

23C

3395683 Connector

(Motor−Dryer)

24

3390604 Clamp, Harness

25

3390422 Clip, Harness (2)

26

8536939 Spring, Clip

Knob

27

2219077 Clip, Harness
