6-8

6.2.3 RS-232C

loopback test

After connector wiring as shown in the figure, the test mode is turned on.
The printer will receive data that has been transmitted by printer itself and the
test of receiving and transmitting data will be performed.

RS-232C

test

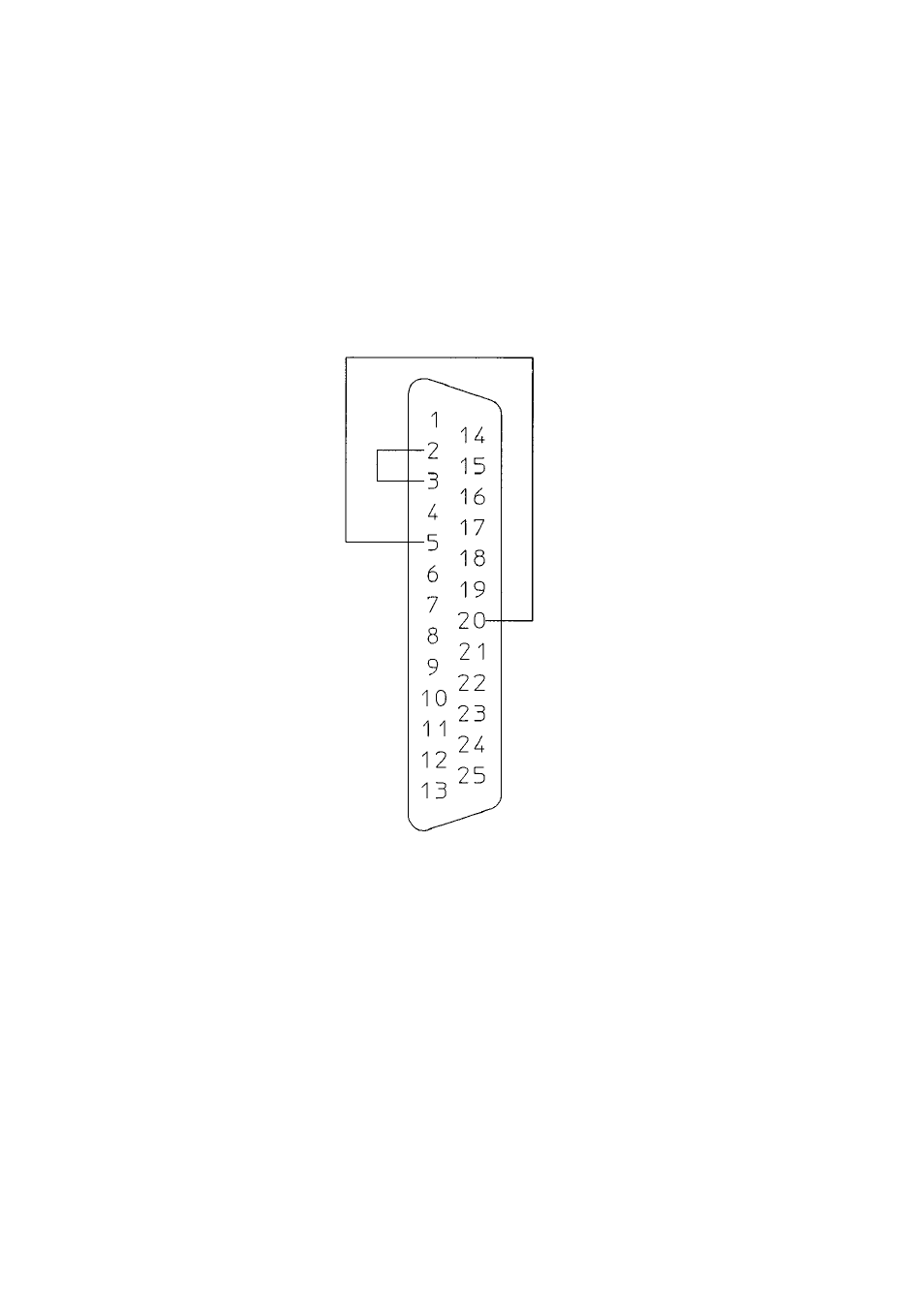

Fig. Loopback test
