3-16

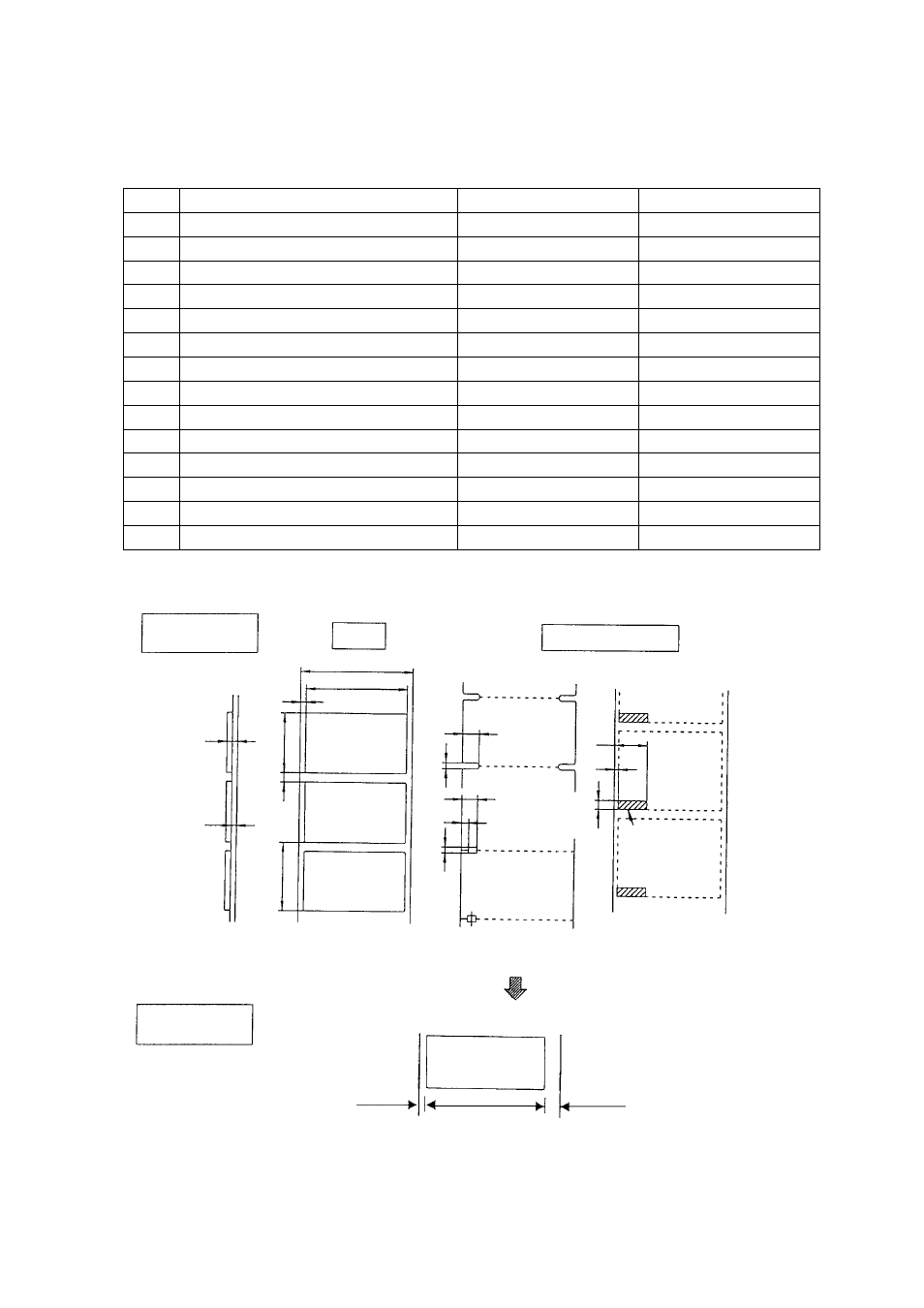

3.9.3 Specification of paper (for adjustable sensor)
Minimum value mm (in) Maximum value mm (in)
A Label width 25.40 (1.0) 118.00 (4.65)
B Liner width 25.40 (1.0) 118.00 (4.65)
C Label left-side edge position 0 2.54 (0.10)
D Label paper-gap length 2.54 (0.10) 2539.00 (99.96)
E Label length 12.70 (0.50) 2539.00 (99.96)
F Label pitch 12.70 (0.50) 2539.00 (99.96)
G Liner thickness 0.06 (0.0025) 0.125 (0.0049)
H Paper thickness 0.06 (0.0025) 0.25 (0.01)
I Notch right-side edge position 3.6 (0.14) 60.8 (2.39)
J Notch left-side edge position 0 57.2 (2.25)
K Notch length 2.54 (0.10) 17.80 (0.70)
L Black line right-side edge position 15.00 (0.59) 66.5 (2.62)
M Black line left-side edge position 0 51.5 (2.02)
N Black line width 3.18 (0.125) 17.80 (0.70)
Note:
· If paper has both label paper-gap and black-line, choose the paper-gap sensor.
· Fanfold uses the paper-gap sensor.
Size of paper
Printing area
Direction of paper feed
Black-line (back)
OD value: 1.5 or
more
Ink containing
carbon
Printing
area
Label Continuous paper
Notch detection Black-line detection
Use of paper-gap sensor Use of paper-gap sensor Use of black-line sensor
H
G
B
A
C
I
I
L
M
J
F
D
E
K
K
N
2.5mm 104.0mm (11.5mm)
Left-side
margin Printing area Right-side
margin
