EX-TREME 330 3-D ARF
carburetor.

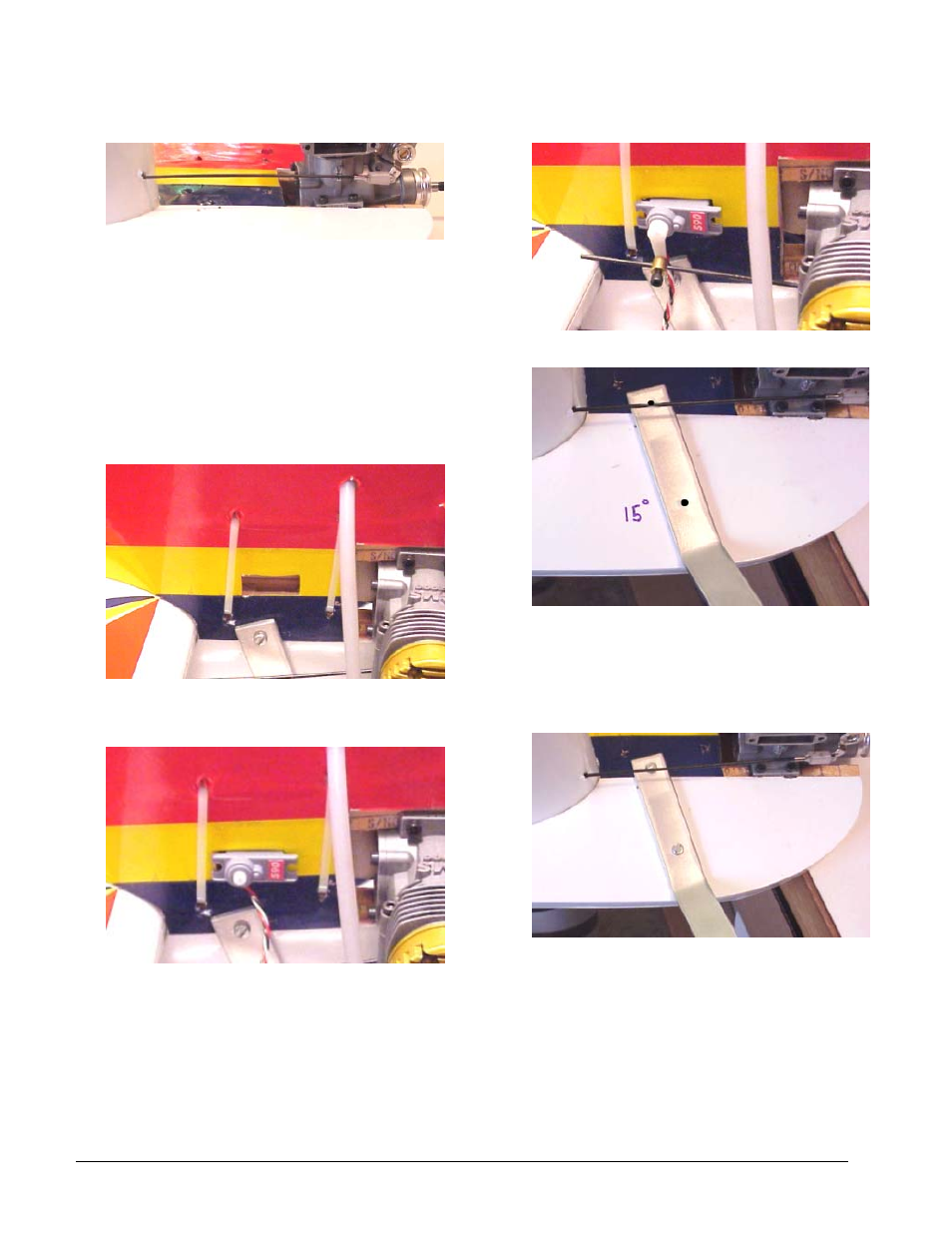

29. Drill a small hole in the leading edge of the wing
for the throttle control rod to exit, then slide a
control rod to the servo, with the threaded end at
the carb. Use a clevis on the threaded end to
mount to the carb.
30. Install an “EZ” connector on the outside position
of the servo wheel, then adjust and secure the
throttle rod in the connector. Adjust the position
of the rod and connector to achieve the proper
throw on the carburetor.
31. As an option, you can use a micro servo on the
throttle. Remove the covering from the area just
behind the engine with a sharp hobby blade.
32. Secure the servo with the screws supplied.
33. Use a servo horn as is described above.
34. Position the landing gear on the side of the fuse
with the top of the gear approximately 1” from
the LE of wing and the first bend of the gear just
above the bottom of the fuse. Angle the gear
approximately 15 degrees and mark through the
holes.
